Grill or roast generous amounts of food on the 56cm (22' 1 diameter chrome plated rack
Durable black vitreous enamel bowl and lid
■
■
Twin vent system for heat control
Removable ash catcher
■
Handy storage rack and wheels for portability
■
■
Assembled dimensions (mm): 910 W x 860 H x 580 D
FOR OIJJDOOR USE ONLY
A _
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET
�
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE
DO NOT OPERATE THE APPLIANCE INDOORS
DO NOT OPERATE IN AN ENCLOSED AREA. ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY
MINIMUM CLEARANCES FROM COMBUSTIBLE MATERIALS: 3 METRES
is a registered trademark of: Sitra Group Australia Pty Ltd -www.sitro.com.au & Aber Living, Hamilton, N.Z - www.charmate.co.nz
4911-06/18

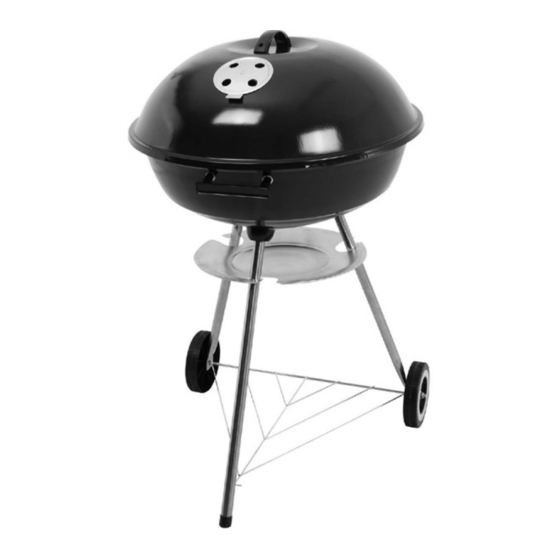

Maverick
Kettle Barbecue
Model No. CM155-016
Important: Retain these instructions for future use.
€harmate.
Advertisement
Table of Contents
Summary of Contents for SITRA Charmate Maverick
- Page 1 DO NOT OPERATE IN AN ENCLOSED AREA. ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY MINIMUM CLEARANCES FROM COMBUSTIBLE MATERIALS: 3 METRES €harmate. is a registered trademark of: Sitra Group Australia Pty Ltd -www.sitro.com.au & Aber Living, Hamilton, N.Z - www.charmate.co.nz Important: Retain these instructions for future use. 4911-06/18...
- Page 2 IMPORTANT SAFETY WARNINGS h.,,. READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY £ll BEFORE ASSEMBLING AND OPERATING YOUR KETTLE BARBECUE. A WARNING • Only use this barbecue on a hard. level, non-combustible. stable surface (concrete, ground etc.) capable of supporting the weight of the barbecue.
- Page 3 A WARNING • When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen close lid and vents to suffocate the flame. Do not use water to extinguish grease fires. • Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. When opening the lid, keep hands, face and body a safe distance from hot steam and flame flare-ups.
- Page 4 Exploded View Parts List , - - A Description , , , - - 1 2- - ..' ' Lid Handle Air Vent , - -3 Lid Hanger Cooking Grill Charcoal Grate Firebowl Handles Leg Support...
- Page 5 Hardware Assembly Instructions For Easiest Assembly: No. Description Diagram • To avoid losing any small components or hardware, assemble your product on a hard level surface that M4X25 Screw does not have cracks or openings. You may wish to lay down a blanket or similar, to avoid possible damage to the finish during assembly.
- Page 6 Assembly Instructions , , - : I: , _ ..Step1 Attach the lid handle (1) and lid hanger (4J to the lid (3J, using two screws W,nuts (El. Step2 Step& Attach the air vent (2J in the air hole of the lid (3), using Attach the body handles (BJ to the firebowl (7), using four screw (HJ and nut (El.
- Page 7 Operating Instructions Tips for Better Cooking and Longer Barbecue Life This appliance is designed for use only with quality charcoal briquettes or lump charcoal. 1. To reduce flare-up keep barbecue clean, use lean cuts of meat (or trim fat) and avoid cooking on very high First Use temperatures.
- Page 8 BARBECUE RANGE Aber Living warrants the purchaser o f this product against defects in workmanship and material, for a period o f up to 1 2 months from the date o f purchase. The warranty i s non-transferable and becomes void if used for commercial or rental purposes. Warranty and purchase receipt o f this product are to be retained as proof o f purchase and must be presented if making a claim under the terms o f the Aber Living Warranty.
