Page 2 South-Tek Systems VERSION HISTORY Revision Implemented Revision Approved Approval Reason Date Date K. Mellott 7/2/2018 M. Thomas 07/02/18 Initial Release BrewBlast™ 110CPH – Specifications Nitrogen Purity 99.7+% Installation Lockable Swivel Caster Wheels Display Hours / Run / Standby / Filter Alarm / BlastOff N₂...
Page 3 South-Tek Systems --------------------------------------------------Notes--------------------------------------------------- Version: 0 Revision Date: 6/29/18 Page 3 of 18...
Page 4: Table Of Contents
South-Tek Systems TABLE OF CONTENTS 1 INTRODUCTION ....................... 5 Purpose ......................5 Audience ......................5 Important Information ..................5 2 SAFETY GUIDELINES ....................6 General ....................... 6 3 INITIAL START-UP ....................7 Electrical Connections ..................7 Nitrogen/Drain Connections ................8 Turning on the Generator for the First Time ............
Page 5: Introduction

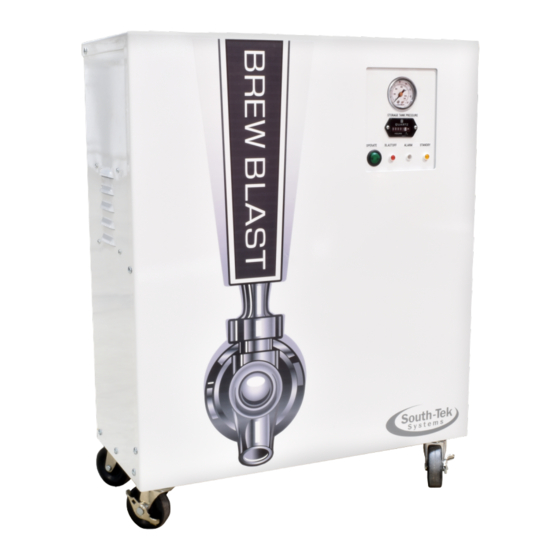

South-Tek Systems 1 INTRODUCTION 1.1 PURPOSE The BrewBlast™ 110CPH provides an economical, precise means of supplying nitrogen to “push” the cold brew coffee to the tap within café and coffee-serving establishments. South-Tek System’s line of BrewBlast™ products consist of an internal N generator and an integrated compressor.
Page 6: Safety Guidelines
South-Tek Systems 2 SAFETY GUIDELINES 2.1 GENERAL Correct use of the BrewBlast™ 110CPH is important for your personal safety and for trouble-free functioning of the BrewBlast™ 110CPH. Incorrect use can cause damage to the BrewBlast™ 110CPH or can lead to incorrect gas supply.
Page 7: Initial Start-Up
South-Tek Systems 3 INITIAL START-UP 3.1 ELECTRICAL CONNECTIONS Connect the power cord supplied with the BrewBlast™ 110CPH to the plug on the back of the system labeled “Power Supply” and plug the opposite end into a standard 120VAC/60Hz/1ø wall receptacle (preferably a designated small appliance circuit).
Page 8: Nitrogen/Drain Connections
South-Tek Systems 3.2 NITROGEN/DRAIN CONNECTIONS The outlet nitrogen port is a standard industrial quick coupler for connection to normal air hoses. A ¼” MNPT quick coupler plug is also included for connection with ¼” NPT hoses and piping. Connect by pushing the sleeve on the nitrogen outlet quick coupler while pushing the quick coupler plug into the coupler.
Page 9: Turning On The Generator For The First Time
South-Tek Systems 3.3 TURNING ON THE GENERATOR FOR THE FIRST TIME • To start the generator once electrical and plumbing connections are made, simply push the green power switch on the front of the generator to the ON(up) position. Note: On startup the generator will have a 12 second delay before the compressor operates.
Page 10: Starting & Stopping
South-Tek Systems • After the nitrogen storage tank is depleted down to the cut-in pressure (~60 PSIG) the generator will turn back on and refill the system. 3.4 STARTING & STOPPING • start generator simply push the green power switch on the front of the generator to the ON(up) position.
Page 11: System Operation
South-Tek Systems 4 SYSTEM OPERATION 4.1 INSTRUCTIONS The BrewBlast™ 110CPH is intended to be used to generate nitrogen to push coffee out of the keg. Follow the installation instructions above and only use in an approved environment. The generator generates enough nitrogen to push 110 cups per hour.
Page 12 South-Tek Systems Button” on the inside of the nitrogen generator until the “Alarm” indicator light flashes confirming the 1000-hour run timer has been reset. BlastOff™ Alarm: Included with the system is the BlastOff™ - Leak Detection System. It is a patented system in the BrewBlast™...
Page 13: System Maintenance
South-Tek Systems 5 SYSTEM MAINTENANCE Whenever doing any maintenance to the system, make sure to power down the system. Remove the front cover to gain access to the filters and alarm reset button. Annual Filter replacement kit part # FRP-001 Air Intake Filter The integrated air compressor has an air intake filter mounted on top.
Page 14 South-Tek Systems clean dry cloth to clean the filter enclosure before installing the new element. Version: 0 Revision Date: 6/29/18 Page 14 of 18...
Page 15 South-Tek Systems Particulate and Coalescing Filter The particulate and coalescing filter after the air compressor is designed to capture particulate and moisture prior to entering the rest of the system. These filters need to be replaced once per year or every 1000 hours, whichever comes first.
Page 16 Contact the factory for RMA #’s, prior to return shipment. South-Tek Systems is not liable for damages caused by normal wear and tear, water, fire, erosion, corrosion, explosion, misuse, oil/gas vapors or unauthorized modifications. South-Tek Systems is also not liable for any losses, damages, or cost of delays, including incidental or consequential damages.
Page 17 South-Tek Systems Wilmington, 28405 Version: 0 Revision Date: 6/29/18 Page 17 of 18...
Page 18 South-Tek Systems -------------------------------------------------Last Page------------------------------------------------- Version: 0 Revision Date: 6/29/18 Page 18 of 18...
