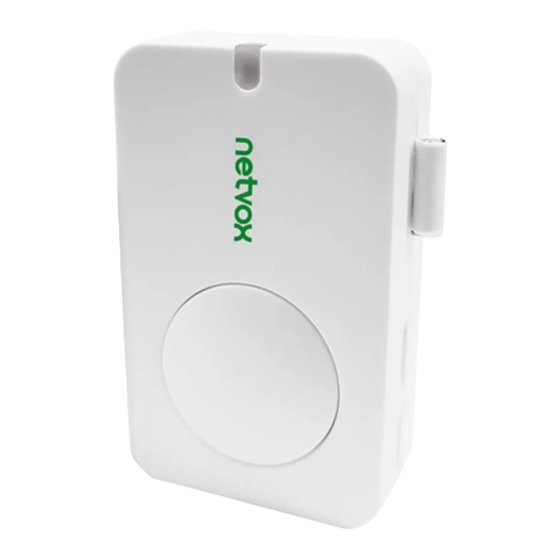

netvox R313FB User Manual

Wireless activity event counter
Hide thumbs

Advertisement

Quick Links

Download this manual
Model：R313FB
Wireless Activity Event Counter
Wireless Activity Event Counter
R313FB
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX
Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole
or in part, without written permission of NETVOX Technology. The specifications are subject to change
without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R313FB and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R313FB

Summary of Contents for netvox R313FB

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ..................... 2 2. Appearance ...................... 3 3. Main Features ....................3 4. Set up Instruction ..................... 4 5. Data Report ...................... 5 6. Installation ......................11 7. Relative Devices .................... 12 8. Important Maintenance Instruction ............... 12...

  • Page 3: Introduction

    1. Introduction The device detects the number of movements or vibrations (such as detecting the motor a few times a day). The maximum number of movements or vibrations can reach 2 times (theoretical value). The device sends the information of the number of movements or vibrations to the gateway for processing. It is compatible with LoRaWAN protocol.

  • Page 4: Appearance

    ⚫ Improved power management for longer battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations. 1. Actual range may vary depending on environment.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Insert two sections of 3V CR2450 button batteries and close the battery Power on cover Turn on Press any function key and the green and red indicator flash once. Press and hold the function key for 5 seconds and the green indicator Turn off (Restore to factory setting) flashes 20 times.

  • Page 6: Data Report

    The device report interval will be programmed based on the default firmware which may vary. The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.
  • Page 7 MaxTime 0x01 (1byte (4Bytes,Fixed ReportReq (2bytes Unit:s) (2bytes Unit:s) Unit:0.1v) 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes, Fixed 0x00) R313FB 0x50 ReadConfig Reserved 0x02 ReportReq (9Bytes, Fixed 0x00) BatteryChange Reserved ReadConfig MinTime MaxTime 0x82 (1byte (4Bytes,Fixed ReportRsp (2bytes Unit:s) (2bytes Unit:s) Unit:0.1v)
  • Page 8 Threshold Deactivetime Reserved 0x86 ThresholdRsp (2Bytes) (1Byte,Unit:1s) (6Bytes,Fixed 0x00) (3) Configure the device type to R313FB (0x02) Downlink: 0350020000000000000000 The device returns: 8350000000000000000000 (configuration succeeded) 8350010000000000000000 (configuration failed) (4) Read the current device type Downlink: 0450000000000000000000 The device returns: 8450020000000000000000 (current device type R313FB)
  • Page 9 8550000000000000000000 (configuration succeeded) 8550010000000000000000 (configuration failed) (6) Read the current device type Downlink: 0650000000000000000000 The device returns: 8650000A06000000000000 (current device type R313FB) Example for MinTime/MaxTime logic: Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime...
  • Page 10 Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Sleeping(MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and Wakes up and collects data collects data collects data collects data collects data 2.8V...
  • Page 11 Notes: (1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data. (2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value, the device reports according to MinTime interval.

  • Page 12: Installation

    6. Installation 1.Remove the 3M adhesive on the back of the Activity Detection Sensor (R313FB) is suitable for device and attach the body to the surface of a the following scenarios: ⚫Valuables (Painting, Safe) smooth object (please do not stick it to a rough ⚫Industrial Equipment...

  • Page 13: Relative Devices

    7. Relative Devices Model Function Appearance R718MBA Send an alarm when detecting vibration or movement R718MBB Count the number of vibration or movement R718MBC Count the time interval of vibration or movement 8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •...
