A. INTRODUCTION
Congratulations on purchasing a high quality BlueNova® product.
This document covers product assembly & installation, troubleshooting, safety & maintenance
instructions, storage guidelines as well as emergency & first aid procedures.
Please do not discard this document as it contains valuable information that might have to be
referenced at a later stage.
Should you have any queries, kindly contact BlueNova® Technical Support:
Office: +27 21 205 2000
B. COMPONENT DIAGRAM
A BlueNova® single unit battery requires no assembly before installation:
C. INSTALLATION
The following highlighted values have to be set on the inverter/charger. Note: Disable equalisation.
Parameter Cell V
V
4.00 V
high cut-off
V
3.51 V
high set
V
3.50 V
bypass
V
3.40 V
float
V
3.00 V
reconnect
V
2.90 V
low set
V
2.80 V
low cut-off
E-mail:
Value
12V Eq
Comment
64.0 V
16.0 V
Over voltage. Battery will isolate automatically.
100% SoC. Constant voltage set point. Charger must
56.2 V
14.1 V
pause until V
56.0 V
14.0 V
Internal set to battery for balancing.
54.4 V
13.6 V
Charger must reconnect when this voltage is reached.
48.0 V
12.0 V
Mains or generator must reconnect to charge batteries.
46.4 V
11.6 V
Inverter must switch off the load.
44.8 V
11.2 V
Under voltage. Battery will isolate automatically.
UDS House – Section 1
22 Gardner Williams Ave
Paardevlei, 7130
Product User Manual
52V Series / Single unit models
support@bluenova.co.za
is reached.
float
Office:
Technical Support:
support@bluenova.co.za
Website:
www.bluenova.co.za
+27 21 205 2000
Advertisement
Table of Contents
Related Manuals for BLUE NOVA 52V Series
Summary of Contents for BLUE NOVA 52V Series

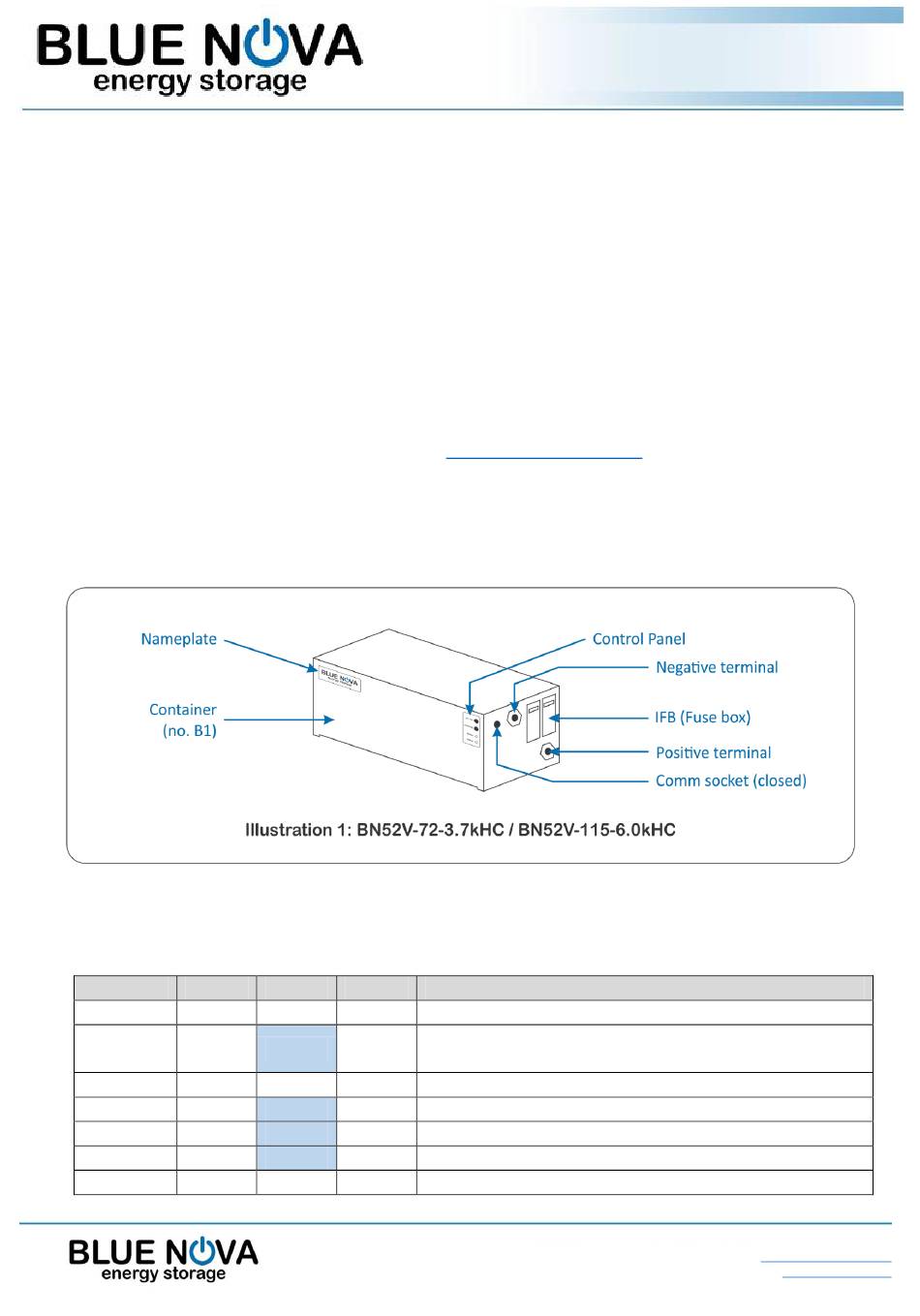

- Page 1 Product User Manual 52V Series / Single unit models A. INTRODUCTION Congratulations on purchasing a high quality BlueNova® product. This document covers product assembly & installation, troubleshooting, safety & maintenance instructions, storage guidelines as well as emergency & first aid procedures.
- Page 2 Product User Manual 52V Series / Single unit models IMPORTANT: Voltage calibration Experience has shown that some inverter/charger voltage measurement circuits are inaccurate. Compare the voltage values displayed by the inverter/charger with that of a calibrated voltmeter. If the actual voltage differs by more than 100mV from that measured by the inverter/charger, apply this difference to the highlighted values above (i.e.
- Page 3 Product User Manual 52V Series / Single unit models E. SAFETY & MAINTENANCE 1. Do not short circuit the battery terminals. 2. Do not use the battery without a BlueNova® approved integrated BMS solution. 3. Do not disassemble, pierce, cut or in any way physically alter any part of the battery.
