LDI Spaces SAFCO TASK MASTER 5113 Assembly Instructions Manual

an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com
PRODUCT WARRANTY CARD is available online at: www.safcoproducts.com

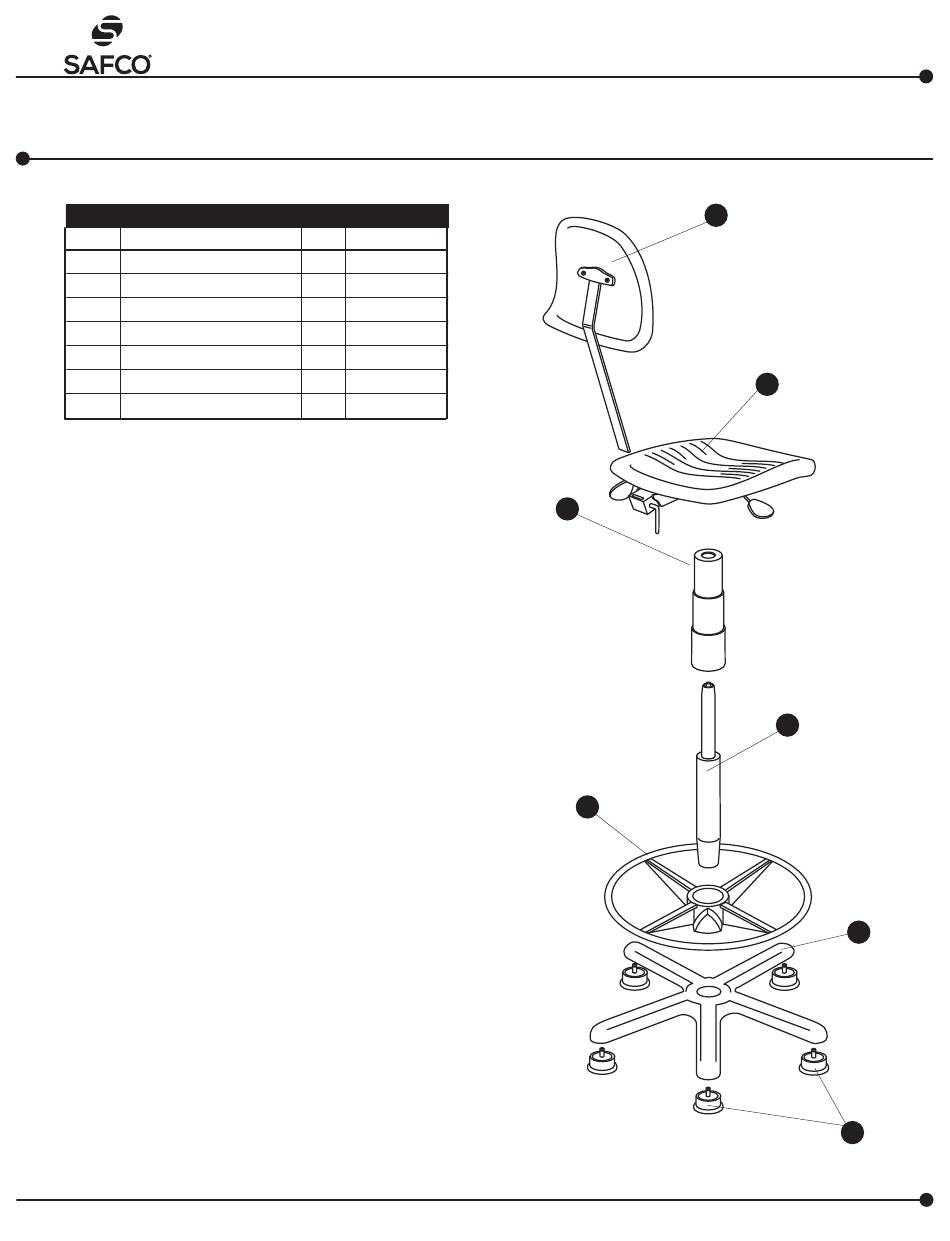

CODE DESCRIPTION
A
Glide
B
Base
C
Cylinder
D
Foot Ring
E
Dust Cover (3 pc set)
F
Seat Assembly
G
Back Assembly
Check all parts against Parts List before begin-
ning assembly. Allow all parts to warm to room
temperature prior to assembly.
1
Install a (A) Glide into each of the legs of the (B)
Base. Press fi rmly into place. Be sure the glide is
inserted completely into leg for proper stability.
2
Insert the (C) Cylinder into the base, tapered end
down. Secure the cylinder by applying a little down-
ward pressure (CAUTION: When applying down-
ward pressure, avoid plastic button at top of cylinder,
as pressure will release pneumatic lift)
3
Slide (D) Foot Ring on to cylinder (ring side up), po-
sition at desired height. Turn knob to secure. Place
(E) Dust Cover over exposed cylinder.
4
Install the (F) Seat Assembly by aligning the hole
on the underside with the shaft of the cylinder; push
down fi rmly on seat.
5
Insert the stem of the (G) Back Assembly into the
slot at the back of the seat. Use a screwdriver to
depress the push button at the bottom of the stem
and slide until the stem goes all the way through the
slot and sticks out the other side about 2". It may
be necessary to rotate the lever at the back of seat
assembly clockwise so stem will slide all the way
through the slot. Rotate the lever counterclockwise to
lock the stem.
6
Make the fi nal chair adjustments following the instruc-
tions on the reverse side.
100511337: 1 of 6; Rev A;
Rev Date 19-SEP-2016
TASK MASTER
A S S E M B L Y
TOOLS REQUIRED: Standard Screwdriver
PARTS LIST
QTY. PART NO.
5 5110-75
1 5105-04BL
1 5110-61
1 5110-56
1 5110-64
1 5113-51BL
1 5113-52BL
For questions or concerns, please call the
available Monday-Friday 7:30 AM to 5:00 PM (Central Time) (English-speaking operators)
INDUSTRIAL CHAIR
®
(19" - 27" Range)
INSTRUCTIONS
E
D
Safco Consumer Hot Line
5113
G
F
C
Registered U.S. Patent D381,823
1-800-664-0042
B
A
