Aira RONDO 350/150 Mounting Instructions

Mounting Instructions RONDO

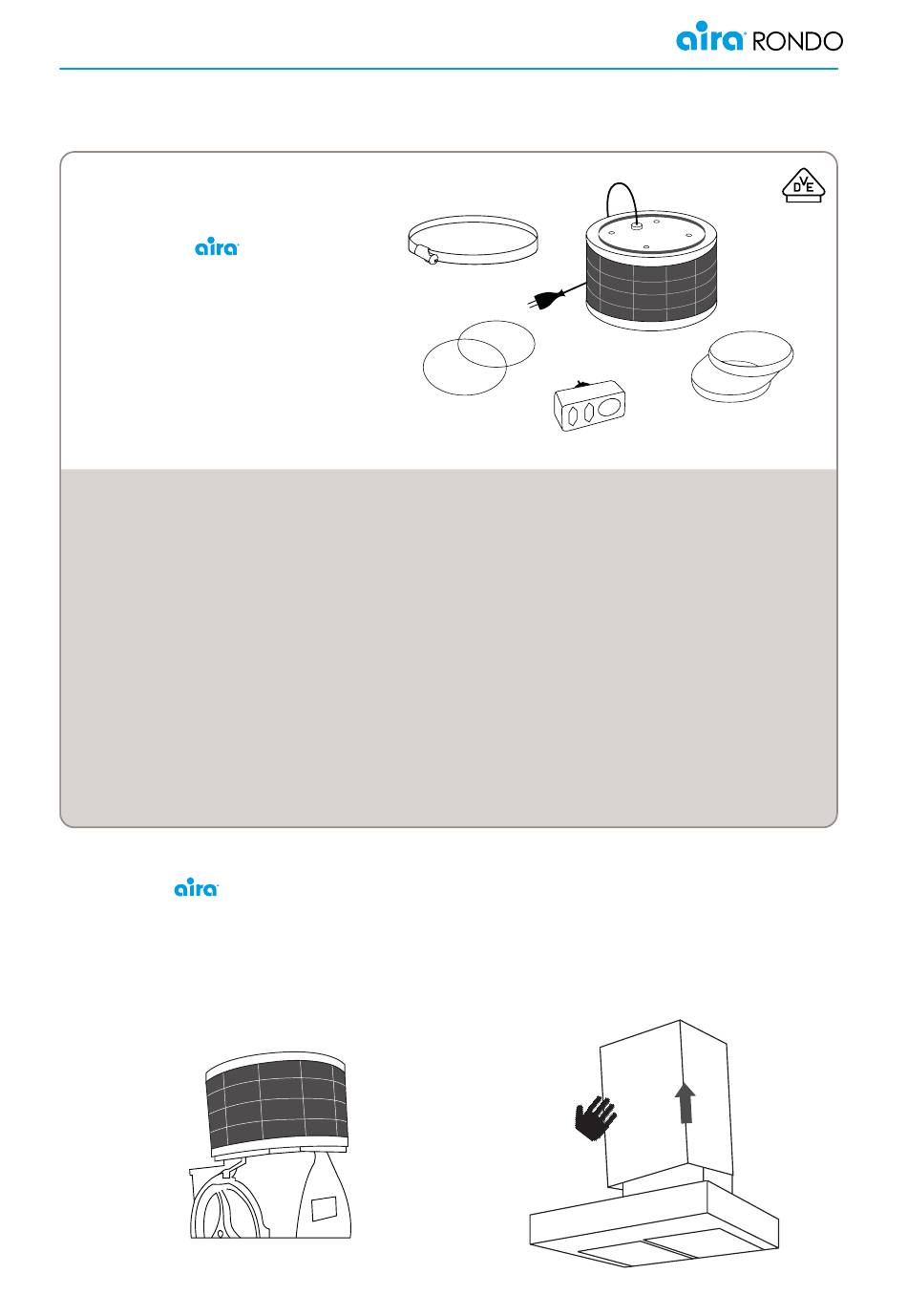

BOX CONTENT
A AVITANA®
B 2 O-rings
C triple plug adapter
D eccentric adapter
E hose clamp
Dimensions
RONDO 350/150
Ø 150x120mm
RONDO 550/150 Ø 150x180mm
RONDO 650/150 Ø 150x240mm
RONDO 400/180 Ø 180x150mm
RONDO 600/180 Ø 180x210mm
RONDO 800/180 Ø 180x270mm
RONDO 500/210 Ø 210x120mm
RONDO 800/210 Ø 210x210mm
RONDO 1000/210 Ø 210x270mm
AVITANA
®

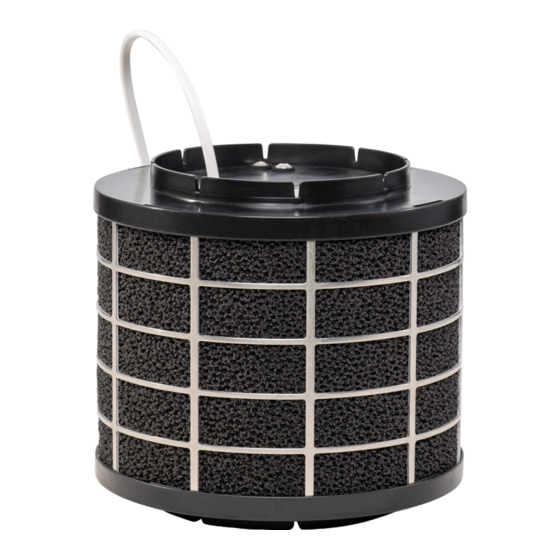

The RONDO - filter is placed on the
cooker hood motor (Fig. E). With this AVITANA® filter sys-
tem you transform your cooker hood into an air purifi-
cation unit with an absorption of all odours, viruses and
bacteria up to 98%.
Fig. E
filter module
Air output Connection
voltage
350m /h 210 - 250 V
3
550m /h 210 - 250 V
3
650m /h 210 - 250 V
3
400m /h 210 - 250 V
3
600m /h 210 - 250 V
3
800m /h 210 - 250 V
3
500m /h 210 - 250 V
3
800m /h 210 - 250 V
3
1000m /h 210 - 250 V
3
E
B
C
Connec- Article No. Weight
ting dimen-
sion
ø 120mm 8113
ø 120mm 8115
ø 120mm 8116
ø 120mm 8418
ø 120mm 8618
ø 120mm 8818
ø 150mm 8521
ø 150mm 8821
ø 150mm 8121
To install the filter, proceed as follows:
1. Remove the chimney shaft and disconnect the
hood from the mains.
7
A
D
Packing
unit
0,6kg 1 piece
0,8kg 1 piece
1,0kg 1 piece
1,12kg 1 piece
1,56kg 1 piece
1,76kg 1 piece
1,22kg 1 piece
1,66kg 1 piece
2,0kg 1 piece
