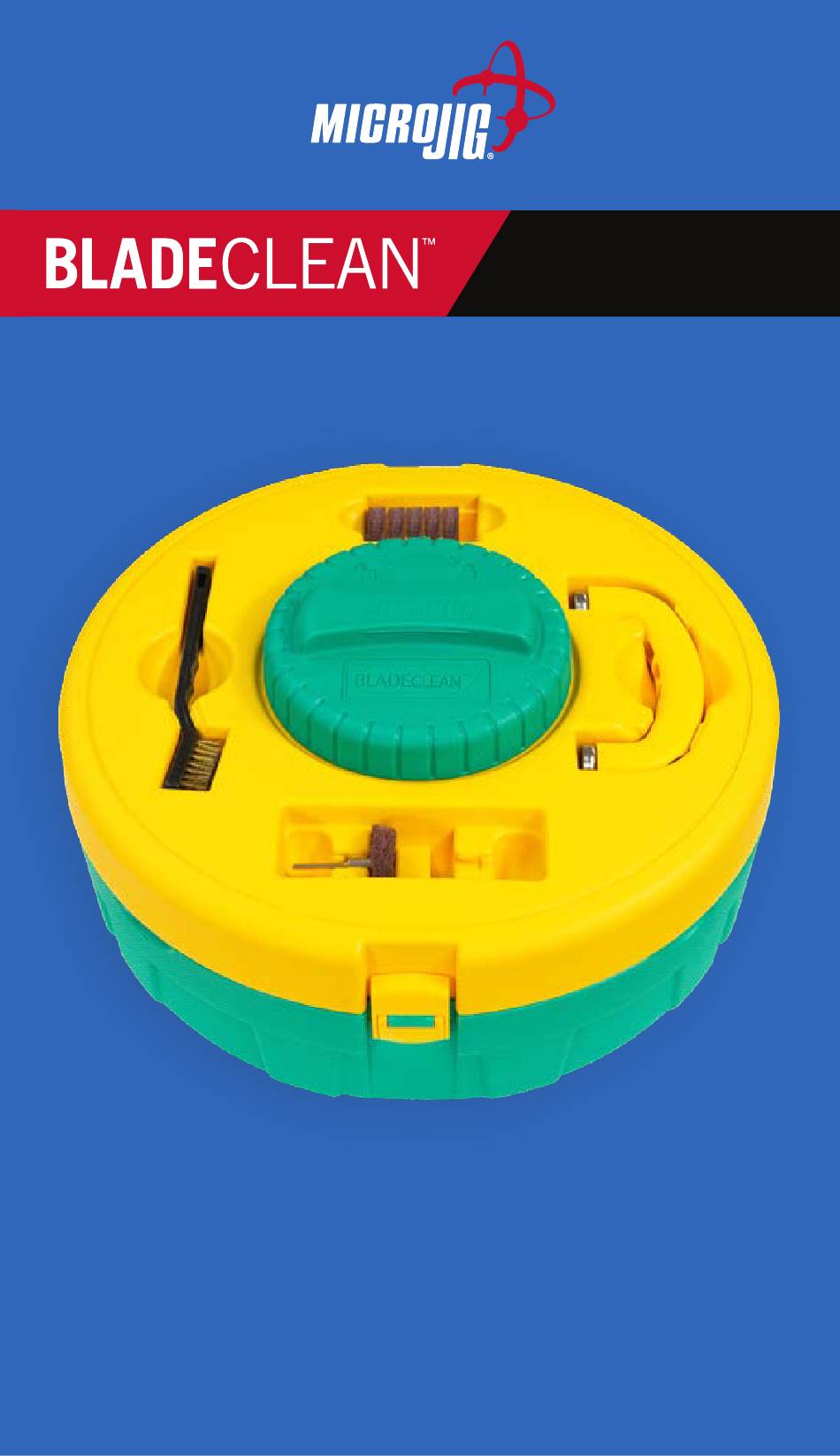

BLADE AND BIT
CLEANING SYSTEM
Instruction Manual (v1.0)
MODEL # BC-81012

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLADECLEAN BC-81012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for microjig BLADECLEAN BC-81012

Summary of Contents for microjig BLADECLEAN BC-81012

  • Page 1 BLADE AND BIT CLEANING SYSTEM Instruction Manual (v1.0) MODEL # BC-81012...
  • Page 2 12” (350mm) in diameter quickly with no mess. INSTRUCTIONAL VIDEO Scan the QR code with your smartphone camera or visit: microjig.com/bladeclean Read the Important Safety Disclaimers in this manual prior to use. Keep manual for future reference.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Components .............. 5 Precautions & Safety ..........6 Operation ............. 7-20 1 Filling Cleaning Wells ...........7-10 2 Cleaning Saw Blades ..........11-16 3 Cleaning Router Bits ...........17-20 Care & Maintenance ..........21...
  • Page 4 This page left intentionally blank.

  • Page 5: Components

    COMPONENTS INCLUDED IN THE BOX: Saw Blade Cleaning Well *BLADECLEAN Pad™ [13” (330mm), 180 grit] Large Lid with Router Bit Cleaning Well (Yellow) Router Bit Cleaning Well Lid (Green) EVA Foam Router Bit Holder Magnetic Handle *Wire Brush Rotary Tool Mandrel [Ø1/8”...

  • Page 6: Precautions & Safety

    In the event of eye contact, consult the first aid recommendations given by the manufacturer. MICROJIG Inc. assumes no liability for any medical injuries resulting from the mishandling of chemicals or misuse of any BLADECLEAN components.

  • Page 7: Operation 1

    Operation 1 FILLING CLEANING WELLS...
  • Page 8 FILLING CLEANING WELLS MIXING CLEANING SOLUTION NOTE: Cleaning solution is not included. There are a variety of options when it comes to cleaning saw blades. Avoid any corrosive or caustic chemicals, such as oven cleaner, as they may damage blades and cause skin, eye, Common, all-purpose cleaners and respiratory irritation.

  • Page 9: Filling Cleaning Wells

    FILLING CLEANING WELLS FILLING CLEANING WELLS 1.1 ROUTER BIT CLEANING WELL (YELLOW) Remove the small green lid. Fill the Router Bit Cleaning Well (yellow) up to the fill line (16-20 oz or 473-591 mL) with your mixed solution. After filling, lock the small green lid back into position.
  • Page 10 FILLING CLEANING WELLS 1.2 SAW BLADE CLEANING WELL (GREEN) Unclasp and remove the large yellow lid from the Saw Blade Cleaning Well (green), and place it on a flat surface to prevent spilling the cleaning solution inside the Router Bit Cleaning Well. Pour the remainder of the cleaning solution into the Saw Blade Cleaning Well (green).
  • Page 11 Operation 2 CLEANING SAW BLADES...

  • Page 12: Cleaning Saw Blades

    CLEANING SAW BLADES CLEANING SAW BLADES 2.1 SAW BLADES UP TO 12” (350MM) NOTE: Most blades can be cleaned in 30 seconds or less. Blades that haven’t been cleaned regularly may take more time to clean on first use. On an even surface, lay a towel flat next to the cleaning well. The towel should be at least twice as big as the saw blade, so you can fold it over the saw blade and dry both sides at once.
  • Page 13 CLEANING SAW BLADES 2.1 CLEANING SAW BLADES (CONT.) For table saws, raise the blade to its maximum height. Remove the arbor flange and nut from the saw. Using the Magnetic Handle from the large yellow lid, attach it to the blade as close to center as possible.
  • Page 14 CLEANING SAW BLADES 2.1 CLEANING SAW BLADES (CONT.) 2.1.1 Soak the Saw Blade Place the saw blade on top of the cleaning pad in the blade cleaning well. Ensure the saw blade is fully submerged and soak for 10-30 seconds. 2.1.2 One Twist Cleaning After soaking, apply slight downwards pressure and rotate the blade a quarter turn backwards (opposite to the cutting direction).
  • Page 15 CLEANING SAW BLADES 2.1 CLEANING SAW BLADES (CONT.) After one side of the blade is clean, set it flat on the towel (clean side down) and remove the magnetic handle. Fold the towel over the blade, then flip it over, so now the dirty side of the saw blade is facing down.
  • Page 16 CLEANING SAW BLADES 2.1 CLEANING SAW BLADES (CONT.) 2.1.3 Cleaning the outer edges of the carbide teeth (optional) If you would like to clean the outer edges of the carbide teeth, hold the saw blade vertically so the teeth make contact with the BLADECLEAN™...
  • Page 17 Operation 3 CLEANING ROUTER BITS...

  • Page 18: Cleaning Router Bits

    CLEANING ROUTER BITS CLEANING ROUTER BITS Attached to the underside of the small green lid, you’ll find the EVA Foam Router Bit Holder with 3 inserts for 1/2” or 12mm shank router bits, and 2 inserts for 1/4”, 6 or 8mm shank router bits. Unscrew the small green lid and insert router bits into the EVA foam cavities.
  • Page 19 CLEANING ROUTER BITS 3.1 CLEANING ROUTER BITS (CONT.) While the router bits are soaking, attach the 1-11/16” (42mm) Router Bit Cleaning Disc and Mandrel to a rotary tool (a power drill will also work). Maximum speed is 12,000 rpm. 8,000 to 10,000 rpm provides the best balance between cleaning and disc life.
  • Page 20 CLEANING ROUTER BITS 3.1 CLEANING ROUTER BITS (CONT.) Again, remove the small green lid. The router bits can remain in the foam bit holder during cleaning. You may hold the small green lid with the router bit(s) and rest it vertically over the router bit well while cleaning.

  • Page 21: Care & Maintenance

    BLADECLEAN comes with 6 Router Bit Cleaning Discs. When replacements are needed, they are also available in packs of 14 with a mandrel at: microjig.com/bladeclean Rubber Gasket The BLADECLEAN’s large yellow and small green lids are equipped with a rubber gasket to prevent leakage, and it can be stored with the cleaning solution inside for multiple uses.
  • Page 22 This page left intentionally blank.
  • Page 23 Welcome to the Club! Get insider information and be the first to learn about new products, plans, and deals at: microjig.com/newsletter Warranty Registration Protect your investment. Register your product for an extended 3-year warranty at: microjig.com/warranty Replacement Parts Missing or damaged parts in the box? Get replacement parts ASAP.
  • Page 24 Got questions or need support? Our dedicated support team is here for you. Call or contact us to get support ASAP. +1 (855) RIP-SAFE support@microjig.com microjig.com/contact BLADECLEAN, Work Safer. Work Smarter., and MICROJIG, are registered trademarks of Micro Jig, Inc. © 2021...
