Summary of Contents for Airial MQ6002

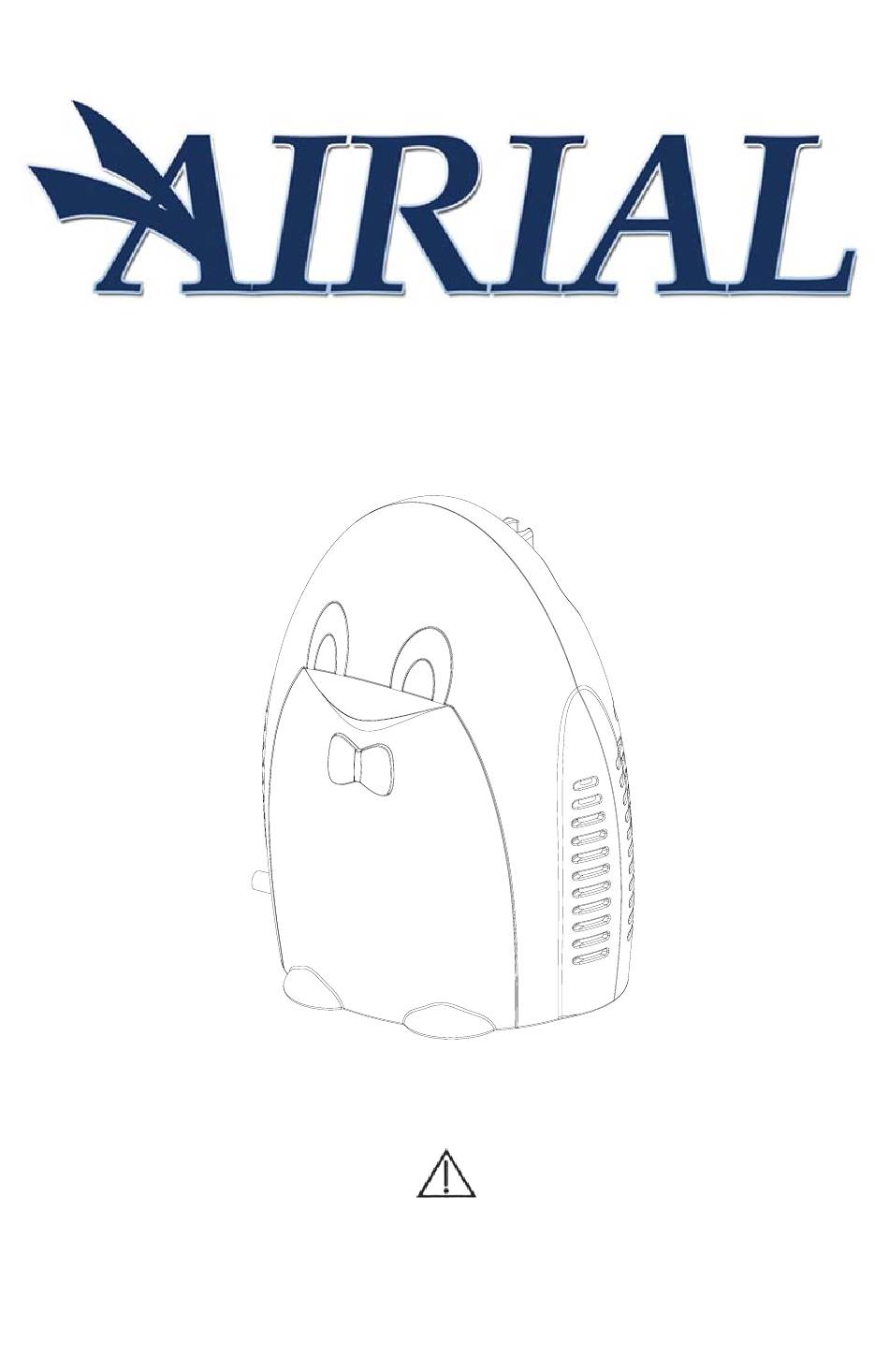

- Page 1 NSTRU Compressor Nebulizer Guidebook MODEL: MQ6002 READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE...
- Page 2 Warranty ------------------------------------------------------------------- Page 8 1. INTRODUCTION Thank you for purchasing the AIRIAL Compressor Nebulizer. This product is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages for the treatment of asthma, allergies, COPD, and other respiratory ailments. With proper care and use, it will provide you with many years of reliable treatment.
- Page 3 2. PRODUCT IDENTIFICATION 3. IMPORTANT SAFEGUARDS Note: Read all instructions carefully before use. The following basic precautions are needed when using an electrical product: Caution: Failure to read and observe all precautions could result in personal injury or equipment damage. Product cautions: 1.
- Page 4 Operating Cautions: 1. Connect this product to an appropriate voltage outlet for your model. 2. Do not run this product unattended. 3. Never operate the unit if it has any damaged parts (including power cord), or if it has been dropped or submersed in water. Promptly send it to a service center for examination and repair.
- Page 5 of the compressor. 7. Attach the interface accessory of your choice to the top section of nebulizer. 8. Plug the power cord into an appropriate electrical outlet. Make sure at this stage, the power switch is at “OFF” status. 9. Press the power switch to “ON” status to begin your prescribed treatment. Important: The compressor motor has a thermal protector, which will shut off the unit before the unit is overheated.
- Page 6 Disinfecting Please follow the following steps to disinfect your nebulizer unless otherwise specified by your physician. It is suggested that the unit is disinfected after the last treatment of the day. 1. Use one part white vinegar with three parts distilled water. Make sure mixed solution is enough to submerge the nebulizer, mouthpiece and mask.
- Page 7 7. SPECIFICATIONS Power AC 120V, 60Hz / 230V, 50Hz Current 1.5A / 0.8A Medication Capacity Particle Size 0.5 to 10 μm MMAD 4 μm Sound Level Around 60 dBA Maximum Medication capacity 13ml (cc) Average Nebulization Rate 0.2ml/min Compressor Pressure Range 25 to 42 Psi (0.17 to 0.29 Mpa) Operating Pressure Range 8 to 13 Psi (0.056 to 0.090 Mpa)
- Page 8 8. WARRANTY MEDQUIP Inc. warrants this AIRIAL Compressor Nebulizer System to be free from defects in material and workmanship for lifetime. This warranty is valid for the original purchaser only. Any alterations, abuse, misuse, or accidental damage voids this warranty. Please complete and mail back the warranty card within 1 month of purchase in order for the machine to be under warranty.
