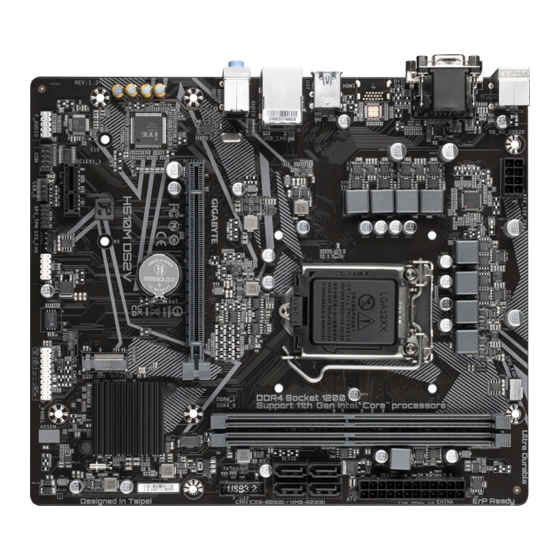

H510M DS2V
User's Manual
Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H510M DS2V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGA-BYTE TECHNOLOGY H510M DS2V

Summary of Contents for GIGA-BYTE TECHNOLOGY H510M DS2V

  • Page 1 H510M DS2V User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents H510M DS2V Motherboard Layout .................4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................

  • Page 4: H510M Ds2V Motherboard Layout

    H510M DS2V Motherboard Layout CPU_FAN KB_MS_USB ATX_12V 2X4 LGA1200 SATA3 USB_LAN H510M DS2V AUDIO PCIEX16 Realtek ® GbE LAN PCIEX1_1 ® Super I/O Intel H510 ® CODEC PCIEX1_2 USB 2.0 Hub M_BIOS CLR_CMOS Temperature sensor F_AUDIO LED_C SYS_FAN F_USB2 F_PANEL...

  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 6: 1-2 Product Specifications

    1-2 Product Specifications LGA1200 package: Š 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel ® ™ ® ™ ® Core i5 processors ™ 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel ® ™ ® ™ ® Core i5 processors/Intel Core i3 processors/Intel Pentium...
  • Page 7 Storage Interface Š 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The M2A_SB connector shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the M2A_SB connector operates at up to x2 mode. 4 x SATA 6Gb/s connectors Š...
  • Page 8 Unique Features Š Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Š Support for Xpress Install Š...

  • Page 9: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR4_1 Channel B: DDR4_2 Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed.
  • Page 11 RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Connection/Speed LED: Activity LED: Speed LED Activity LED State Description State Description Orange 1 Gbps data rate...

  • Page 12: Internal Connectors

    Internal Connectors ATX_12V_2X4 F_AUDIO F_U32 CPU_FAN F_USB1/F_USB2 SYS_FAN LED_C SPI_TPM SATA3 0/1/2/3 CLR_CMOS M2A_SB F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and The power connector possesses a foolproof design. Connect the power all devices are properly installed.
  • Page 14 DEBUG 5) LED_C (RGB LED Strip Header) PORT The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power rating of 2A (12V) and maximum length of 2m. Pin No. Definition Connect your RGB LED strip to the header. The power pin (marked LED Strip with a triangle on the plug) of the LED strip must be connected to Pin 1 (12V) of this header.
  • Page 15 S B_ 7) M2A_SB (M.2 Socket 3 Connector) The M.2 connector supports M.2 SATA SSDs or M.2 PCIe SSDs. Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Locate the proper mounting hole for the M.2 SSD to be installed and then install the mounting clip first. Step 2: F_USB3 F Slide the M.2 SSD into the connector at an angle.
  • Page 16 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 17 10) F_U32 (USB 3.2 Gen 1 Header) F_USB30 F_ U The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer. Pin No. Definition Pin No. Definition VBUS SSRX1- SSRX1+ SSTX2+ B S S SSTX1- SSTX2-...
  • Page 18 F_USB3 F 13) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Pin No. Definition Data Output Chip Select Power (3.3V) No Pin Data Input 14) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

  • Page 19: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.

  • Page 20: The Main Menu

    The Main Menu System Time Setup Menus Configuration Items Hardware Information Option Description Current Settings Quick Access Bar allows you to quickly move to the General Help, Easy Mode, Smart Fan 6, or Q-Flash screen. Advanced Mode Function Keys <f><g> Move the selection bar to select a setup menu <h><i>...

  • Page 21: Smart Fan 6

    Smart Fan 6 Use the <F6> function key to quickly switch to this screen. This screen allows you to configure fan speed related settings for each fan header or monitor your system/CPU temperature. & TUNE ALL Allows you to apply the current settings to all fan headers. & Temperature Displays the current temperature of the selected target area. & Fan Speed Displays current fan speeds.
  • Page 22 & FAN Stop Enables or disables the fan stop function. You can set the temperature limit using the temperature curve. The fan stops operation when the temperature is lower than the limit. (Default: Disabled) & FAN Mode Allows you to set the operating mode for the fan. Adjusts the fan speed linearly based on the temperature.

  • Page 23: Favorites (F11)

    Favorites (F11) Set your frequently used options as your favorites and use the <F11> key to quickly switch to the page where all of your favorite options are located. To add or remove a favorite option, go to its original page and press <Insert>...

  • Page 24: Tweaker

    Tweaker Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 25 & No. of CPU Cores Enabled Allows you to select the number of CPU cores to enable in an Intel multi-core CPU (the number of CPU ® cores may vary by CPU). Auto lets the BIOS automatically configure this setting. (Default: Auto) & Intel(R) Speed Shift Technology (Intel Speed Shift Technology) ®...
  • Page 26 d C-States Control & CPU Enhanced Halt (C1E) Enables or disables Intel CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt ® state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption.
  • Page 27 d Turbo Per Core Limit Control (Note 1) Allows you to control each CPU core limit separately. (Default: Auto) & Extreme Memory Profile (X.M.P.) (Note 2) Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance when enabled.
  • Page 28 & Memory Enhancement Settings Provides several memory performance enhancement settings: Auto, Relax OC, Enhanced Stability, Normal, Enhanced Performance, High Frequency, High Density, and DDR-4500+. (Default: Auto) & Memory Channel Detection Message Allows you to determine whether to show an alert message when the memory is not installed in the optimal memory channel.

  • Page 29: Settings

    Settings ƒ Platform Power & Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) & PEG ASPM Allows you to configure the ASPM mode for the device connected to the CPU PEG bus. This item is configurable only when Platform Power Management is set to Enabled.
  • Page 30 & ErP Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: Resume by Alarm, power on by mouse, and power on by keyboard. &...
  • Page 31 & OnBoard LAN Controller Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled. & Audio Controller Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled.
  • Page 32 & PXE boot wait time Allows you to configure how long to wait before you can press <Esc> to abort the PXE boot. This item is configurable only when Network Stack is enabled. & Media detect count Allows you to set the number of times to check the presence of media. This item is configurable only when Network Stack is enabled. ƒ NVMe Configuration Displays information on your M.2 NVME PCIe SSD if installed. ƒ SATA And RST Configuration & SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) &...
  • Page 33 & CPU PCIe Link Speed Allows you to set the operation mode of the CPU-controlled PCI Express slots to Gen 1, Gen 2, Gen 3, or Gen 4 . Actual operation mode is subject to the hardware specification of each slot. Auto lets the BIOS (Note) automatically configure this setting. (Default: Auto) & PCH PCIe Link Speed Allows you to set the operation mode of the Chipset-controlled PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each slot. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...

  • Page 34: System Info

    System Info. This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & Access Level Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level allows you to make changes to all BIOS settings;...

  • Page 35: Boot

    Boot & Bootup NumLock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) & CFG Lock Enables or disables the MSR 0xE2 function. (Default: Disabled) & Security Option Specifies whether a password is required every time the system boots, or only when you enter BIOS Setup. After configuring this item, set the password(s) under the Administrator Password/User Password item. A password is only required for entering the BIOS Setup program.
  • Page 36 & VGA Support Allows you to select which type of operating system to boot. Enables legacy option ROM only. Auto EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. & USB Support Disable Link All USB devices are disabled before the OS boot process completes.
  • Page 37 & Other PCI devices Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Do not launch Disables option ROM. Enables UEFI option ROM only. (Default) UEFI Enables legacy option ROM only.

  • Page 38: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 39: Chapter 3 Appendix

    Chapter 3 Appendix Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disc into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe."...

  • Page 40: Regulatory Notices

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: H510M DS2V Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators.

  • Page 41: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
