Fabit 44080 Instruction Manual

WASTE OIL EVACUATION SYSTEM
INTRODUCTION

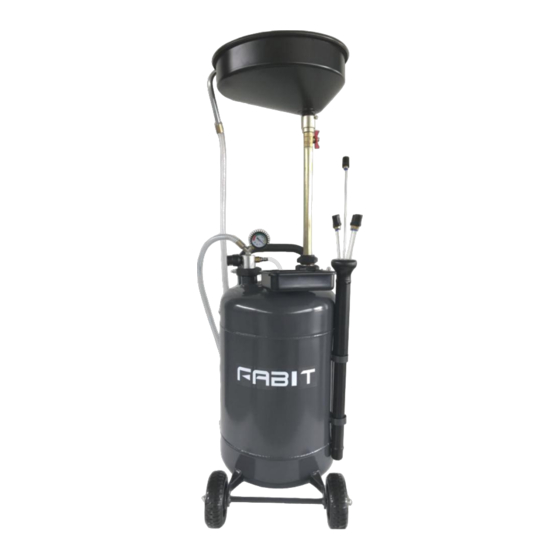

Thank you for purchasing a Fabit 44080 Oil Evacuation Unit.
The Fabit Oil evacuation Unit is suitable for the collection
and removal of waste oils only.
IMPORTANT INFORMATION
The information contained will help ensure many years of
dependable performance and trouble free operation.
Please take a few moments to read through this instruction
manual before operating your new 44080 Oil Evacuation
unit.
READ THIS INFORMATION
CAREFULLY BEFORE USE
Please retain this instruction manual for future reference.
Your safety is important to us. Please read and follow all
instructions listed below. Some of these instructions alert
you to the potential for personal injury. "Cautions"
throughout the manual advise of potential practices or
procedures which may cause damage to your equipment.
Make sure all operators have access to adequate
instructions about safe
procedures.
Do not exceed the maximum oil temperature of 120℃.
WARNING
Before attempting any repairs or maintenance of this product,
disconnect the air supply to release the air pressure.
Do not extract caustic or flamable products.
Do not modify any component of this equipment
operating and maintenance
ASSEMBLY PROCEDURE
1．Connect the wheels to the axle, tighten the
screws. Insert the castors into the holes provided
and tighten securely.
2．Insert the handle to the handle location tubes
and tighten the screws securely.
3．Insert the gravity drain tube into the top hole on
the container and tighten.
4．Attach the oil collecting pan to the top of the
tube and tighten securely.
5．Insert the plastic strainer into the oil pan and fit
the oil pan extender.
6．Attach the vacuum generator to the remaining
hole on top of the container and tighten securely.
- 1 -
http://www.fabit.cn
44080
