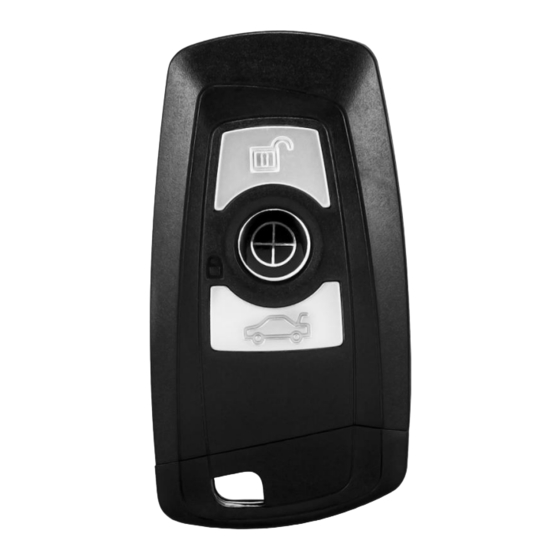

Summary of Contents for Wizard ON-K800

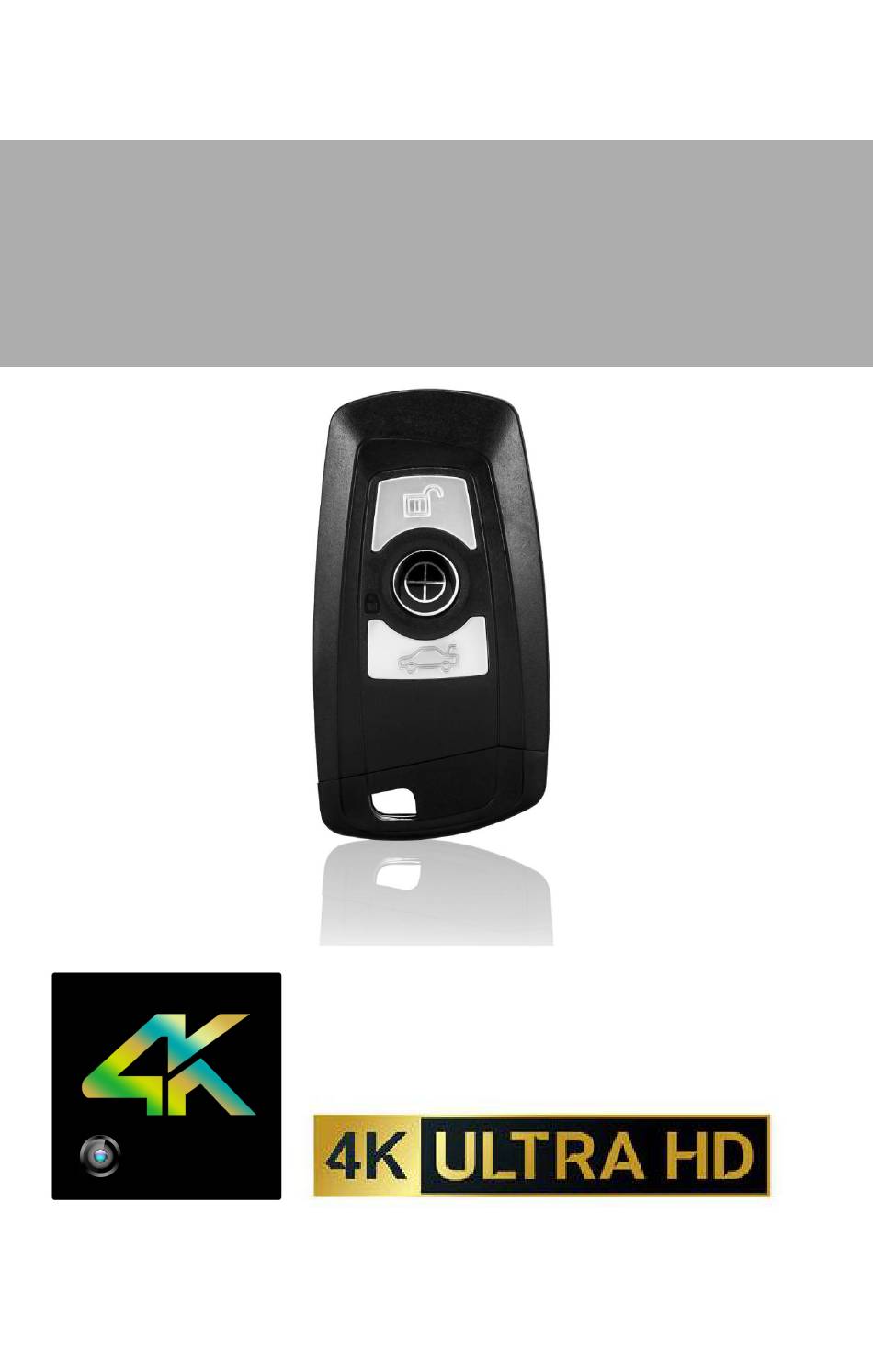

- Page 1 4K KEYFOB CAM User Manual Mini Digital Video Recorder WIFI CAM 3840*2160...
- Page 2 Please read this user manual carefully before any attempt to operate this product and keep it for your future reference. Features * IMX 179 SONY 8.0MP sensor with WDR * Frame rate up to 120fps * Quickly video recording and photo shooting * Wi-Fi Streaming Via IOS/ Android APP * 4K UHD (3840*2160@25FPS) 2.7K@30FPS/1080P@60FPS;/1080P@30FPS/720P@120FPS/...
- Page 3 Details Image Insert the memory card before using the camera Note: Please use an original C10 high speed card, FAT 32GB or above (including 32GB) memory card, please format the memory card before using.
-
Page 4: Charging Instructions
Charging Instructions 1. Please fully charge the camera before using . 2. Connect the USB cable provide to an external 5V adapter , power bank or computer to the camera for charging . 3. While the camera is charging , the camera will automatically power on ,If you do not need to use the camera while charging , please power off the camera , the light keeps on . - Page 5 Power on / Power off the camera 1. To power on the camera , hold and press the “②” button for 3 seconds. The yellow led light will indicate after the camera vibrating. 2. To power off the camera , hold and press the “②” button for 3 seconds.
-
Page 6: Video Recording
Video Recording 1. Hold and press the “②” button for 3 seconds to power on the camera . The yellow led light will indicate after the camera vibrating. 2. Press the “③” button one time to start recording after vibrating, recording is indicated with a flashing light. - Page 7 Turn on/off the indicator led light 1. Hold and press the “②” button for 3 seconds to power on the camera . The yellow led light will indicate after the camera vibrating. 2. Then hold the “①” button for 3 seconds , all indicators turn off after vibrating.
-
Page 8: App Download
APP Download Please download the “ 4k cam ” app before using the camera in wifi mode . 4K Cam App 4K Cam Download from App Store Download from Play Store ( IOS) ( Android ) 1. Scan the QR Code to download APP 2. -
Page 9: Wifi Mode
WIFI mode 1. Hold and press the“②” button for 3 seconds to power on the camera . The yellow led light will indicate after the camera vibrating. 2. Hold the “③” button for 3 seconds. The camera change to WIFI mode after vibrating. At this time, the blue indicator flashes slowly. - Page 10 4. Open the APP "4K CAM " to add connected device Click: “WIFI Connect” to add the camera into the app device listing. This APP can only add up to 3 cameras. Note: After connecting successful , the blue indicator with a solid led.
- Page 11 About the APP Delete device Downloaded Downloaded Images Replay Videos Replay Exit Camera Settings...
- Page 12 Quantity of Resolution Electricity selection Memory Card Confirm Images/Videos Button Replay Shooting / Recording Switch Browse photos/ videos in memory card Click the share button to download the photos and videos in smart Camera phone setting Menu Note: In WIFI mode , The camera only accept shooting and record on APP .
-
Page 13: Time Setting
Time setting 1. Connect the camera to WIFI Mode , then the camera will automatically synchronize the phone system time. 2. Time does not need to be reset unless battery is exhausted. Video and photo Replay There are three ways to replay the videos and images . 1. -
Page 14: Product Specification
Product specification Lens angle: 75 ° Minimum 1 Lux illumination: Video format: Video compression H.264 (Advanced Edition) format: 4K25FPS:3840*2160; 2.7K30FPS:2720*1520; 1080P60FPS; Video resolution: 1808P30FPS; 720P120FPS; 720P60FPS Video frame rate: 25fps-120fps Photo format: Photo resolution: 30M.20M.14M.10M.7M.5M.4M Memory: Micro SD support 32 - 128GB USB interface: USB 2.0 Charging voltage:... -
Page 15: Camera Reset
Camera Reset Reset the camera when it does not operate normally , Use a pin to poke into the reset hole. Click one time the reset button . the camera will power off , the reset is done . Turn on the camera to operate it again. -
Page 16: Important Reminders
Precautions (1) When the device is under video recording status, the body will heat, which is normal. To ensure heat dissipation, please use this device in the well ventilated environment. Do not wrap this device when use it. (2) Do not place the device in the damp working environment. The device is not waterproof.
