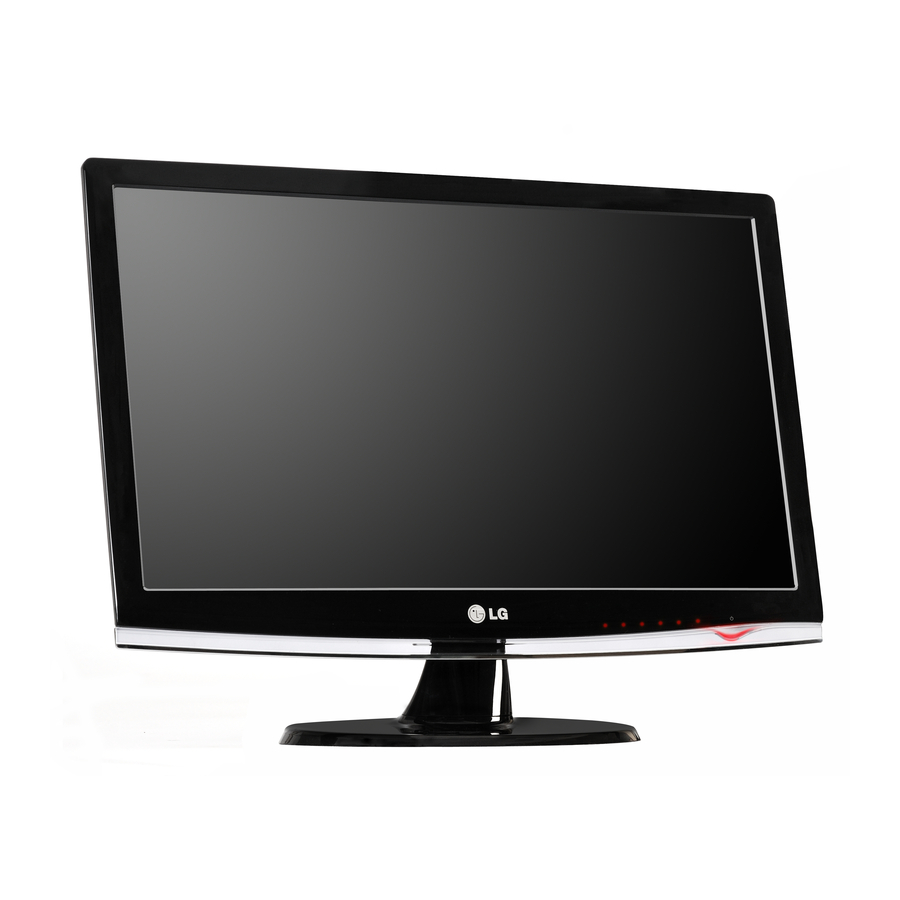

LG W1953S-PF User Manual

Hide thumbs

Advertisement

M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.
User's Guide
W1953S
W2053S
W2253S

Advertisement

loading

  Related Manuals for LG W1953S-PF

  Summary of Contents for LG W1953S-PF

  • Page 1 ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service. User’s Guide W1953S W2053S...
  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation.
  • Page 4: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth. Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.
  • Page 5: Disassembling The Stand

    Connecting the Display Disassembling the stand Put a cushion or soft cloth on a flat surface. Change your lock on the product as it follows and turn it in the arrow direction. If you can't release the stand base even the locking rib is at a release position, Please push the indicated rib down and retry it.
  • Page 6: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort. Tilt Range: -5˚~15˚...
  • Page 7: Using The Computer

    Connecting the Display Using the Computer Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect D-sub Cable (PC) Connect D-sub Cable (Mac) NOTE This is a simplified representation of the rear view. This rear view represents a general model;...
  • Page 8: Using The Cable Holder

    Connecting the Display Using the cable holder (This feature is not available in all models.) Cable holder...
  • Page 9: Front Panel Controls

    Control Panel Functions Front Panel Controls Control Button Button MENU Button Function Use this button to enter CINEMA MODE,AUTO BRIGHT,TIME CONTROL,LIVE SENSOR,SMART items, for more information,refer to page A16. Use this button to enter EZ ZOOMING, 4:3 IN WIDE, PHOTO EFFECT items, for more information, refer to page A17-A18.
  • Page 10 Control Panel Functions Control Buttons Button AUTO/SET Button Power Button Power Indicator Light sensor Function Use these buttons to select or adjust functions in the On Screen Display. For more information, refer to page A19. Use this button to select an icon in the On Screen Display.
  • Page 11: Screen Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.
  • Page 12: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu CINEMA MODE AUTO BRIGHT TIME CONTROL LIVE SENSOR SMART EZ ZOOMING 4:3 IN WIDE NORMAL PHOTO GAUSSIAN BLUR EFFECT SEPIA MONOCHROME...
  • Page 13 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 14 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE PICTURE MENU : Exit : Decrease : Increase SET : Select another sub-menu COLOR COLOR MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To adjust the brightness of the screen. BRIGHTNESS To adjust the contrast of the screen.
  • Page 15 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING TRACKING MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To move image left and right. HORIZONTAL To move image up and down. VERTICAL To minimize any vertical bars or CLOCK stripes visible on the screen background.
  • Page 16 On Screen Display(OSD) Selection and Adjustment Main menu SETUP SETUP MENU : Exit : Adjust : Adjust SET : Select another sub-menu If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.
  • Page 17 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the smart button on the right bottom of the monitor. Main menu CINEMA MODE AUTO BRIGHT TIME CONTROL LIVE SENSOR SMART Sub menu It focuses better on the moving picture in selected area.
  • Page 18 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the FUN button on the right bottom of the monitor. Main menu EZ ZOOMING 4:3 IN WIDE Sub menu EZ Zoom lowers the display’s resolution in single-step increments.
  • Page 19 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu PHOTO EFFECT Description - NORMAL: The PhotoEffect function is disabled. - GAUSSIAN BLUR: This option is to add the effect to the screen that the dark and sharp image becomes brighter and more blurred.
  • Page 20 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the the monitor. Menu Name Icons Sub-menu Name Main menu MENU : Exit : Move SET : Select To adjust the USER sub-menu function,press the AUTO/SET Button. MENU : Exit : Decrease : Increase...
  • Page 21: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power indicator flickering? Do you see an "OUT OF RANGE" message on the screen? Do you see a "CHECK SIGNAL CABLE"...
  • Page 22: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is incorrect. On the screen background, vertical bars or stripes are visible. Any horizontal noise appearing in any image or characters are not clearly portrayed. Important Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed.
  • Page 23: Unrecognized Monitor

    Troubleshooting Display image is incorrect The screen color is mono or abnormal. The screen blinks. Have you installed the display driver? Have you installed the display driver? Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.
  • Page 24: Specifications

    Specifications Display 18.5 inches (47.0 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 47.0 cm 0.300*0.300 mm pixel pitch Horizontal Freq. Sync Input Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug&Play DDC 2AB Power On Mode Sleep Mode...
  • Page 25 Specifications 20 inches (50.8 cm) Flat Panel Active matrix-TFT LCD, Anti- Display Glare coating Visible diagonal size: 50.8 cm 0.0922(H)*0.2766(V) mm pixel pitch Horizontal Freq. Sync Input Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug&Play DDC 2AB Power On Mode...
  • Page 26 Specifications 21.5 inches (54.6 cm) Flat Panel Active matrix-TFT LCD, Anti- Display Glare coating Visible diagonal size: 54.6 cm 0.248*0.248 mm pixel pitch Horizontal Freq. Sync Input Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug&Play DDC 2AB Power On Mode...
  • Page 27: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) W1953S Display Modes (Resolution) 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1360 x 768 W2053S Display Modes (Resolution) 720 x 400 640 x 480 640 x 480 800 x 600...
  • Page 28 Specifications W2253S Display Modes (Resolution) 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1680 x 1050 1920 x 1080 Indicator MODE On Mode...
  • Page 29 Digitally yours...
