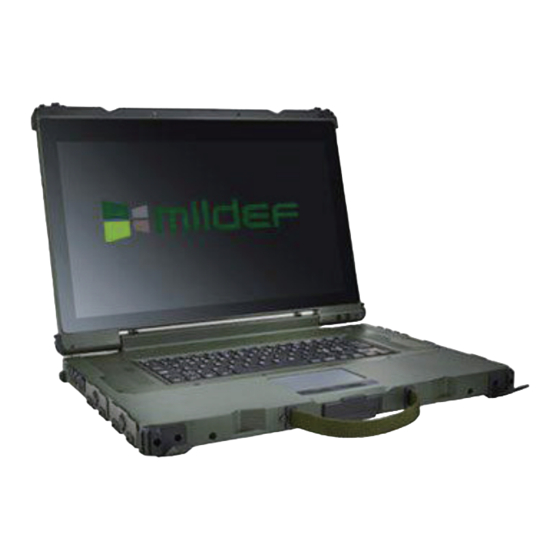

MilDef Crete RB14 User Manual

MilDef Crete RB14 User Manual

Workstation computer
Table of Contents

Advertisement

Quick Links

Workstation Computer
RB14
User's Guide
BC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MilDef Crete RB14

  • Page 1 Workstation Computer RB14 User’s Guide ○...
  • Page 2 They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. Copyright© 2020, MilDef Crete Inc. All rights reserved. Trademarks All other brand and product names are trademarks or registered trademarks of...
  • Page 3 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. RF exposure warming This equipment must be installed and operated in accordance with provided instructions and antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 4 Federal Communications Commission regulatory compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Important: Changes or modifications to this product not authorized by MilDef could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. In order to maintain compliance with FCC regulations, compliant peripheral devices and shielded cables must be used with this equipment. CE Declaration of Conformity The device is hereby confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating...
  • Page 6 Power Conservation This workstation consumes less power compared to conventional consumer workstations. The power consumption may be further reduced by properly configuring the Power Management Setup. It is recommended that the power saving features be enabled even when not running on battery power. Power Management features can conserve power without degrading system performance.
  • Page 7 Battery Precautions  Only use batteries designed for this workstation. Using incompatible battery types may cause explosion, leakage or damage to the workstation.  Do not remove the battery from the workstation while the workstation is powered on.  Do not continuously use a battery that has been dropped, or that appears damaged (e.g.
  • Page 8 Environmental Information, Material Safety & Recycling All materials used in the manufacturing of this equipment are recyclable or environmentally friendly. Please recycle the packing materials in accordance with local regulations at the end of the product's service life. Notice:  The equipment may contain insignificant amount of hazardous substances for health and environment below control level.
  • Page 9: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ..............8 CHAPTER ONE - GETTING STARTED........10 ....................10 NPACKING ..................10 UICK PERATION ................12 PPEARANCE VERVIEW CHAPTER TWO - OPERATING INFORMATION ....... 18 ....................18 ORKPLACE .................... 18 UGGEDNESS ..............19 ORK WITH OWER UTTON...
  • Page 10 Intel ® I210 Gigabit Network Connection Sub-Menu ........46 Intel ® Ethernet Connection (7) I219-LM Sub-Menu ........47 ..................48 HIPSET PCH-IO Configuration Sub-Menu ..............48 ..................49 ECURITY HDD Security Configuration Sub-Menu ............49 Security Boot Sub-Menu ................51 ....................
  • Page 11: Chapter One - Getting Started

    Getting Started Chapter One - Getting Started Unpacking The following components are along with your workstation. If there is any missing or damaged, please notify the dealer immediately.  Workstation Unit  AC Adapter  AC Power Cord  Utility DVD ...
  • Page 12: Quick Operation

    Getting Started Quick Operation  Open the battery cover, insert the battery, and secure the battery cover by tightening the screw.  Connect the AC adapter with the workstation and start charging the battery for at least 10 minutes.  Turn ON the workstation by pressing the power switch.
  • Page 13: Appearance Overview

    Getting Started Appearance Overview Display and Base 1. Embedded Antennas (Optional): GPS, WiFi/ Bluetooth x 2 2. LED Indicators 3. Power Button (Black) 4. Touchpad 5. Left-click and Right-click Chapter One - 12...
  • Page 14 Getting Started Right View Battery Optional 3 SATAIII SSD Optional 4 SATAIII SSD USB 3.1 Gen. 2 x 2 Optional GLAN x1 GLAN x 1 Chapter One - 13...
  • Page 15 Getting Started Left View 1. Microphone (Mini Jack) x 1 Audio output (Mini Jack) x 1 Line-in Jack (Mini Jack) x 1 2. USB 3.1 Gen. 2 x 1 3. USB 3.1 Gen. 2 x 1 (Fast Charging) 4. Standard 1 SATAIII SSD Optional 2 SATAIII SSD...
  • Page 16 Getting Started Rear View (Military 2 pin) 1. DC-in Conn. 2. Display Port x 1 3. VGA x 1 4. Serial DB9 x 2 (Default: COM1~2) 5. Optional Serial DB9 x 2 (Default: COM3~4) Chapter One - 15...
  • Page 17 Getting Started Front View 1. Optional Smart Card Reader Chapter One - 16...
  • Page 18 Getting Started Bottom View 1. 2 2. 1 3. D/U Port Chapter One - 17...
  • Page 19: Chapter Two - Operating Information

    Operating Information Chapter Two - Operating Information Workplace A clean and moisture-free environment is preferred. Make room for air circulation. Remember to avoid areas from:  Sudden or extreme changes in temperature.  Extreme heat.  Strong electromagnetic fields (near television set, motor rotation area, etc.).
  • Page 20: Work With Power Button

    Operating Information Work with Power Button The device is equipped with a heater kit to enable work under low temperature. The heater will heat up the LCD to the temperature for booting up the system. Also, the heater will constantly monitor LCD temperature. Once the temperature becomes lower, the heater will heat up again to maintain the temperature for operation.
  • Page 21: Operating System

    <<<FAN – 2 malfunction, user right-hand side >>> Press any key to continue. Note:  RB14 with nVIDIA® GeForce® GTX1050 MXM Card does not support multiple monitors before entering OS, so external monitor is unable to display in BIOS. Chapter Two - 20...
  • Page 22: Shut Down

    Operating Information Shut down Directly click “Shut down” from your OS to turn OFF the power of your workstation. Before shutting down, please remember to save any unfinished works and close the applications to prevent your SSD from suffering possible data loss or damage.
  • Page 23: Sleep/Hibernate

    Operating Information Sleep/Hibernate Sleep Under “Sleep” mode, the system will temporarily save your work into the workstation’s RAM. If you want to start your workstation again, please press the power button to resume. Under Windows 10, you can enter this mode by directly clicking: Move the cursor to the lower left or lower-left corner of the screen, and then click “Settings”...
  • Page 24: Keyboard

    Operating Information Keyboard The keyboard is 83-Key full size with LED backlight. A sample layout is shown below. Function Key Combinations Description [Fn] + [F3] Decrease LCD brightness [Fn] + [F4] Increase LCD brightness [Fn] + [F5] Mute/Unmute [Fn] + [F6] Volume down [Fn] + [F7] Volume up...
  • Page 25: Led Indicators

    *When your workstation sleeps, the S3 indicator pulsates on and off slowly. Managing Solid State Drive (SSD) RB14 has 4 slots for 2.5” type/ 7mm height SATAIII SSD. One SSD was pre-installed as the standard configuration. You can have the additional SSD installed, up to four SSDs.
  • Page 26: Rtc

    Operating Information For setting up the RAID, please use the Intel® RST (Rapid Storage Technology) to lay your system foundation on RAID 0, 1, 5, 10 configurations. The are two boot modes to select, Legacy & UEFI. Please follow the steps to use RAID function: In BIOS Set Up: 1.
  • Page 27: System Manager

    Operating Information System Manager System Manager is an app which allows user to access information (System, battery), and set RF device, function keys easily. 1. System information: 2. Battery information: Chapter Two - 26...
  • Page 28 Operating Information 3. RF Device control panel: 4. Function key control panel. Chapter Two - 27...
  • Page 29 Operating Information Available Function Items List None Open/ Execute a selected file Open URL in default browser Change display output Brightness up Brightness down Volume up Volume down Volume mute Launch on-screen keyboard Launch Windows Mobility Center Launch File Explorer Note: ...
  • Page 30: Setting Wake On Lan

    Power Manager  check “Allow the workstation to turn off this device to save power” and “Allow this device to wake workstation” With MAC address of the target workstation, you can send Magic Packet to wake up your RB14 by suitable software. Chapter Two - 29...
  • Page 31: Smart Card Reader (Optional)

    Operating Information Smart Card Reader (Optional) RB14 has a smart card slot, with an embedded microcontroller, smart cards have the unique ability to store large amounts of data, carry out their own on-card functions (e.g., encryption and mutual authentication), and interact intelligently with a smart card reader.
  • Page 32: Chapter Three - Managing Power

    Managing Power Chapter Three - Managing Power AC Adapter The AC adapter performs two functions:  It powers the workstation from an external AC source.  It charges the workstation battery. The adapter automatically detects the AC line voltage (100V or 240V) and adjusts accordingly.
  • Page 33: Battery

    Second priority (Left) Battery Second priority First priority (Right) Optional Multi Battery Charger (MCRW) A Multi Battery Charger is designed for the battery of RB14, with this charger, you could charge two battery packs at one time. Chapter Three - 32...
  • Page 34 Managing Power Battery Gauge You may check battery status from battery gauge in Windows. Click the power/battery icon to reveal the battery gauge window. Battery Power Saving Tips The workstation comes with an intelligent power-saving feature. You may extend the battery life by: ...
  • Page 35: Battery Recalibration

    Managing Power Battery Recalibration Battery recalibration allows a user to calibrate the GAUGE IC parameter of the battery pack. When the battery stays fully charged or in a low charge state for a long period of time, it causes the battery gauge to have some minor discrepancies.
  • Page 36 Managing Power Note:  Do not turn off the LCD and do not remove AC adapter during the recalibration.  One cycle of recalibration process indicates “Charge to Full => Start Learn Mode => Discharge => Complete Learn Mode => Charge to Full”.
  • Page 37: Power Conservation

    Power LED indicator is OFF. USB 3.1 Fast charging RB14 provides one USB 3.1 fast charging port, which means that you can have faster charging than traditional standard USB 3.1 port. The following table shows details for USB 3.1 Fast Charging information:...
  • Page 38 Managing Power Mode USB3.0 Fast Charging port Features Fast charging Power off Battery No charging Normal charging Power on Battery Normal charging Fast charging Battery Fast charging Note:  After enabling USB fast charging from USB CHARGE control in BIOS, please cold boot your workstation to activate this function.
  • Page 39: Chapter Four - Bios Setup

    BIOS Setup Chapter Four - BIOS Setup Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options and [+/-] to modify them. When finished, move to “Exit” and press [Enter] then confirm save by pressing [Y]. Main Menu Aptio Setup Utility Main...
  • Page 40: Advanced Menu

    BIOS Setup Advanced Menu Aptio Setup Utility Main Advanced Chipset Security Boot Save & Exit CPU configuration ► Parameters CPU Configuration ► PCH-FW Configuration ►Trusted Computing ► RF Device Control ► EC Thermal Control →← : Select Screen ↑↓: Select Item ►...
  • Page 41: Cpu Configuration Sub-Menu

    BIOS Setup Feature Options Description Network Stack Disabled Network Stack Settings Configuration Enabled Disabled Enable Disable, Option Configuration execution settings, etc. Enabled Intel ® I210 Configure Gigabit Ethernet device Gigabit Network parameters Connection Intel ® Ethernet Configure Gigabit Ethernet device Connection parameters I219-LM...
  • Page 42: Pch-Fw Configuration Sub-Menu

    BIOS Setup PCH-FW Configuration Sub-Menu Aptio Setup Utility Advanced Configure ME FW Version Management Engine ME Firmware Mode Technology ME Firmware SKU Parameters AMT BIOS Features [Disabled] ►AMT Configuration ►Firmware Update Configuration →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt.
  • Page 43: Rf Device Control Sub-Menu

    BIOS Setup RF Device Control Sub-Menu Aptio Setup Utility Advanced Device Control RF Device Control Setting GSM STATUS Not Present GPS STATUS Present [Enabled] BT STATUS Present BLUETOOTH [Enabled] →← : Select Screen WLAN STATUS Present ↑↓: Select Item WLAN [Enabled] Enter: Select –/+: Change Opt.
  • Page 44: Ac In Boot Control Sub-Menu

    BIOS Setup AC In Boot Control Sub-Menu Aptio Setup Utility Advanced AC In Boot Setting AC In Boot AC In Boot Control [Disabled] →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 45: Battery Recalibration Sub-Menu

    BIOS Setup Battery Recalibration Sub-Menu Aptio Setup Utility Advanced Battery Recalibration Utility Calibration Frequency Battery Capacity Battery Charge Mode Battery Learning Mode : Select Screen →← Note: Only support single battery recalibration in the ↑↓: Select Item same time, while the Utility is executing, please don’t Enter: Select close the LCD and don’t disconnect the AC adaptor.
  • Page 46: Intel ® Bios Guard Technology Sub-Menu

    BIOS Setup Intel ® BIOS Guard Technology Sub-Menu Aptio Setup Utility Advanced Enable/Disable Intel Intel BIOS Guard Support [Disabled] BIOS Guard Support. →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 47: Csm Configuration Sub-Menu

    BIOS Setup CSM Configuration Sub-Menu Aptio Setup Utility Advanced Enable/Disable CSM Compatibility Support Module Configuration Support. CSM Support [Disabled] →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 48: Intel ® Ethernet Connection (7) I219-Lm Sub-Menu

    BIOS Setup Intel ® Ethernet Connection (7) I219-LM Sub-Menu Aptio Setup Utility Advanced Click to configure the PORT CONFIGURATION MENU network device port. ►NIC Configuration Blinks LEDs PORT CONFIGURATION INFORMATION UEFI Driver: →← : Select Screen Adapter PBA: ↑↓: Select Item Chip Type Enter: Select PCI Device ID...
  • Page 49: Chipset Menu

    BIOS Setup Chipset Menu Aptio Setup Utility Main Advanced Chipset Security Boot Save & Exit PCH Parameters ► PCH-IO Configuration →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 50: Security Menu

    BIOS Setup Security Menu Aptio Setup Utility Main Advanced Chipset Security Boot Save & Exit Secure Boot Password Description Configuration If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
  • Page 51 BIOS Setup Setting Password Once you set HDD passwords successfully, you must enter user password to boot in the future. The master password provides an alternative entry in case the user password is lost. Clearing the master password in BIOS setup will also clear the current user password.
  • Page 52: Security Boot Sub-Menu

    BIOS Setup Security Boot Sub-Menu Aptio Setup Utility Security Secure Boot feature is System Mode Setup Active if Secure Boot is Enabled. Platform Key Secure Boot [Disabled] (PK) is enrolled and Not Active the system is in User mode. mode Secure Boot Mode [Custom] change...
  • Page 53: Boot Menu

    BIOS Setup Boot Menu Aptio Setup Utility Main Advanced Chipset Security Boot Save & Exit Set the system boot Fixed Boot Order Priorities order. Boot Option #1 [UEFI Hard Disk: Windows Boot Manger] Boot Option #2 [UEFI CD/DVD] Boot Option #3 [UEFI USB Device] →←...
  • Page 54: Save & Exit Menu

    BIOS Setup Save & Exit Menu Aptio Setup Utility Main Advanced Chipset Security Boot Save & Exit Reset the system after Save Options saving the changes Save Changes and Reset Discard Changes and Reset Default Options Restore Defaults →← : Select Screen ↑↓: Select Item Boot Override Enter: Select...
  • Page 55: Chapter Five - Drivers And Applications

    Drivers and Applications Chapter Five - Drivers and Applications The Utility DVD includes all the drivers for the installed devices in your workstation. Please consult the dealer if there is any driver missing. Also, through Device Manager in Windows, you are able to perform “Driver Update” or check if there are still drivers for the devices needed to be installed.
  • Page 56: Chapter Six - Specifications

    Specifications Chapter Six - Specifications Platform Intel® Coffee Lake Platform Processor Intel® Xeon® E-2176M Processor Chipset Intel® CM246 Chipset Memory Max. 64GB Industrial grade DDR4 SO-DIMM x 4, 2400MHz ECC/ non ECC Graphics  Intel® UHD Graphics P630  Optional nVIDIA® GeForce® GTX1050 4GB graphic add-on card Display ...
  • Page 57: Storage

    Specifications Storage  2.5” SATAIII SSD  Interface: SATAII  Height:  Industrial grade Note:  The SSD supports hot swap but not for the one with the Operating System.  Standard: 1 SATAIII SSD (Left side) Optional: SATAIII SSD (Left side) SATAII SSD (Right side) Keyboard ...
  • Page 58: I/O Ports

    Specifications I/O Ports Left:  Audio/Line-in/Microphone x 1  USB 3.1 Gen. 2 (Type A) x 2 Right:  GLAN RJ45 x 1  Optional 2 GLAN x1  USB 3.1 Gen. 2 x 2 Rear:  DC-in Conn. (Military 2 pin) ...
  • Page 59: Power

    Specifications Power AC Adapter:  AC Input: 100 - 240V  Frequency: 50/60Hz  DC Output: 19V/10.5A  Maximum Power: 200 Watts DC-in:  Standard DC-in 19V  Optional DC-in 12~32V (BVA) Battery Pack (BRWB3B) :  Type: Lithium Ion battery ...
  • Page 60: Certifications

    Specifications Certifications CE, FCC, WEEE, REACH, RoHS2.0, IP65, MIL-STD-810G, Optional MIL-STD-461G, Optional G.A. Dimensions and Weight  Dimensions: 436 (L) x 328 (W) x 52 mm (H)  Weight: 7.04 kg Note:  Weight includes DRAM x 4, WiFi/BT Module, GPS, 2nd GLAN card, batteryx2, SSD x1, BVA, MXM, COM3/4, Smart Card Reader (Battery pack 330g, SSD 61g) ...
  • Page 61: Chapter Seven - Optional Devices

    Optional Devices Chapter Seven - Optional Devices Graphics nVIDIA® GeForce® GTX1050 4GB graphic add-on card GPU: NVIDIA GeForce GTX1050 NVIDIA® CUDA™ Cores: Core clock: 1354MHz Memory Size: 4GB GDDR5 Memory Clock: 7.0 Gbps Memory Interface Width: 128-bit Max. Board power: Form Factor: MXM graphics module version 3.1, Type A Dimension:...
  • Page 62: Trust Platform Module (Tpm2.0)

    Optional Devices Trust Platform Module (TPM2.0) There is an optional Trust Platform Module (TPM2.0) equipped with this workstation for users to strengthen the security. With TPM, users are able to encrypt the folders and files directly and make the important file be more secure and be with an additional protection. In other words, your TPM-encrypted files are basically protected with two layers.
  • Page 63: Multi Battery Charger (Mcrw)

    Optional Devices Multi Battery Charger (MCRW) The Multi Battery Charger is designed for the battery of RB14, with this charger, you could charge two battery packs at one time. Electronic characteristics  DC Input Range: 12 ~ 32V with BVA ...
  • Page 64: Chapter Eight - Maintenance And Service

    Maintenance and Service Chapter Eight - Maintenance and Service Cleaning ALWAYS turn OFF the power, unplug the power cord and remove the battery before cleaning. The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth.
  • Page 65: Rma Service

    Maintenance and Service RMA Service If troubleshooting steps are unsuccessful, consult your dealer for RMA. Shipping instructions: Remove any personal disks or other media. Use the original shipping container and packing materials, if possible. If the original packing materials are not available, wrap the equipment with soft material (e.g.
