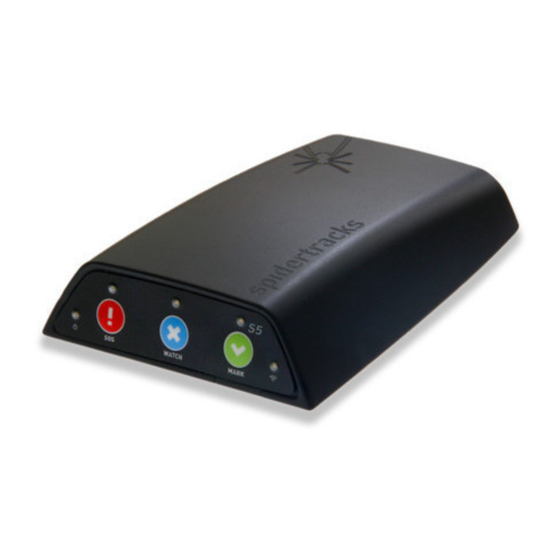

Please follow these steps for testing the correct operation of a Spider Tracks Limited
Spider S5 (6000.S5) unit.
1. Power the unit and wait for the Green LED on the left of the unit to show power and
a GPS fix (right amber LED). The unit requires a good view of the sky. The first point
will be sent when the right LED turns green.
o Green Power LED
o Amber Signal LED
o Green Signal LED
2. View location of Spider in spidertracks website showing green position report with
correct time (UTC and local). Leave it going for a period long enough for at least
three position reports to be sent; check position reports come in at your set time
interval.
o Green position report
o UTC time / Local time correct
o Reporting time interval correct
3. Press the mark button once, twice, three times, and four times to send mark one
through 4. Allow a 30 second time interval between each mark. Go to the tracks
page on spidertracks website and view the points of interest (spider icon) to
ensure the mark button (1 – 4) have been received.
o Mark one received
o Mark two received
o Mark three received
o Mark four received
4. Press the Watch button on the unit. Check Watch on position report shown in the
points of interest in the website. Check position report is Blue.
o Watch G r e e n LED on
o Blue position report on website
o Watch on message received in points of interest
5. Press the Watch button to turn Watch off. Wait for LED to stop flashing. Check
Watch off report shown in website.
o Watch LED turns off
o Watch off message received by website
