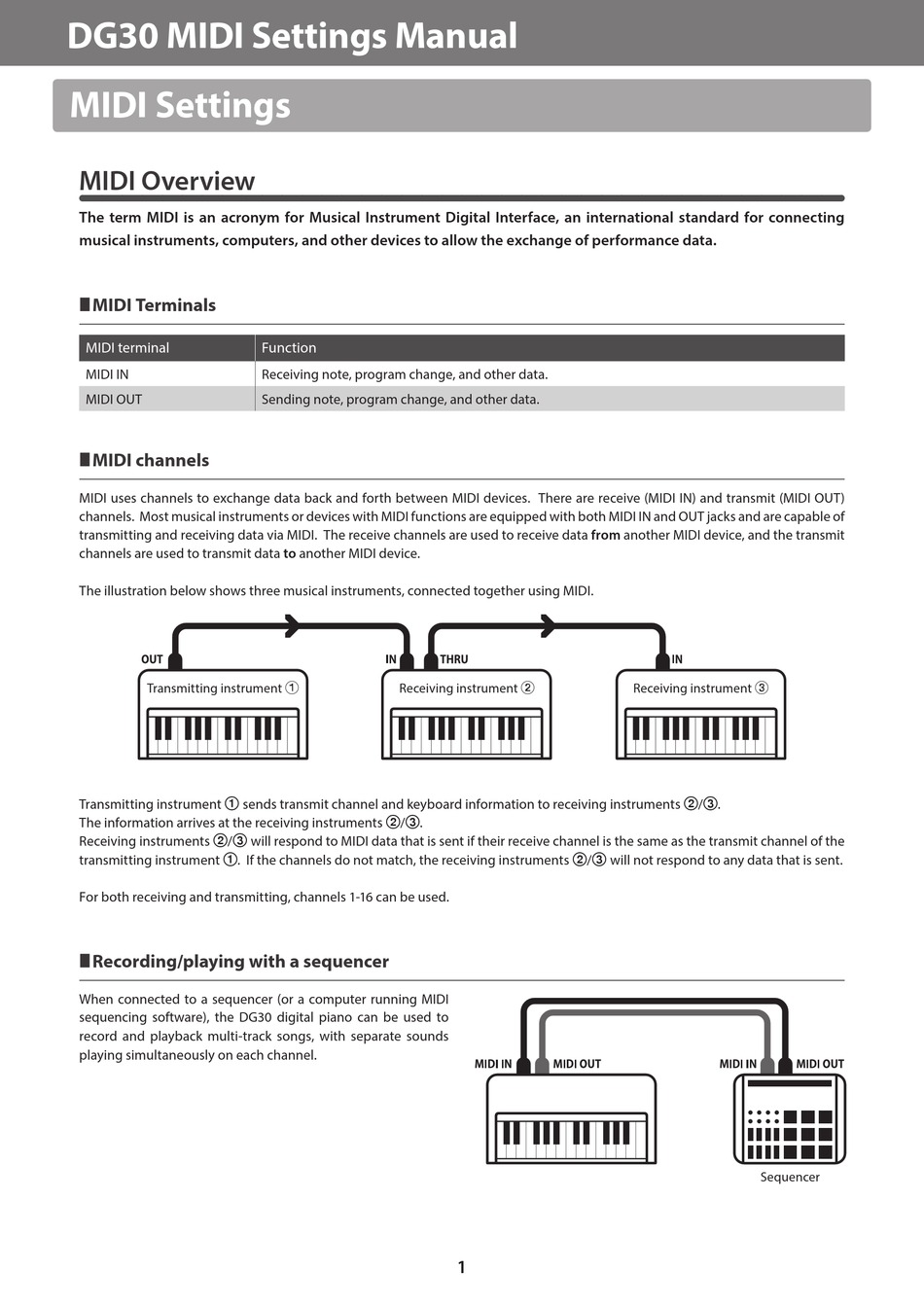

DG30 MIDI Settings Manual
MIDI Settings
MIDI Overview
The term MIDI is an acronym for Musical Instrument Digital Interface, an international standard for connecting
musical instruments, computers, and other devices to allow the exchange of performance data.
 MIDI Terminals
MIDI terminal
MIDI IN
MIDI OUT
 MIDI channels
MIDI uses channels to exchange data back and forth between MIDI devices. There are receive (MIDI IN) and transmit (MIDI OUT)
channels. Most musical instruments or devices with MIDI functions are equipped with both MIDI IN and OUT jacks and are capable of
transmitting and receiving data via MIDI. The receive channels are used to receive data from another MIDI device, and the transmit
channels are used to transmit data to another MIDI device.
The illustration below shows three musical instruments, connected together using MIDI.
Transmitting instrument a
Transmitting instrument a sends transmit channel and keyboard information to receiving instruments b/c.
The information arrives at the receiving instruments b/c.
Receiving instruments b/c will respond to MIDI data that is sent if their receive channel is the same as the transmit channel of the
transmitting instrument a. If the channels do not match, the receiving instruments b/c will not respond to any data that is sent.
For both receiving and transmitting, channels 1-16 can be used.
 Recording/playing with a sequencer
When connected to a sequencer (or a computer running MIDI
sequencing software), the DG30 digital piano can be used to
record and playback multi-track songs, with separate sounds
playing simultaneously on each channel.
Function
Receiving note, program change, and other data.
Sending note, program change, and other data.
Receiving instrument b
1
Receiving instrument c
Sequencer
