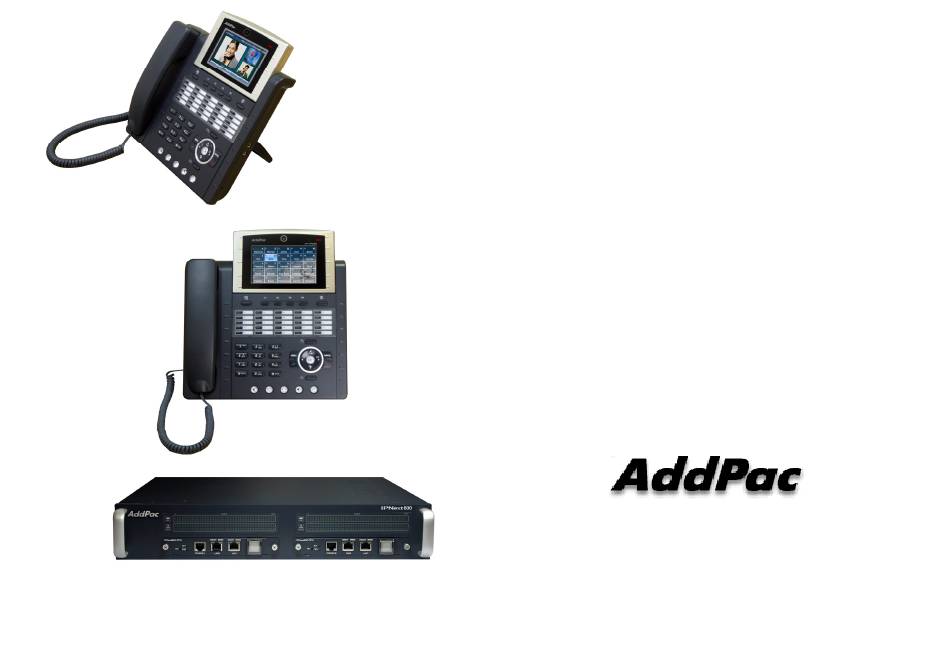

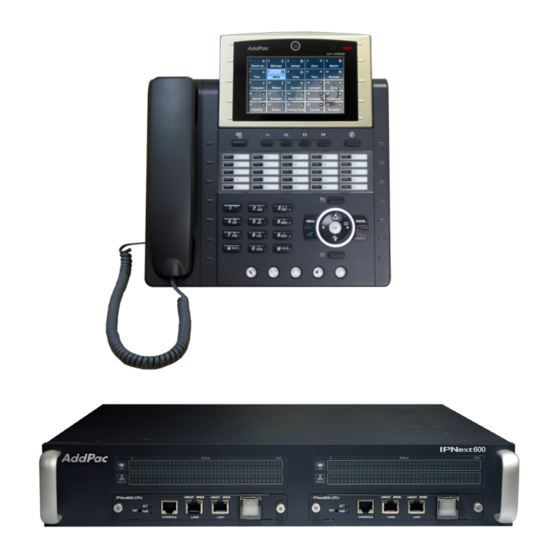

- Page 1 AP-VP250 BcN IP Video Phone High Performance Broadband Convergence Network IP Video Phone Solution User Presence Features AddPac Technology IPNext600 IP-PBX 2009, Sales and Marketing www.addpac.com...
- Page 2 Contents • Overview • IP Telephony Network Diagram for User Presence Service • AP-VP250 User Presence Feature • AP-VP250 User Presence UI – Presence Server Input – Presence Service Enable • Presence Server Login Success – Speed Button Profile Select •...
- Page 3 • Support User Presence Information • Support two or more Speed Button Profile List • Support Speed Button Interface • Speed dialing service • Support User(Phone Number) Presence Information on LCD Screen and • Editable global speed button profile, and Save in Phone www.addpac.com...
- Page 4 IP Telephony Network Diagram for User Presence Service MS-Window based Smart Messenger IPNext Call Manager with SSCP Presence Server function SSCP Network Network SSCP SSCP(Smart Service Control AP-VP250 Protocol) SSCP AP-VP250 AP-VP250 www.addpac.com...
- Page 5 AP-VP250 User Presence Feature • AP-VP250 Supports – User Login and Logout Feature – Presence Server Setup • Maximum 5 Presence Server Setup • Enable/Disable Connection to Presence Server – Select Profile • Get Speed Button Profile (Global Profile) from Presence Server •...
- Page 6 • Speed Button view in Map type and List type • Speed Button Delete, Modify • Represent User Presence Information on OSD in real-time • AP-VP250 Phone Book itself Supports – Group Create, Modify, Delete – Contact Add, Delete, Modify –...
- Page 7 AP-VP250 User Presence UI www.addpac.com...
- Page 8 – Input Presence Server IP address and Port number to Connect, maximum 5 server info enable – Support IPv4, IPv6 address – Terminal try to connect to the first server, if it fails, terminal try to connect to next Presence Server www.addpac.com...
- Page 9 Save All Input Mode • Presence Setup – Presence Function enable/disable – Presence Server Num : the number of Presence Server in Presence Server List (This Can’t be editable by user) – User Id, Password for Presence Server Login www.addpac.com...
- Page 10 • After input Login Information, Press OK – Login result popup on the bottom – Icon Change on right side of the top – If Login is success ,“Login Success” Message will appear on the bottom of the screen www.addpac.com...
- Page 11 Speed Button Profile Select Button Profile AddPac Sales AddPac HardWare Team AddPac Software Team Private BackSpace Save All Input Mode • After connect to Presence Server, Terminal get Speed Button Profile List from Presence Server – User can Get Speed Button Profile which you select in list –...
- Page 12 Software Team Private BackSpace Save All Input Mode • When Speed Button Profile Update Notify comes – Icon Change to – After select Speed Button Profile, user get Updated Speed Button Profile from Presence Server and Icon Change back to www.addpac.com...
- Page 13 Show Button Profile in Map Type. The layout is same as Speed Button Keys on the KeyPad • Icon means – In Idle Status : place of phone number – In Call Status : Lamp and LED turn on or blink. Each means difference status. www.addpac.com...
- Page 14 Hook off(Jim) Hook off(Jim) Lamp, LED blink Hook off Status (Jim) Request call connect Call Connected(Jim) Lamp, LED on Call Connect Status (Jim) Hook on Hook on Hook on (Jim) Lamp, LED return to Idle Status Hook on Status (Jim) www.addpac.com...
- Page 15 – If you want to call to Cindy, move to number 3(Cindy), press OK or Send key – Enable delete or modify speed button (Button Profile will change to ‘Private’) – Icon represents the place of a phone number www.addpac.com...
- Page 16 Speed Button Modify Modify Button Name Number 2000 Type Home BackSpace Save All Input Mode • Modified Button Information Save in Local. • After change Phone Number, user can get presence information for new number. www.addpac.com...
- Page 17 Thank you! AddPac Technology Co., Ltd. Sales and Marketing Phone +82.2.568.3848 (KOREA) FAX +82.2.568.3847 (KOREA) E-mail sales@addpac.com www.addpac.com...
