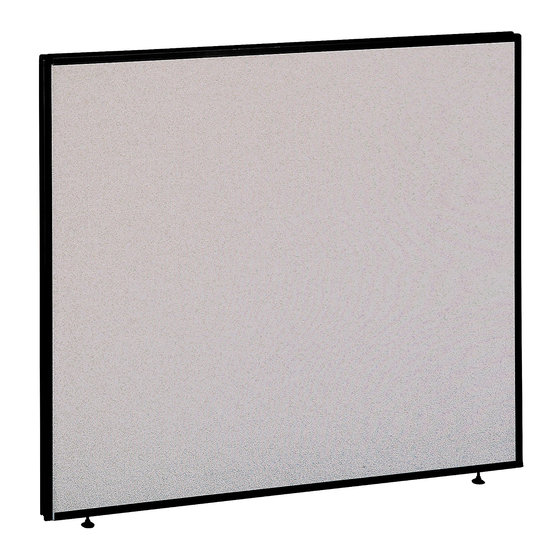

PROPANEL INSTALLATION GUIDE
?
Lot Code #
Part Number A160696B
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROPANEL and is the answer not in the manual?

Questions and answers

Summary of Contents for Bush Business Furniture PROPANEL

  • Page 1 PROPANEL INSTALLATION GUIDE Lot Code # Part Number A160696B Keep manual for future reference.

  • Page 2: Consumer Service

    5. Use of power tools is not recommended. completely satisfied with your product for many Conseils d’assemblage: years to come. Bush Business Furniture products 1. Lisez les instructions et familiarisez-vous avec les pièces. are backed by a 10-year warranty and crafted with 2.
  • Page 3 A160696B PAGE 2...
  • Page 4 A160696B Use this guide to build each configuration in segments. When connecting panels in a straight line, a support is needed at least every 12 feet (365cm), illustrated below. Extra hardware WILL EXIST when assembly is complete. Use esta gu a para construir cada configuraci n en segmentos. Al conectar los paneles en l nea re cta, se necesita un soporte al menos cada 12 pies (365 cm), ilustrado a continuaci n.
  • Page 5 A160696B Bottom of Panel Parte inferior del panel Bas du panneau Adjust all levelers to approximately 1-3/16" (30mm) Ajuste todos los niveladores a aproximadamente 1-3/16" (30 mm) Ajuster tous les niveleurs environ 1-3/16" (30mm) 1-3/16" (30mm) Assembly techniques shown in the following steps are for the particular configuration only. Attach appropriate connection hardware on the secondary end of the panels as needed.
  • Page 6 A160696B Wall Kit Foot Kit Go to Page 7. Go to Page 10. Proceda al la p gina 7. Proceda al la p gina 10. Aller la page 7. Aller la page 10. Straight Connection 2-Way Corner Connection Go to Page 16. Go to Page 12.
  • Page 7 A160696B High/Low Right Corner Connector High/Low Left Corner Connector Go to Page 28. Go to Page 28. Proceda al la p gina 28. Proceda al la p gina 28. Aller la page 28. Aller la page 28. High/Low Straight Connector High/Low 3-Way Connector Go to Page 37.
  • Page 8 A160696B Wall Kit PH99501-03, PP84901-03 HARDWARE/FASTENERS [ 1 ] H145867 4mm Allen Wrench [ 1 ] H145865 FOAM LIGHT SEAL [ 4 ] H145868 SCREW TRS M8 x 21mm [ 2 ] H145866 H145897 WALL BRACKET [ 2 ] H145876 H145893 Cover Cap PAGE 7...
  • Page 9 A160696B STEP 1 [ 1 ] H145865 [ 1 ] H145867 FOAM LIGHT SEAL 4mm Allen Wrench [ 2 ] H145866 [ 4 ] H145868 H145897 SCREW TRS M8 x 21mm WALL BRACKET FOAM LIGHT SEAL NOTE: TRIM FOAM LIGHT SEAL TO PROPER LENGTH WITH SCISSORS. NOTA: SELLO DE LUZ DE ESPUMA PARA CORTE A LA LONGITUD CORRECTA CON TIJERAS.
  • Page 10 A160696B STEP 2 [ 2 ] H145876 H145893 Cover Cap Note: Attach the unit to the wall using appropriate hardware for your wall substrate. Consult a contractor if necessary. Nota: Conecte la unidad a la p ared con el hardware apropiado par a su sustrato de pared.
  • Page 11 A160696B Foot Kit PH99599-03, PP84999-03 HARDWARE/FASTENERS [ 2 ] H145884 [ 1 ] H145867 H145898 4mm Allen Wrench FOOT [ 4 ] H145876 [ 4 ] H145868 H145893 Cover Cap SCREW TRS M8 x 21mm PAGE 10...
  • Page 12 A160696B STEP 1 [ 4 ] H145876 [ 4 ] H145868 [ 1 ] H145867 H145893 4mm Allen Wrench Cover Cap SCREW TRS M8 x 21mm [ 2 ] H145884 H145898 FOOT REMOVE LEVELERS QUITAR NIVELADORES RETIRER LES NIVEAUX PAGE 11...
  • Page 13 A160696B Panel Only Harvest Tan: PP42536-03, PP42548-03, PP42560-03, PP66536-03, PP66549-03, PP66561-03 Light Gray: PP42736-03, PP42748-03, PP42760-03, PP66736-03, PP66749-03, PP66761-03 SEE NEXT PAGE FOR TWO PANEL ASSEMBLY. VEA LA P GINA SIGUIENTE PARA DOS MONTAJE DEL PANEL. VOIR PAGE SUIVANTE POUR DEUX ASSEMBLAGES DE PANNEAUX. HARDWARE/FASTENERS [ 1 ] H145867...
  • Page 14 A160696B STEP 1 BEGIN WITH TWO PANELS. COMIENCE CON DOS PANELES. COMMENCER AVEC DEUX PANNEAUX. [ 2 ] H145873 [ 1 ] H145865 THREADED PIN FOAM LIGHT SEAL FOAM LIGHT SEAL NOTE: TRIM FOAM LIGHT SEAL TO PROPER LENGTH WITH SCISSORS. NOTA: SELLO DE LUZ DE ESPUMA PARA CORTE A LA LONGITUD CORRECTA CON TIJERAS.
  • Page 15 A160696B STEP 2 [ 4 ] H145868 [ 2 ] H145880 [ 1 ] H145867 H145889 SCREW TRS M8 x 21mm 4mm Allen Wrench Straight Panel Bracket LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. ATTACHER LOINEMENT LES BOULONS SUP RIEURS. PAGE 14...
  • Page 16 A160696B STEP 3 [ 2 ] H145868 [ 4 ] H145876 [ 1 ] H145867 H145893 4mm Allen Wrench SCREW TRS M8 x 21mm Cover Cap TIGHTEN ALL BOLTS. APRIETE TODOS LOS PERNOS. SERRER TOUS LES BOULONS. FOAM LIGHT SEAL CAREFULLY ALIGN PINS INTO BRACKET HOLES.
  • Page 17 A160696B 2-Way & 3-Way Connection 42"High Panels: PH99542-03, PH99742-03 66" High Panels: PH99566-03, PH99766-03 Go to Page 17. Go to Page 20. Proceda al la p gina 17. Proceda al la p gina 20. Aller la page 17. Aller la page 20. HARDWARE/FASTENERS [ 2 ] H145870...
  • Page 18 A160696B STEP 1 [ 4 ] H145868 [ 1 ] [ 2 ] H145867 H145870 H145886 4mm Allen Wrench SCREW TRS M8 x 21mm L BRACKET LOOSELY ATTACH TOP BOLTS. [ 2 ] H145873 COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. THREADED PIN ATTACHER LOINEMENT LES BOULONS SUP RIEURS.
  • Page 19 A160696B STEP 2 [ 2 ] H145868 [ 1 ] H145867 SCREW TRS M8 x 21mm 4mm Allen Wrench LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. ATTACHER LOINEMENT LES BOULONS SUP RIEURS. CAREFULLY ALIGN PINS INTO BRACKET HOLES. CUIDADOSAMENTE ALINEE LOS PINS EN LOS AGUJEROS DEL SOPORTE.
  • Page 20 A160696B STEP 3 [ 2 ] H145871 H145872 H145888 [ 1 ] H145874 [ 4 ] H145876 H145885 H145893 Post Cap H145894 Cover Cap POST [ 1 ] H145867 4mm Allen Wrench INSERT POST ASSEMBLY INTO BOTTOM BRACKET FIRST, THEN INTO TOP BRACKET. NEXT TIGHTEN ALL BOLTS. INSERTE EL ENSAMBLE POSTAL EN EL SOPORTE INFERIOR PRIMERO, LUEGO EN EL SOPORTE SUPERIOR.
  • Page 21 A160696B STEP 1 H145895 [ 4 ] [ 2 ] H145868 [ 1 ] H145867 H145882 4mm Allen Wrench SCREW TRS M8 x 21mm T BRACKET LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE [ 4 ] H145873 LOS PERNOS SUPERIORES. THREADED PIN ATTACHER LOINEMENT LES BOULONS SUP RIEURS.
  • Page 22 A160696B STEP 2 [ 4 ] H145868 [ 1 ] H145867 4mm Allen Wrench SCREW TRS M8 x 21mm LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. ATTACHER LOINEMENT LES BOULONS SUP RIEURS. CAREFULLY ALIGN PINS INTO BRACKET HOLES. CUIDADOSAMENTE ALINEE LOS PINS EN LOS AGUJEROS DEL SOPORTE.
  • Page 23 A160696B STEP 3 H145872 [ 2 ] H145871 [ 6 ] H145876 [ 1 ] H145874 H145888 H145893 H145885 Post Cap H145894 Cover Cap POST [ 1 ] H145867 POST 4mm Allen Wrench INSERT POST ASSEMBLY INTO BOTTOM BRACKET FIRST, THEN INTO TOP BRACKET.

  • Page 24: Connector Hardware

    A160696B X Connector Hardware 42" High Panels: PH99543-03, PP99743-03 66" High Panels: PH99568-03, PP84714-03 HARDWARE/FASTENERS [ 1 ] H145867 H145875 4mm Allen Wrench [ 2 ] H145896 X BRACKET [ 10 ] H145868 SCREW TRS M8 x 21mm [ 2 ] H145871 H145888 Post Cap...
  • Page 25 A160696B STEP 1 [ 6 ] H145873 [ 4 ] H145868 THREADED PIN SCREW TRS M8 x 21mm H145875 [ 2 ] H145896 [ 1 ] H145867 X BRACKET 4mm Allen Wrench LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. ATTACHER LOINEMENT LES BOULONS SUP RIEURS.
  • Page 26 A160696B STEP 2 [ 4 ] H145868 [ 1 ] H145867 4mm Allen Wrench SCREW TRS M8 x 21mm LOOSELY ATTACH TOP BOLTS. COLOQUE EXTREMADAMENTE LOS PERNOS SUPERIORES. ATTACHER LOINEMENT LES BOULONS SUP RIEURS. CAREFULLY ALIGN PINS INTO BRACKET HOLES. CUIDADOSAMENTE ALINEE LOS PINS EN LOS AGUJEROS DEL SOPORTE.
  • Page 27 A160696B STEP 3 H145872 [ 1 ] H145874 [ 2 ] H145871 H145885 H145888 H145894 Post Cap POST POST INSERT POST ASSEMBLY INTO BOTTOM BRACKET FIRST, THEN INTO TOP BRACKET. INSERTE EL ENSAMBLE POSTAL EN EL SOPORTE INFERIOR PRIMERO, LUEGO EN EL SOPORTE SUPERIOR.
  • Page 28 A160696B STEP 4 [ 8 ] [ 2 ] H145876 H145868 H145893 SCREW TRS M8 x 21mm Cover Cap [ 1 ] H145867 4mm Allen Wrench TIGHTEN ALL TOP BOLTS. APRIETE TODOS LOS PERNOS SUPERIORES. SERRER TOUS LES BOULONS SUP RIEURS. CAREFULLY ALIGN PINS INTO BRACKET HOLES.
  • Page 29 A160696B High/Low Connector Hardware Harvest Tan: PH99590-03 Light Gray: PH99790-03 Go to Page 29. Go to Page 35. Go to Page 32. Proceda al la p gina 29. Proceda al la p gina 35. Proceda al la p gina 32. Aller la page 29.
  • Page 30 A160696B STEP 1 [ 1 ] H145867 H145891 [ 1 ] H145870 [ 1 ] H145878 4mm Allen Wrench H145886 L BRACKET LEFT CORNER HIGH/LOW BRACKET [ 2 ] H145873 THREADED PIN [ 4 ] H145868 SCREW TRS M8 x 21mm 66"H 42"H LOOSELY ATTACH BOLTS.
  • Page 31 A160696B STEP 2 [ 2 ] H145871 [ 1 ] H145872 [ 1 ] H145867 H145888 H145885 4mm Allen Wrench Post Cap POST POST INSERT POST ASSEMBLY INTO BOTTOM BRACKET FIRST, THEN INTO TOP BRACKET. NEXT TIGHTEN ALL BOLTS. INSERTE EL ENSAMBLE POSTAL EN EL SOPORTE INFERIOR PRIMERO, LUEGO EN EL SOPORTE SUPERIOR.
  • Page 32 A160696B STEP 3 [ 1 ] [ 6 ] H145881 H145876 H145893 SCREW TRS #10 X 1.5" Cover Cap DRILL 1/8" (3mm) DIAMETER HOLE IN LINE WITH THE BRACKET HOLE. TALADRE UN ORIFICIO DE DI METRO DE 1/8" (3mm) EN LINEA CON EL AGUJERO DEL SOPORTE. PERCEZ LE TROU DE DIAM TRE DE 1/8"...
  • Page 33 A160696B STEP 1 H145892 [ 2 ] H145873 [ 1 ] [ 1 ] H145870 H145879 H145886 THREADED PIN RIGHT CORNER L BRACKET HIGH/LOW BRACKET [ 4 ] H145868 [ 1 ] H145867 4mm Allen Wrench SCREW TRS M8 x 21mm 66"H 42"H LOOSELY ATTACH BOLTS.
  • Page 34 A160696B STEP 2 [ 2 ] H145871 [ 1 ] H145872 H145888 H145885 Post Cap POST POST [ 1 ] H145867 4mm Allen Wrench INSERT POST ASSEMBLY INTO BOTTOM BRACKET FIRST, THEN INTO TOP BRACKET. NEXT TIGHTEN ALL BOLTS. INSERTE EL ENSAMBLE POSTAL EN EL SOPORTE INFERIOR PRIMERO, LUEGO EN EL SOPORTE SUPERIOR.
  • Page 35 A160696B STEP 3 [ 6 ] [ 1 ] H145876 H145881 H145893 SCREW TRS #10 X 1.5" Cover Cap DRILL 1/8" (3mm) DIAMETER HOLE IN LINE WITH THE BRACKET HOLE. TALADRE UN ORIFICIO DE DI METRO DE 1/8" (3mm) EN LINEA CON EL AGUJERO DEL SOPORTE.
  • Page 36 A160696B STEP 1 [ 4 ] H145868 [ 2 ] H145873 THREADED PIN [ 1 ] H145880 SCREW TRS M8 x 21mm H145889 [ 1 ] H145867 [ 1 ] Straight Panel Bracket H145865 4mm Allen Wrench FOAM LIGHT SEAL H145877 [ 1 ] H145890...
  • Page 37 A160696B STEP 2 [ 6 ] H145876 [ 1 ] H145881 H145893 Cover Cap SCREW TRS #10 X 1.5" DRILL 1/8" (3mm) DIAMETER HOLE IN LINE WITH THE BRACKET HOLE. TALADRE UN ORIFICIO DE DI METRO DE 1/8" (3mm) EN LINEA CON EL AGUJERO DEL SOPORTE.
  • Page 38 A160696B High/Low 3-Way Connector PH99593-03, PH99793-03 HARDWARE/FASTENERS [ 1 ] H145867 [ 1 ] H145883 4mm Allen Wrench H160697 H145882 3 WAY HIGH/LOW BRACKET [ 1 ] H145895 T BRACKET [ 2 ] H145871 H145888 [ 1 ] H145872 Post Cap H145885 POST [ 1 ]...
  • Page 39 A160696B STEP 1 [ 4 ] H145873 [ 2 ] H145868 THREADED PIN H145895 [ 1 ] H145882 SCREW TRS M8 x 21mm T BRACKET [ 1 ] H145867 4mm Allen Wrench 66"H 42"H PAGE 38...
  • Page 40 A160696B STEP 2 [ 2 ] H145871 [ 1 ] H145872 H145888 H145885 [ 1 ] H145883 Post Cap H160697 POST 3 WAY HIGH/LOW BRACKET POST [ 1 ] H145867 4mm Allen Wrench [ 4 ] H145868 SCREW TRS M8 x 21mm CAREFULLY ALIGN PINS INTO BRACKET HOLES.
  • Page 41 A160696B STEP 3 [ 1 ] H145881 [ 8 ] H145876 H145893 SCREW TRS #10 X 1.5" Cover Cap DRILL 1/8" (3mm) DIAMETER HOLE IN LINE WITH THE BRACKET HOLE. TALADRE UN ORIFICIO DE DI METRO DE 1/8" (3mm) EN LINEA CON EL AGUJERO DEL SOPORTE. PERCEZ LE TROU DE DIAM TRE DE 1/8"...
  • Page 42 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 43 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 44 Todo mueble de Bush Business Furniture es chase and for a period of ten years thereafter. Tout le produit Bush Business Furniture est garanti garantizado al comprador original al momento à l’acheteur original à partir de la date d’achat pour de la compra y por un periodo de diez años en...
