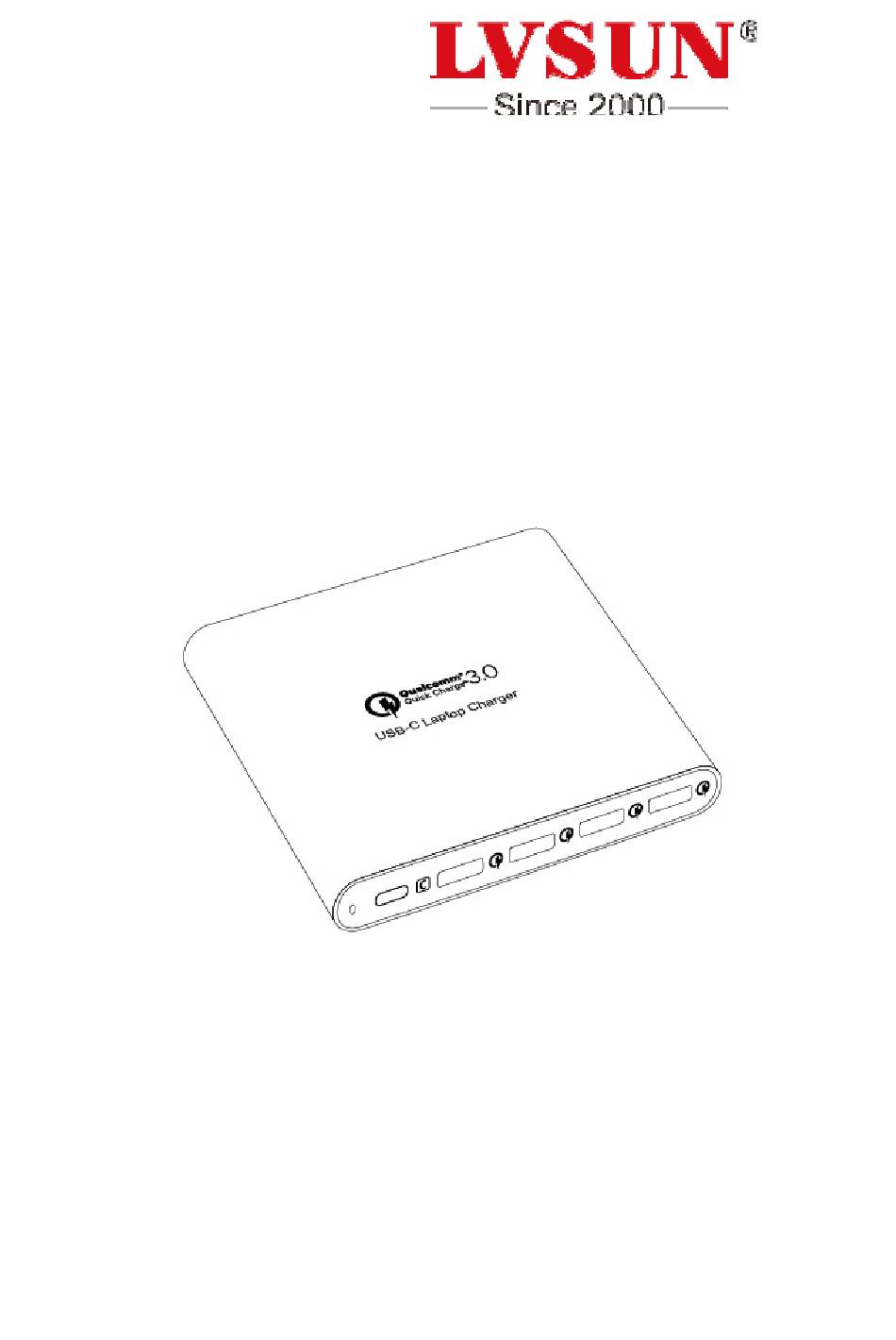

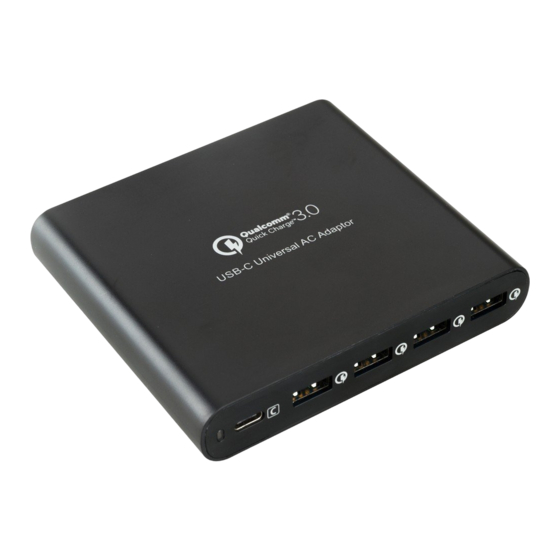

- Page 1 80W USB-C LAPTOP & QC 3.0 CHARGER LS-Q5U-PD User Manual ...
- Page 2 Product Features: 1. Supply power for laptops, smart phones and tablet PCs. 2. Adopt Qualcomm® Quick Charge™ 3.0 technology, offers fast and efficient charging technology. 3. Adopt USB PD2.0 technology, offers fast and efficient charging for USB‐C devices. 4. Ultra slim and curved housing design, compact and portable. 5. Universal output voltage from 5V to 20V, automatic switching, just plug & go. 6. Innovation product, self‐designing and produced with own patents. 7. Multiple safety protection: over current protection, over voltage protection, short circuit protection, over temperature protection. Product specifications: Model: LS‐Q5U‐PD Input: AC 100‐240V 50/60Hz 1.8A ...
- Page 3 Operation Instruction: When you want to charge or supply power to laptop, connect the AC plug into the wall socket (picture A). Choose the right tip, such as N04, connect it with the Laptop DC connection cable (picture B), insert the joint DC tip to the laptop then it can be used. (picture C) When you want to charge for your USB devices , connect the USB‐C cable into the USB‐C output port of adapter and insert the other end of USB‐C cable into the power port of your laptop computer (as picture D) When you want to charge for your USB devices, connect the USB cable to any of QC3.0 charging ports which offer fast and efficient charging technology for your smart phones and tablet PCs. ...
- Page 4 Caution: This adapter supports power 80W max. If your used power exceeds 80W, the adapter will occur to be over‐load protection. When you re‐plug the connection, then it will recover to normal work. Laptop DC Connector List: Output Connectors Replacement No Voltage Spec. HP/COMPAQ: 18.5V/2.7A,18.5V/3.5A 4.8*1.7*10.7m N04 19V DELTA:19V/2.64A m ASUS:19V/2.64A NEC:19V/2.64A DELL: 19V/3.16A,19V/3.42A DELTA: 19V/2.64A. TOSHIBA: 5.5*2.5*10.7m 19V/3.16A,19V/3.42A N07 19V m LITEON: 19V/3.16A,19V/3.42A NEC: 19V/2.64A,19V/3.16A GATEWAY: 19V/3.16A,19V/3.42A 6.0*4.3*10.7m SONY: 19.5V/2.7A,19.5V/3A N09 19.5V m FUJITSU: 19V/3.16A ...
- Page 5 m 7.4*5.0*12.5m N23 18.5V HP/COMPAQ: 18.5V/3.5A m N24 20V 7.9*5.5*0.9mm IBM/LENOVO: 20V/3.25A 11*5.6*11mm N35 20V Lenovo: 20V2.25A,20V3.25A square tip N36 19.5V 4.5*3.0 with pin HP:19.5V2.31A, 19.5V3.33A Notes 1: All listing of brand names are registered trademarks of their respective companies. Notes： Please check that the product’s feature, connector, and voltage will be compatible with your laptops in accordance to your device's manual instruction. Please read this manual and its instructions carefully before use. We are not responsible for any damage caused by incorrect or reckless operation. Important Safety Information: This safety guideline is to help you operate your power adapter safely, to ensure your personal safety and reduce the risk of fire, electric shock or injury. Do not apply external force on the cord. Do not unplug by pulling the cord. Do not connect a binded cord to the power supply. Do not place the cord or device near heating elements. ...
- Page 6 16. Unplug the power cord if you don't use the product for a long time. (It may cause heat, fire and electric shock) Hereby LVSUN Electronics T echnology Co., Ltd declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address.
