Summary of Contents for Daewoo SDA1032
- Page 2 Halogen Air Fryer SDA1032 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 Halogen Air Fryer SDA1032 User Manual MPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference: • Read and familiarise yourself with all operating instructions before using this Halogen Air Fryer.
- Page 4 Halogen Air Fryer SDA1032 User Manual • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

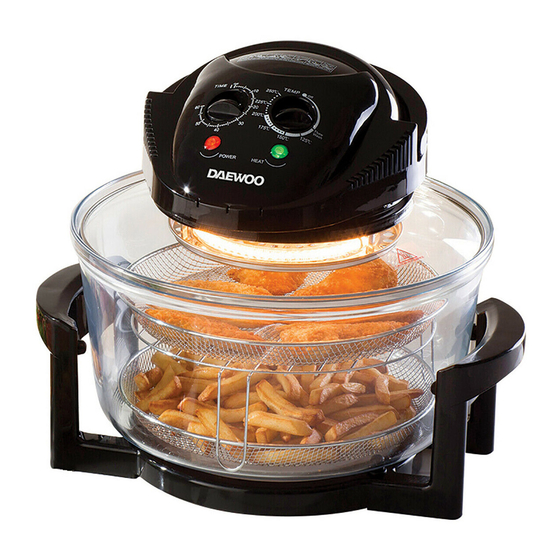

- Page 5 Halogen Air Fryer SDA1032 User Manual Safety Interlock Switch (Underneath Handle) Timer Thermostat Power Indicator Heat Indicator Extension Ring High Rack Oil Sprayer Low Rack 2 x Mesh Baskets Tongs Lid Stand Removable Base with Glass Bowl Handles Using the accessories...
- Page 6 Halogen Air Fryer SDA1032 User Manual NOTE: Always use the tongs provided to remove the basket or rack from the cooking bowl and use the supplied lid stand for supporting of the lid during and immediately after cooking. DO NOT use any other accessories with this appliance for example trays, bowls or aluminium foil linings.
- Page 7 Halogen Air Fryer SDA1032 User Manual Using your Halogen Air Fryer Thermostat The thermostat allows you to set the cooking temperature from 65˚C to 250˚C. Rotate the control clockwise to increase the cooking temperature and anticlockwise to reduce the temperature.
- Page 8 Halogen Air Fryer SDA1032 User Manual Operating the Halogen Air Fryer 1. The outer surface of the bowl will become very hot during cooking, be sure to place the bowl in its Insulated Base and on a solid, level heatproof surface. Danger Hot Surface 2.
- Page 9 Halogen Air Fryer SDA1032 User Manual Reference table of time and temperature for cooking Food Type Cooking Time Temperature Rack Position (Minutes) Roast meat Beef 16 mins per 1lb + 20 180-190 Low rack mins Lamb 16 mins per 1lb + 20...
- Page 10 Halogen Air Fryer SDA1032 User Manual Cooking tips and recipes How to roast Place meat directly onto the wire rack. Cooking time may vary depending on cut size and degree of cooking. Consult the cooking guide provided. How to bake Place food on a metal or ceramic baking pan of a diameter no more than 12”...
- Page 11 Halogen Air Fryer SDA1032 User Manual Recipes to get you started Rolled ribs roast 4lbs rolled rib of beef 2 tablespoons red wine 2 tablespoons water 2 tablespoons flour Salt and pepper Trim excess fat from the meat, sprinkle with salt and pepper and rub in well.
- Page 12 Halogen Air Fryer SDA1032 User Manual Fillet steak supreme 2lbs whole fillet steak Garlic, salt and pepper ½ cup of red wine 1 tablespoon cream or sour cream Rind of one lemon (grated) Rind of one orange (grated) 1 large onion (chopped)
- Page 13 Halogen Air Fryer SDA1032 User Manual Cleaning and Maintenance For light cleaning of the bowl, place approximately 3cm of water in the bowl and add a squirt of washing liquid/mild detergent, place the lid/motor assembly on the bowl and set the temperature dial to WASH and the timer to 10 mins, fully fold the handle down, the heater and turbo fan will operate to warm the water and stir it, cleaning the bowl.
- Page 14 Halogen Air Fryer SDA1032 User Manual Non-Wireable Mains Plug If your appliance is supplied with a non-wireable plug fitted to the mains lead and should the fuse need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating). If in doubt, consult a qualified electrician who will be pleased to do this for you.
- Page 15 1 year from the date of purchase. • It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance You should now recycle your waste electrical goods and in doing so help the environment.
- Page 16 1 year guarantee. Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defects should arise due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
