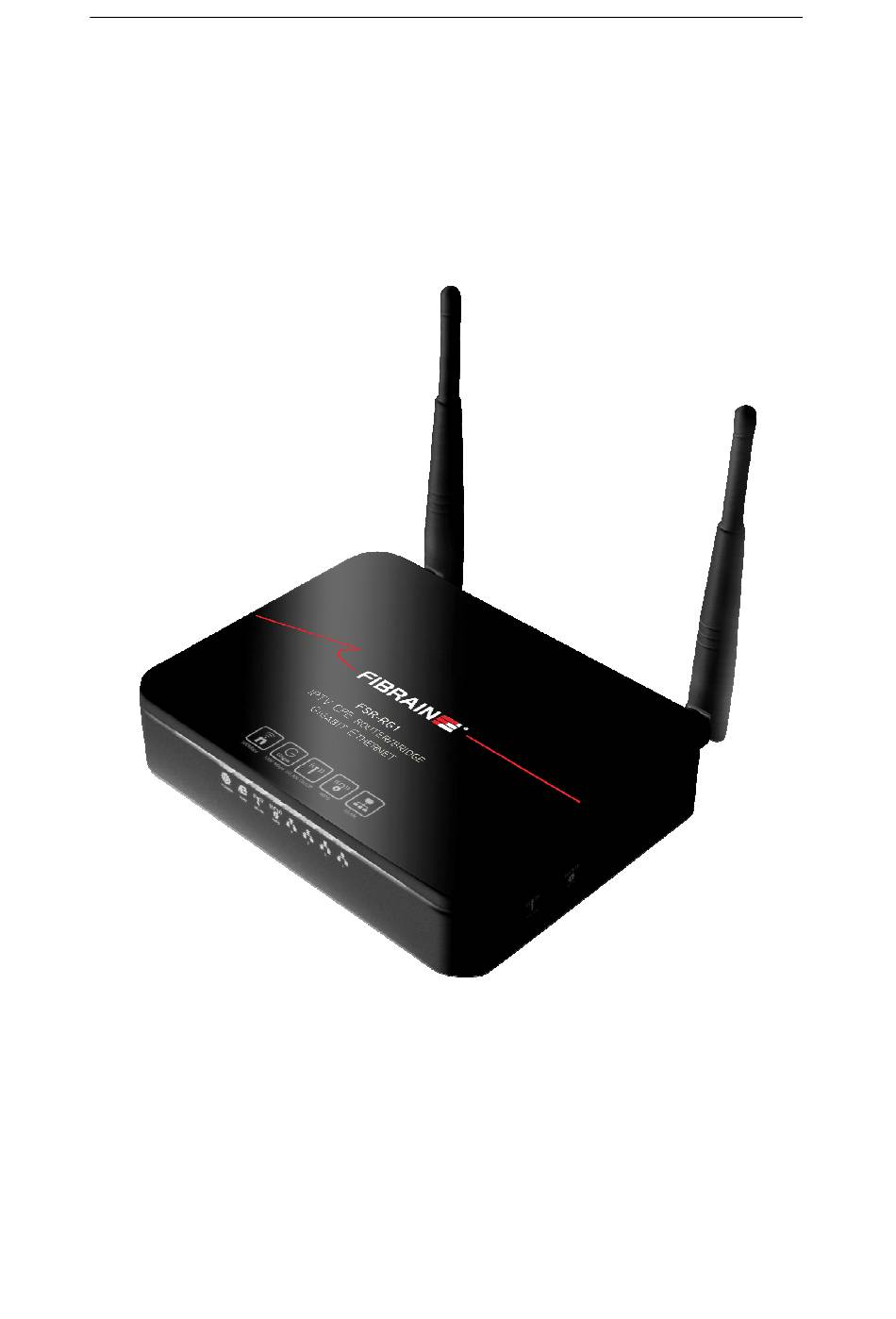

FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual... -
Page 2: Table Of Contents
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Table of Contents FIBRAIN FSR-RG1 ............... 1 WLAN Gigabit Router ............1 User’s Manual ................ 1 Introduction ............6 Features ................. 6 Device Requirements ............6 Using this Document ............. 7 Getting Support ..............7 Getting to know the device ........ - Page 3 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Routing Settings ..........52 Add Routing Rule ..............52 Example of Routing Rule ............ 53 DHCP Server Settings ........54 DDNS Settings ........... 55 MAC Address Clone Settings ......56 VLAN Settings ............ 57 Wireless - Basic Setting ........
- Page 4 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual DMZ - WAN 1 Settings ............90 Port Range Forwarding Settings ........90 Add Port Range Forwarding Rule ........91 Applications - Virtual Hosts ........ 92 Add Virtual Host Rule ............93 Applications - Streaming / VPN ......94 Streaming Settings ..............
- Page 5 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual UPnP Control Point Software on Windows XP with Firewall ................ 121 Troubleshooting ..........124 Troubleshooting Suggestions ........... 124 Diagnosing Problem using IP Utilities ......126 Glossary ............128...
-
Page 6: Introduction
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Introduction Congratulations on becoming the owner of the 802.11n WLAN Gigabit Router. You will now be able to access the Internet using your high-speed xDSL/Cable modem connection. This User Guide will show you how to connect your 802.11n WLAN Gigabit Router, and how to customize its configuration to get the most out of your new product. -
Page 7: Using This Document
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Explorer v7 or later. Note that version 7 of each browser is the minimum version requirement – for optimum display quality, use Internet Explorer v8 You do not need to use a hub or switch in order to connect more than one Ethernet PC to your device. -
Page 8: Getting To Know The Device
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Getting to know the device Computer / System requirements • 1. Pentium 200MHZ processor or above • 2. Windows 98SE, Windows Me, Windows 2000, Windows XP, Windows Vista and Windows 7 • 3. 64MB of RAM or above •... -
Page 9: Led Meanings & Activations
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual LED meanings & activations Front Panel The front panel contains lights called Light Emitting Diodes (LEDs) that indicate the status of the unit. Figure 1: Front Panel and LEDs Label Color Function POWER... - Page 10 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Figure 2: Rear Panel Connections * Actual ANTENNA may vary depending on model.
- Page 11 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Figure 3: Right Panel Connections Figure 4: Bottom Side for Reset button...
- Page 12 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Label Function ANTENNA Option 1: 2 fixed ANTENNA (Optional) Option 2: 2 detachable ANTENNA ON/OFF Power on/off the device SWITCH POWER Connects to the supplied power adaptor LAN 4/3/2/1 Connects the device via LAN Ethernet to up to 4 PCs...
-
Page 13: Computer Configurations Under Different Os, To Obtain Ip Address Automatically
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual Computer configurations under different OS, to obtain IP address automatically Before starting the 802.11n WLAN Gigabit Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server. - Page 14 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 2. Single RIGHT click on "Local Area connection", then click "Properties".
- Page 15 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 3. Double click on "Internet Protocol (TCP/IP)".
- Page 16 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 4. Check "Obtain an IP address automatically" and "Obtain DNS server address automatically" then click on "OK" to continue. 5. Click "Show icon in notification area when connected" (see screen image in 3. above) then Click on "OK" to...
-
Page 17: For Windows Vista-32/64
FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual For Windows Vista-32/64 1. Click on “Start” -> “Control Panel” -> “View network status and tasks”. - Page 18 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 2. In the Manage network connections, click on “Manage network connections” to continue.
- Page 19 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 3. Single RIGHT click on "Local Area connection", then click "Properties".
- Page 20 FIBRAIN FSR-RG1 WLAN Gigabit Router User’s Manual 4. The screen will display the information "User Account Control" and click "Continue" to continue. 5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
