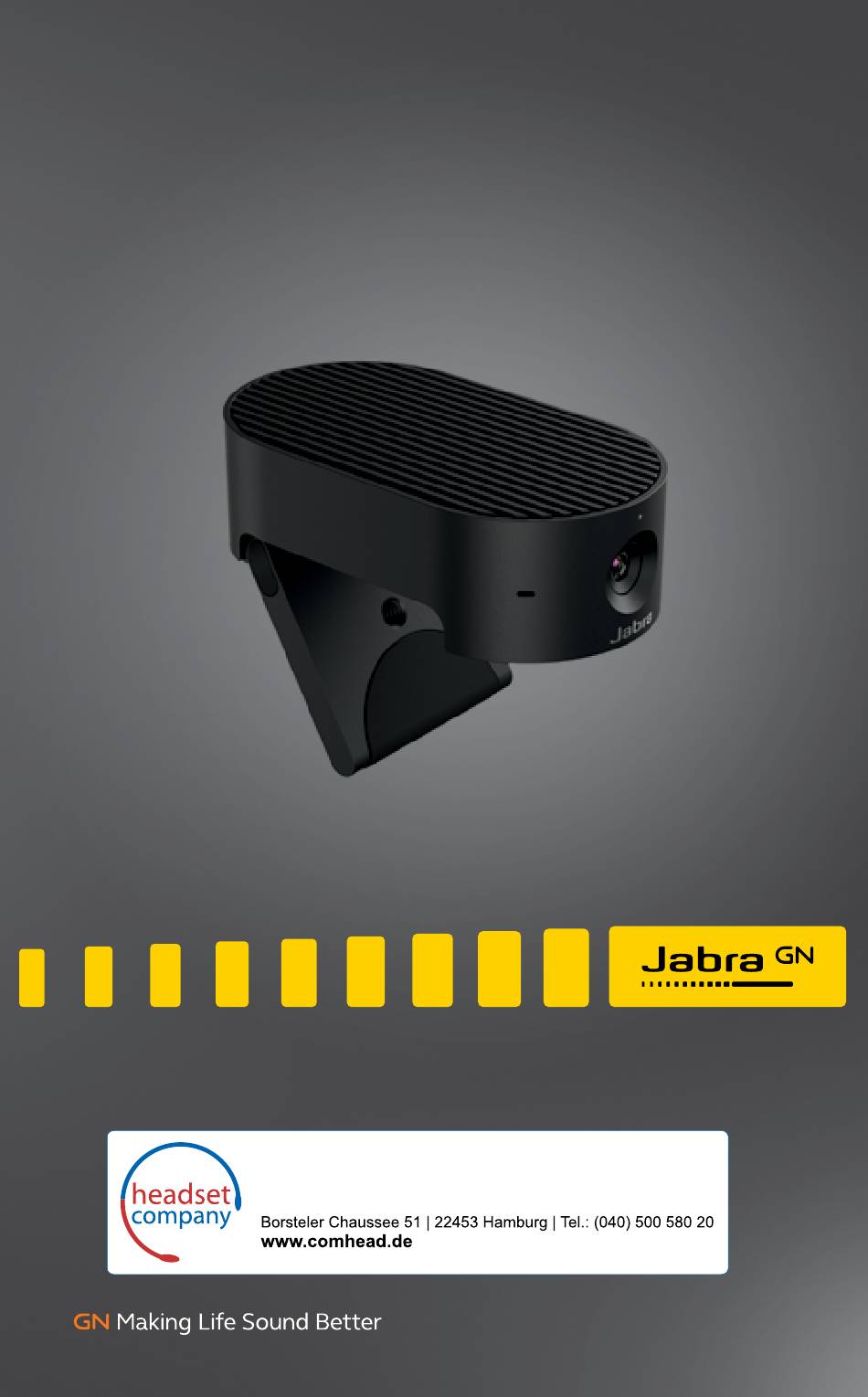

- Page 1 Jabra PanaCast 20 User manual Comhead Headset Company GmbH D i e H e a d s e t S p e z i a l i s t e n...
- Page 2 ® © 2021 GN Audio A /S. All rights reserved. Jabra is a trademark of GN Audio A/S. Made in China MODEL: VSU030 Declaration of Conformity can be found on www.jabra.com/doc...
- Page 3 1. Welcome .........5 2. Overview .........6 2.1 Jabra PanaCast 20 overview 2.2 Accessories 3. Camera setup ........7 3.1 Powering the PanaCast 20 3.2 Connecting the PanaCast 20 3.3 Mounting the PanaCast 20 3.4 Using the privacy cover 4. How to use ........9 4.1 Supported operating systems...
- Page 4 6. Software ........14 6.1 Jabra Direct (Windows or macOS) 6.2 Update firmware 7. Support ........15 7.1 FAQ and technical specifications 7.2 How to care for your Jabra device...
- Page 5 1. Welcome Thank you for using the Jabra PanaCast 20. We hope you will enjoy it! Jabra PanaCast 20 features • Enterprise grade camera. Ultra HD 4K video brings Artificial Intelligence into the personal camera space. The perfect partner for rich Jabra Speak audio and Evolve2 products.
- Page 6 2. Overview 2.1 Jabra PanaCast 20 overview PanaCast 20 features an Ultra HD 4K camera with a built-in privacy cover and three microphones, providing better video in low light situations and automatically zoom in on the nearest person for frame centering.
-
Page 7: Camera Setup
3. Camera setup 3.1 Powering the PanaCast 20 The PanaCast 20 camera only works when connected to a USB 3.0 port on your computer using the supplied USB cable. 3.2 Connecting the PanaCast 20 Connect your computer directly to the Jabra PanaCast camera using the supplied 1.5m/5ft... - Page 8 3.3 Mounting the PanaCast 20 The Jabra PanaCast 20 camera can be mounted on the top of your monitor or laptop using the adjustable mounting bracket. Foldable clip Open the mounting bracket so it can clip on your computer Do not mount the camera facing direct sunlight as this may affect the preset white balance and compromise the image.
-
Page 9: How To Use
4. How to use 4.1 Supported operating systems Jabra PanaCast 20 supports Windows 10 or later, and is compatible with macOS 10.15 and later, including macOS 11.x or later, and does not require extra drivers. It is recommended to download and install Jabra Direct to customize camera settings and to update the firmware. - Page 10 4.3 Using the camera with other compatible video conferencing applications Ensure the Jabra PanaCast 20 has been set as the default video device in the video settings for your video conferencing application. For more information about compatible video conferencing applications, visit jabra.com/ help/panacast20.
-
Page 11: Camera Features
Jabra Direct. 5.3 Picture-in-Picture Picture-in-Picture mode will display your image in a separate view in the bottom right corner. The main view can then be adjusted to focus on an area of interest using the Jabra Direct camera controller. - Page 12 Jabra Direct. To access video adjustments: 1. Click the Jabra Direct icon located in the Windows system tray or the macOS menu bar to open the Jabra Direct window. 2. Click Camera controller to open the Video...
-
Page 13: Built-In Microphones
5.5 Built-in microphones The Jabra PanaCast 20 has three built-in microphones. The optimal microphone pickup range is up to 2.5 meters or 8 feet. The microphones are off by default, and can be... -
Page 14: Update Firmware
6.2 Update firmware Firmware updates improve performance or add new functionality to Jabra devices. When your computer is connected to the Jabra PanaCast 20, Jabra Direct will notify you when an update is available. Comhead Headset Company GmbH D i e... - Page 15 View the FAQ, certifications, and technical specifications at jabra.com/help/panacast20. 7.2 How to care for your Jabra device • The Jabra PanaCast 20 is for indoor use only. • Avoid direct sunlight and temperatures above 40°C/104°F or below 0°C/32°F. • Use suitable cleaning cloth or wipes to keep PanaCast 20 clean.
