Warning Do not operate this appliance before reading and understanding
these instructions. Always keep the instructions attached to the appliance
or readily available at the appliance storage site.
Version: 03200008

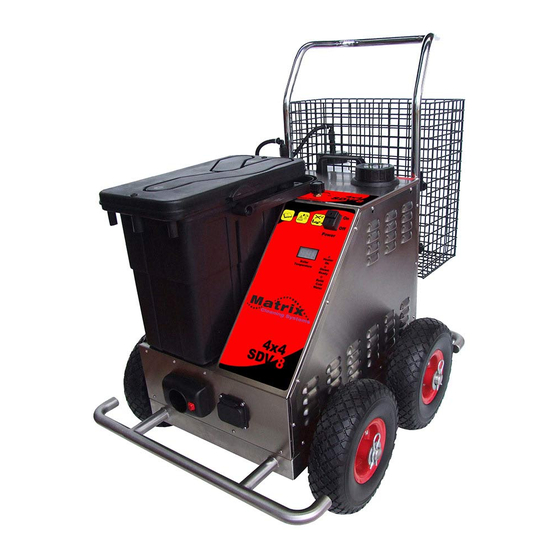

USER MANUAL
Professional Steam, Detergent &
Vacuum Cleaning Machine
Original Instructions for Model:
4X4SDV8
Advertisement
Table of Contents
Related Manuals for Matrix Cleaning Systems 4X4SDV8
Summary of Contents for Matrix Cleaning Systems 4X4SDV8
- Page 1 Professional Steam, Detergent & Vacuum Cleaning Machine Original Instructions for Model: 4X4SDV8 Warning Do not operate this appliance before reading and understanding these instructions. Always keep the instructions attached to the appliance or readily available at the appliance storage site.
-
Page 2: Symbols Used Throughout The Safety Instructions And On The Machine
Please recycle all packaging material. Do not throw away into household waste Safety Instructions Please read and comply with these safety instructions prior to using the machine. Retain this document for future reference. These instructions are also available on our website www.matrixcleaningsystems.co.uk Warnings and information plates on the machine provide directions for safe operation. -
Page 3: Transport And Storage
The appliance is suitable for commercial use e.g. in hotels, schools, hospitals, factories, shops, offices and hire shops. Any other use is considered as improper use. Matrix Cleaning Systems Ltd accepts no liability for any damage resulting from such use. The risk is solely borne by the user. -
Page 4: Table Of Contents
Table of Contents Safety Instructions Symbols used throughout the safety instructions and on the machine.…………… Operation warnings……………………………………………………………………… Intended use……………………………………………………………………………… Transport and storage….……………………………………………………………….. Appliance socket……..………………………………………………………………….. Operating Procedures Setting up the machine………………………..………………………………………… During Use Cold water tank empty……………………………………………….………………….. Detergent bottle empty………………………………………………………………….. Collection tank full…………………..…………………………………………………… Storing the hose after use………………………………………………………………. -
Page 5: Operating Procedures
Operating Procedures Fill the cold water tank with clean cold water only. Anything other than clean cold water used in the water tank will void the manufacturer’s warranty. Connect the Detergent Bottle to the detergent connection point on the machine. Fill the detergent bottle with Matrix approved detergent. -
Page 6: During Use
During Use Cold Water Tank Empty 1. Refill the cold water tank when the refill cold water LED is illuminated. A buzzer will sound and the steam will no longer come out of the nozzle when the steam switch on the handle is pressed. 2. -
Page 7: Maintenance
If in doubt, please contact Matrix Cleaning Systems direct on +44 (0) 1772 431906. Guarantee Matrix Cleaning Systems guarantees that if within 24 months from the date of purchase this appliance, or any parts thereof, is proved to be defective by reason of faulty workmanship or materials. Please contact... -
Page 8: Technical Information
Technical Information Boiler Capacities Wattage 3000W – (2000+1000) Boiler 3.3 Litres Type Stainless Steel Cold Water Tank 5 Litres (easy fill) Capacity 3.3 Litres Collection Tank 12 Litres Continuous Fill Detergent Tank 2.5 Litres (easy fill) Steam Pressure 8 Bar Steam at source 185°C >... -
Page 9: References And Useful Links
Symptom Possible Cause Action Required Vacuum power low High pitch motor noise Switch the machine off and empty the collection tank. Refill the collection tank with clean water to the mark and recommence work Unknown Call for service No detergent Solution tank empty Pour cleaning solution diluted in accordance with the manufacturer’s instructions into the... -
Page 10: Eos - Education Of Steam
Chewing Gum Removal Detergent Concentrate: http://www.matrixcleaningsystems.co.uk/wp- • content/uploads/2017/03/CHEWING-GUM-REMOVER-CONCENTRATE-Rev-1- 080515-00000003.pdf Ready to Use: http://www.matrixcleaningsystems.co.uk/wp- • content/uploads/2017/03/CHEWING-GUM-REMOVER-RTU.pdf E.O.S – Education of Steam Visit our E-Learning Zone on our website Here you find Training Centres, Quick Start Guides, Get Started Videos, Steam Application Videos and SOP’s –... -
Page 11: Serial Number
Serial number label affixed below: Please record in the space below the listed information for future reference: Serial number as the label above: …………………………………………………………………….. Date of purchase: …………………………………………………………………………………………….. Purchased from: ……………………………………………………………………………………………… …………………………………………………………………………………………………………………………. ………………………………………………................ - Page 12 Manufactured in the UK to the highest quality standard by: Leyland Business Park, Centurion Way, Farington Leyland Preston PR25 3GR Tel: 0044 (0) 1772 431906 Fax: 0044 (0) 1772 431902 E-mail: info@matrixcleaningsystems.co.uk...
