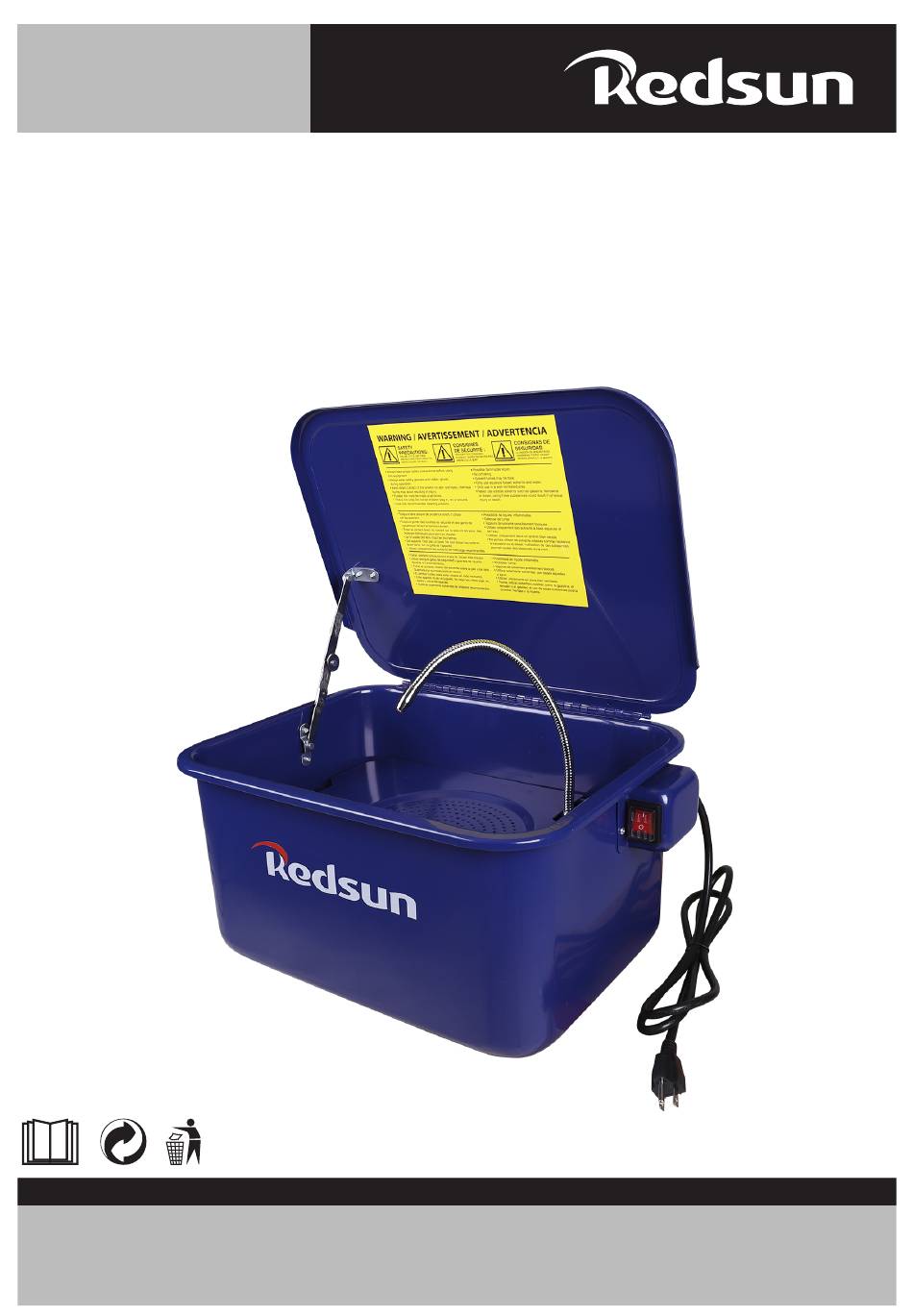

3-1/2 GALLON PARTS WASHER

OPERATING INSTRUCTIONS

AND PARTS MANUAL

MODEL: PW3-1/2G

Please read and save these instructions.

Read through this owner's manual carefully before using product. Protect yourself and others by

observing all safety information, warnings, and cautions. Failure to comply with instructions could

result in personal injury and/or damage to product or property. Please retain instructions for future

reference.

Table of Contents

Need help?

Do you have a question about the PW3-1/2G and is the answer not in the manual?

Questions and answers

Summary of Contents for Redsun PW3-1/2G

Page 1 3-1/2 GALLON PARTS WASHER OPERATING INSTRUCTIONS AND PARTS MANUAL MODEL: PW3-1/2G Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
Page 2 TABLE OF CONTENTS ........................TABLE OF CONTENTS ......................PRODUCT SPECIFICATION ........................SAFETY INFORMATION ........................INSTALLATION STEPS ............................ OPERATION ..........................MAINTENANCE ................. TROUBLESHOOTING FOR VACUUM STYLE ..........................PARTS DIAGRAM GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
Page 3 (1) Flexible, positionable metal “Gooseneck” fluid outlet tube with nozzle (1) flow-thru parts brush with tube SPECIFICATIONS Item Name PW3-1/2G • 120 Volt AC, 60hz current requirement • Maximum pump capacity @ outlet: 1 gallon per minute • 3.5 gallon tub capacity, 1.5 gallon operating capacity...
Page 4 ASSEMBLY • Thread the Flexible Metal “Gooseneck” Fluid Outlet Tube onto the Pump Outlet Fitting (Fig A). • Place the Parts Cleaning Tray over the ledges on the walls of the tub. Make sure the Nozzle of the Flexible Metal “Gooseneck” Fluid Outlet Tube is shaped to be facing in and downward toward the center of the Tub (Fig B).
Page 5 MAINTENANCE • Unplug unit and inspect the pump intake grill after every hour of cleaning (Fig D). Clean more often if removing excessively heavy deposits of grease and Important Note: grit. Failure to clean pump intake will result in diminished ﬂ uid ﬂ...
Page 6 PARTS DIAGRAM PARTS LIST N.O. DESCRIPTION N.O. DESCRIPTION Tank Plastic Foot M5x30 Screw Heavy-Duty Removable M5 Nut Work Shelf Cover Fusible Linked Lid Arm M4x12 Screw Pump Switch Box Rivet Switch Pump Holder Strain Relief Flexible Metal Spigot Power cord...
