USER MANUAL – EURO ROLLATOR

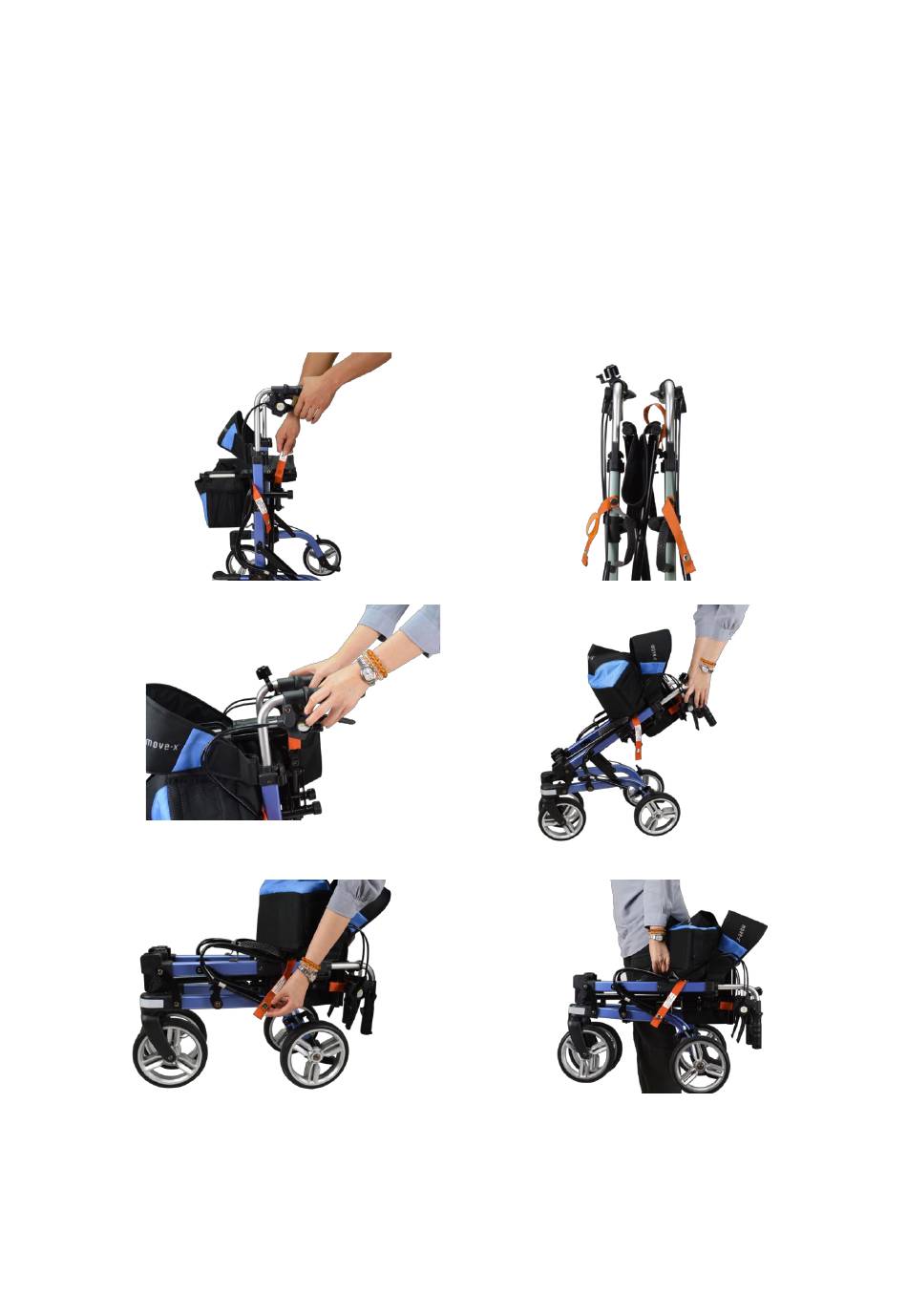

FOLDING PROCEDURE
How to unfold:
1. Release the folding webbing Velcro strap.
2. Hold the handle and pull up until a click sound then secure with locking pin.
3. Push the seat side tubes down until a click sound.
4. Adjust the handle to the proper position.
5. Hook the bag on the bag holding rod and attach the Velcro to the frame.
6. Release the assisted brake to unlock the wheels.
How to fold:
1. Push down the assisted brake to lock.
2. Take off the shopping bag (better but not a must).
3. Pull up the folding webbing : The folding webbing is positioned at the center of the seat. Pull it to
fold the rollator horizontally to the Storage status.
4. Release the locking pin at the frame base.
5. Fold down the rollator frame.
6. After folding, use the buckle webbing to fix the rollator: Put the webbing on the rivet each side to
secure the folded position
EN Instruction
Advertisement
Table of Contents
Related Manuals for DNR 10/8899
Summary of Contents for DNR 10/8899
- Page 1 USER MANUAL – EURO ROLLATOR FOLDING PROCEDURE How to unfold: 1. Release the folding webbing Velcro strap. 2. Hold the handle and pull up until a click sound then secure with locking pin. 3. Push the seat side tubes down until a click sound. 4.
- Page 2 SPECIFICATION Max 36.6" 25" (unfolded) Height: Width: Min: 31" 10" (folded) Depth: 23" Seat Width: 18" Max. User Weight: 136kg (300 lbs) Wheels: 8” CLEANING METHOD 1. Wipe down your equipment weekly (or more often as needed) with a cloth dampened in a mild detergent/ water solution.
