Summary of Contents for HL Display 4eBin

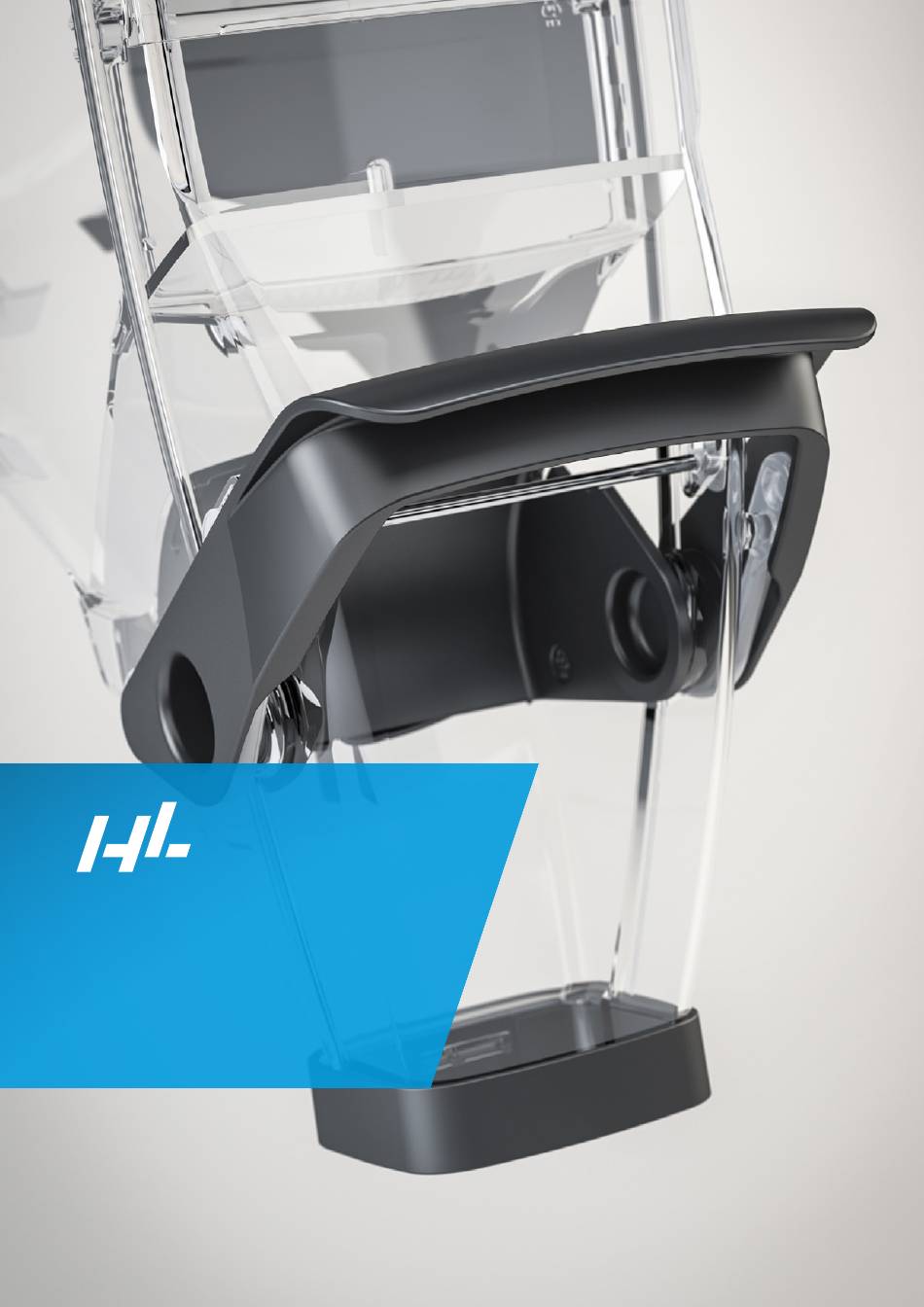

- Page 1 4eBin ™ High visibility and easy maintenance Maintenance & cleaning...
- Page 2 (below 50º C and always in the top tray). Some customers prefer not to do the cleaning themselves - your HL Display representative can help you source a cleaning service for your bulk bins. (13)
-
Page 3: Component Overview
Component overview See below all the components of the 4eBin gravity bin system. ™ "Optional” False front Body “Optional” False front door Collar Rubber springs Label holder Shutter seal Shutter stop pin + plugs (2 pcs) Front Handle with integrated shutter “Optional”... - Page 4 Steps Bin disassembling To disassemble, follow the instructions below: Take off the lid. To unlock the front from the body, pull the top left side of the front and push the connector. Repeat the same action on the right side. Once released, remove the front Remove the sleeve (optional) around the from the body.
- Page 5 Steps Bin disassembling (cont.) To disassemble, follow the instructions below: Remove the rubber springs from the knobs on the front and on the handle. Remove the 2 plugs in each side of the The front is now disassembled shutter stop pin. Remove the shutter stop pin.
- Page 6 Steps Bin disassembling (cont.) To disassemble, follow the instructions below: Remove the collar. If there is a false front installed (optional), pull the top part of the false front towards you and remove it from the bin body. Remove the shutter seal from the collar.
- Page 7 Steps Bin assembling a. Front assembling Insert the shutter stop pin in the front. Mount the 2 plugs on each side to Adjust the shutter lock to the required lock the shutter stop pin. position: bottom position: minimum flow rate / middle position: mid flow rate / high position: maximum flow rate (13)
- Page 8 Steps Bin assembling (cont.) Front assembling Fix the 2 rubber springs onto Fit the handle on the front. the knobs on the front. Fix the other end of the rubber springs. The bin front is now mounted! (13)
- Page 9 Steps Bin assembling (cont.) b. Body assembling Fix the shutter seal on the collar Fix the collar to the body Fix the collar to the body The body is now mounted! (13)
- Page 10 Steps Bin assembling (cont.) c. False front assembling (optional) Take the false front and the door. The false front can be installed without removing The false front has one closed and one the bin from the shelf. open hinge connection. Hold it so that the open hinge connection is facing you.
- Page 11 Steps Bin assembling (cont.) c. False front assembling (optional) Put the lower end of the false front on Push the upper part of the false front so the bumps on the top of collar. that the two upper hooks connect with the bin body.
- Page 12 Final Steps Bin assembling (cont.) d. Final assembling Fix the bottom hole in the nozzle of the front cover onto the bottom hook of the body. Snap the two connectors on the bin Put the lid on Optional: fix the front onto the bin body.
- Page 13 HL DISPLAY AB Cylindervägen 18 Box 1118 Tel +46 8 683 73 00 www.hl-display.com 131 26 Nacka Strand, Sweden info@hl-display.com...
