Proove TSP200 User Manual

CREATE YOUR SMART HOME
Features
• Easy installation – no cables or connections are required
• Self-programming with 67 million codes
• 3 channels; 1 group function
• Each outlet has 5 memory settings
• The remote control operates at a distance up to 30
metres (free line of sight)
• Green LED indicates ON/OFF and programming status
• The outlets are TellStick compatible.
WARNING!
• Do not place two outlets too close to each other. The
distance between two outlets must be at least 1 m.
• DO NOT OVERLOAD THE SYSTEM!
Do not use the system in humid places, e.g. in farms or basements
and not in the vicinity of inflammable liquids, solvents, colours or
similar products.

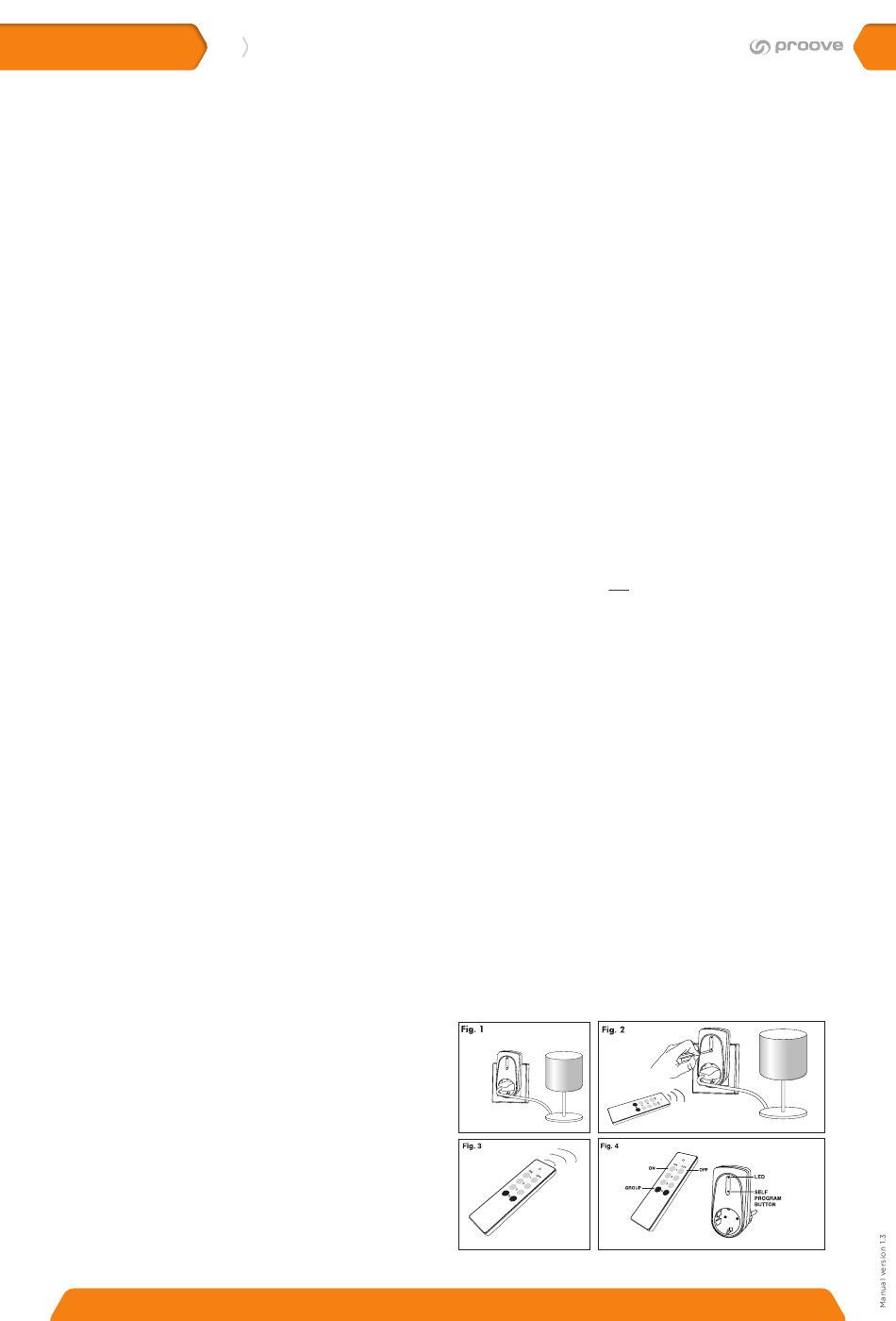

Installation
1. Remove the small plastic tab from the battery in the
remote control.
2. Connect the outlet to the mains.
3. Connect a lamp to the outlet. If there is a power switch on
the connecting cable, make sure it is switched on.
Programming an outlet
1. Install the outlet as explained under "Installation" above.
2. Keep the outlet programming button pressed for 3
seconds. The LED blinks slowly.
3. Press one of the ON buttons on the remote control
within 10 seconds to link the outlet to the button. (The
programming mode is automatically disabled if no button
is pressed.)
4. The connected lamp blinks twice as confirmation.
Deprogramming a single code:
1. Keep the outlet programming button pressed for 3
seconds. The LED blinks slowly.
2. Press the corresponding OFF button on the remote
control to remove the programmed code. (The
programming mode is automatically disabled after 10
seconds if no button is pressed.)
3. The connected lamp blinks twice as confirmation.
4. To add a new code, repeat the programming procedure.
Deprogramming all codes:
1. Keep the outlet programming button pressed for 5
seconds. The LED blinks rapidly.
2. Press the outlet programming button once more
to remove all codes. (The programming mode is
automatically disabled after 10 seconds if the button is
not pressed.)
3. The connected lamp blinks twice as confirmation.
4. To add a new code, repeat the programming procedure.
ON/OFF operation of a remote controlled outlet
1. Press the ON button on the remote control to switch on
the power.
2. Press the OFF button to switch off the power.
3. Press the GROUP button to simultaneously switch all
outlets ON or OFF.
4. ON/OFF switching is also possible by briefly pressing the
outlet programming button.
USERS MANUAL • TSP200
A SMARTER CHOICE
The outlets have 5 memory settings
It is possible to programme the outlet to switch on
separately or switch them on and off in different
combinations.
Example: Suppose that three outlets were programmed,
where outlet 1 controls a table lamp, outlet 2 controls a
window lamp and outlet 3 controls a ceiling lamp.
• Outlets 1, 2 and 3 can be controlled separately using the
ON and OFF buttons for each channel on the remote
control.
• Also two of the outlets (e.g. 1 and 3) can be programmed
to a single button. It is then possible to simultaneously
control the table lamp and ceiling lamp.
Note: Do not program an ON/OFF outlet and a dimmer outlet to the
same remote control button. It is recommended to only program
one dimmer outlet to each remote control button.
TellStick compatible
The outlets are compatible with TellStick products. Select
"Proove" as the outlet type when programming the outlets
for use in this manner. Please visit www.telldus.com for
more information on how to use the outlets with TellStick
products.
Troubleshooting
Connected lamp does not light:
1. If the outlet LED lights green:
• Check the light source.
• If there is a power switch on the connecting cable,
make sure it is switched on.
2. If the outlet LED does not light green:
• Check the power supply to the outlet.
• Try pressing the ON button on the remote control
once again.
3. If the problem persists:
• Check the battery in the remote control
(transmitter).
• Check the programmed codes. It may be necessary to
erase old codes and reprogram the outlet.
Specifications
Remote control (transmitter):
Power supply:. . . . . . . . . . . 3V CR2032 battery (included)
Outlets (receiver):
Load on/off function (max.): . . . . . . . . . . . . . . . . 1000W
Load on/off/dimmer function (min. - max.):. . . . . . 40-300W
Operating range: . . . . . . . . . . Up to 30m (free line of sight)
Protection class: . . . . . . . . . . . . . . . . . . . . . . . . IP20
Class:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
Operating temperature (max.): . . . . . . . . . . . . . . . . 40°C
Frequency: . . . . . . . . . . . . . . . . . . . . . . . 433.92MHz
Power supply: . . . . . . . . . . . . . . . . . 230V ~ ±10%, 50Hz
