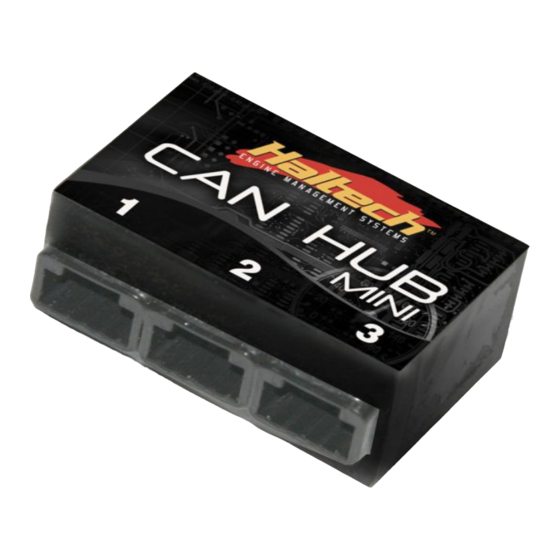

- Page 1 PLATINUM Series Haltech CAN Hub Mini (HT059991) QUICK START GUIDE...
- Page 2 Proof of purchase, in the form of a bill of sale or receipted invoice, which indicates that the product is within the warranty period, must be presented to obtain warranty service. Lockin Pty Ltd trading as Haltech suggests that the purchaser retain the dealer’s dated bill of sale as evidence of the date of retail purchase.
- Page 3 Haltech CAN based expansion devices. This quick start guide will walk you through installation of the Haltech CAN Hub Mini into a vehicle. This guide is accompanied by the full service manual located on the software CD provided with the ECU that you or your tuner will need to refer to before completing your installation and configuration.
- Page 4 The Haltech CAN Network The Haltech CAN network allows for simple and effective expansion in ECU capability and functionality without having to go to the trouble of wiring in a whole new computer. Expansion is made possible by the addition of multiple expansion devices that communicate to the main ECU via a Control Area Network (CAN).
- Page 5 CAN Hub Mini Configurations The following diagrams show the correct wiring of the Mini Hub to expansion devices in multiple ECU with 1 Device ( No CAN Hub Mini Required ) ECU with 2 Devices...
- Page 6 CAN Hub Mini Configurations with RacePak IQ-3 Dash The RacePak IQ-3 must be in the last position occupied on the CAN Hub Mini, that is furthest away from the ECU. ECU with RacePak IQ-3 ( No CAN Hub Mini Required) ECU with 2 Devices (inc RacePak IQ-3)
- Page 7 Notes...
- Page 8 HALTECH HEAD OFFICE: +612 9729 0999 FAX: +612 9729 0900 EMAIL: sales@haltech.com HALTECH US OFFICE: EMAIL: usa@haltech.com See the Haltech Website for your local authorized dealer. www.haltech.com Version 2...
