Summary of Contents for Emerson Rosemount G1
- Page 1 Quick Start Guide 00825-0100-4106, Rev 02 August 2020 ™ Rosemount G1 Welding Mandrel...
-
Page 2: About This Guide

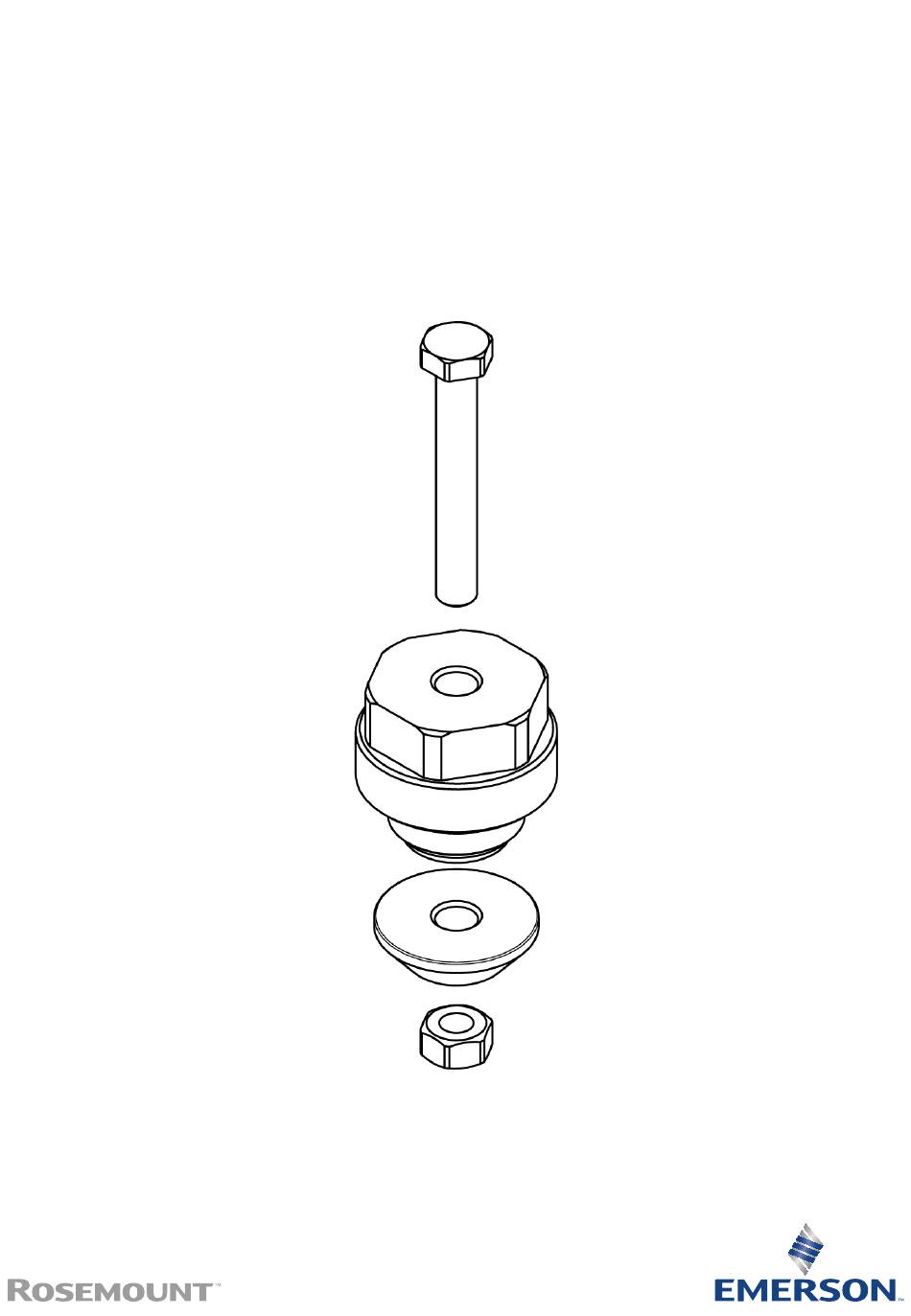

1 About this guide This guide provides instructions for mounting the welding mandrel (part number FB-6041). 1.1 Safety instructions Follow these guidelines to ensure safe use and extend the life of the product. CAUTION • Read this document before using the product and keep it during the entire service life. - Page 3 2 Mount the welding mandrel The welding mandrel absorbs heat and can prevent warping during installation of the weld-in adapter. Prerequisites CAUTION While welding, the weld-in adapter and mandrel can get extremely hot. To prevent burns, allow the components to cool before disassembling the weld-in adapter and mandrel assembly.
- Page 4 3. Mount the counter plate. 4. Tighten the nut. 16 mm Postrequisites 1. Weld the weld-in adapter according to instructions found in ™ the Rosemount Hygienic Process Connection Adapter Quick Start Guide for Weld-in adapter. 2. Allow the weld and mandrel components to cool, then remove the mandrel components from the weld-in adapter.
- Page 8 Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
