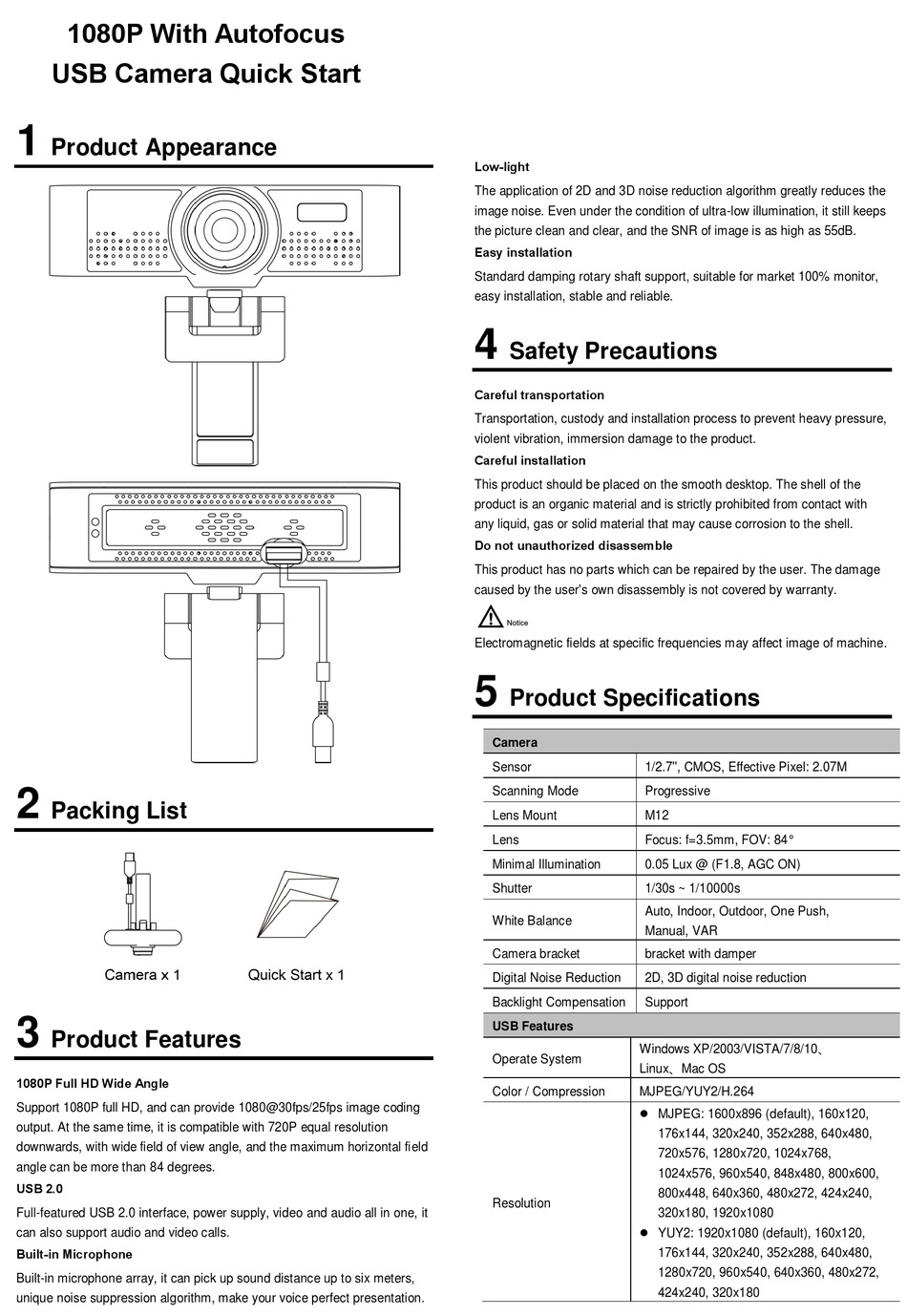

CleverMic B3 Quick Start

1080P With Autofocus
USB Camera Quick Start
1

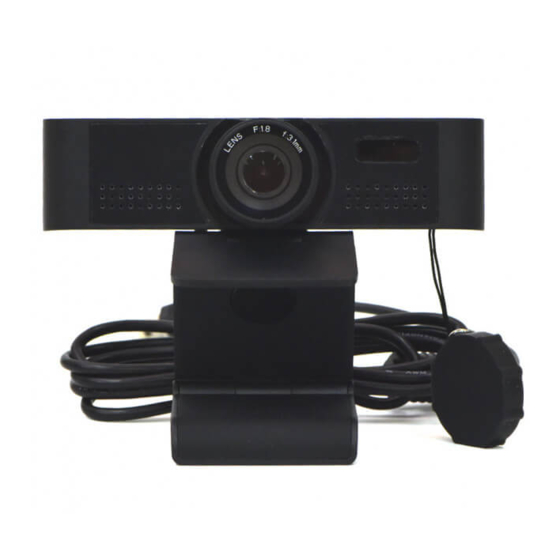

Product Appearance
2
Packing List
3
Product Features
1080P Full HD Wide Angle
Support 1080P full HD, and can provide 1080@30fps/25fps image coding
output. At the same time, it is compatible with 720P equal resolution
downwards, with wide field of view angle, and the maximum horizontal field
angle can be more than 84 degrees.
USB 2.0
Full-featured USB 2.0 interface, power supply, video and audio all in one, it
can also support audio and video calls.
Built-in Microphone
Built-in microphone array, it can pick up sound distance up to six meters,
unique noise suppression algorithm, make your voice perfect presentation.
Low-light
The application of 2D and 3D noise reduction algorithm greatly reduces the
image noise. Even under the condition of ultra-low illumination, it still keeps
the picture clean and clear, and the SNR of image is as high as 55dB.
Easy installation
Standard damping rotary shaft support, suitable for market 100% monitor,
easy installation, stable and reliable.
4
Safety Precautions
Careful transportation
Transportation, custody and installation process to prevent heavy pressure,
violent vibration, immersion damage to the product.
Careful installation
This product should be placed on the smooth desktop. The shell of the
product is an organic material and is strictly prohibited from contact with
any liquid, gas or solid material that may cause corrosion to the shell.
Do not unauthorized disassemble
This product has no parts which can be repaired by the user. The damage
caused by the user's own disassembly is not covered by warranty.
Electromagnetic fields at specific frequencies may affect image of machine.
5
Product Specifications
Camera
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens Mount M12
Lens Focus: f=3.5mm, FOV: 84°
Minimal Illumination 0.05 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Auto, Indoor, Outdoor, One Push,
White Balance
Manual, VAR
Camera bracket bracket with damper
Digital Noise Reduction 2D, 3D digital noise reduction
Backlight Compensation Support
USB Features
Windows XP/2003/VISTA/7/8/10、
Operate System
Linux、Mac OS
Color / Compression MJPEG/YUY2/H.264
 MJPEG: 1600x896 (default), 160x120,
Resolution
 YUY2: 1920x1080 (default), 160x120,
176x144, 320x240, 352x288, 640x480,
720x576, 1280x720, 1024x768,
1024x576, 960x540, 848x480, 800x600,
800x448, 640x360, 480x272, 424x240,
320x180, 1920x1080
176x144, 320x240, 352x288, 640x480,
1280x720, 960x540, 640x360, 480x272,
424x240, 320x180
