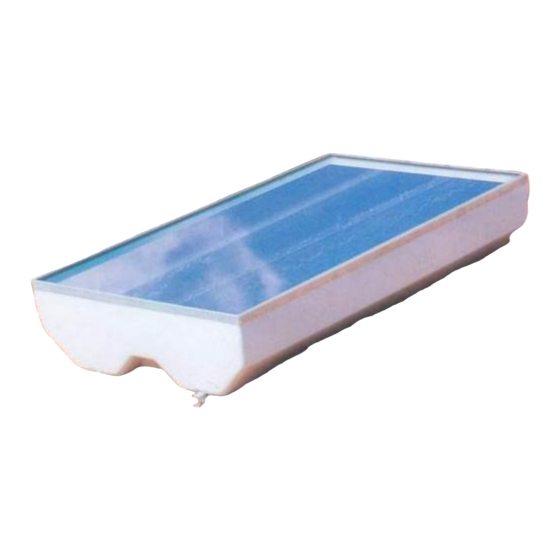

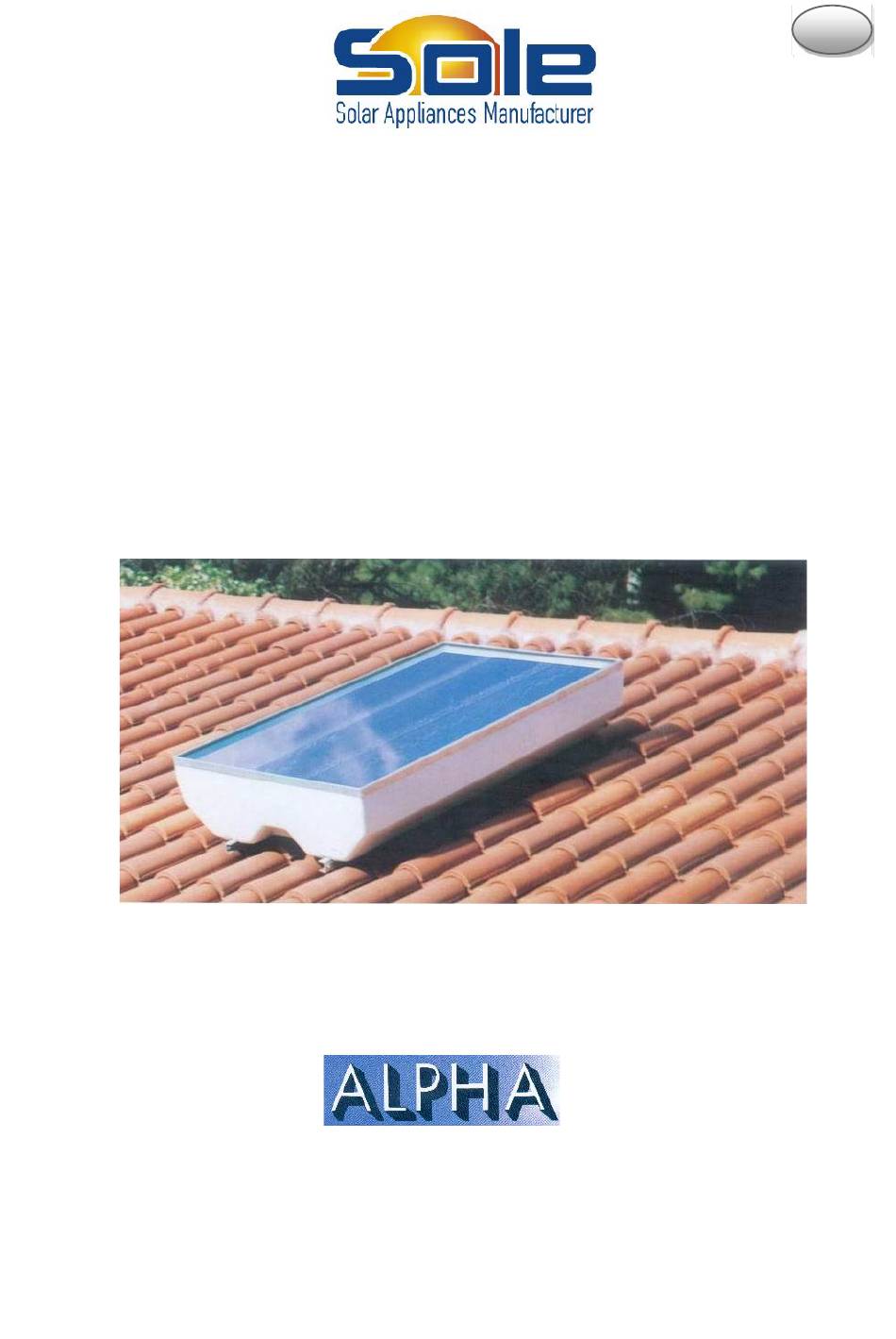

- Page 1 INSTALLATION MANUAL & USERS MANUAL INTEGRATED SOLAR WATER HEATER...
-
Page 3: Installation
1. INSTALLATION 1.1. Transfer the product to the exact location where it will be installed, and place it in an upright position (the pipe with the red rubber ring should be on the top), carefully standing it on its base (photo 1). Make sure there are no obstacles shading the collector (trees, high walls etc.). - Page 4 The suitable positions are as follows: The highest hole (tip) is for areas 25-35° latitude (inclination 25°) The middle hole is for areas 30-40° latitude (inclination 30°) The lowest hole for areas 35-50° latitude. (inclination 35°) b) If however maximum efficiency is of no concern for the whole year and enhanced efficiency is required during the summer (which will result in decreased efficiency during the winter) move the support points A (photo 2) one hole higher than the proper place which is described earlier.
-
Page 5: Plumbing Connection
1.4. Carefully lower the product so that the support frames touch the ground (photo 3) and provided this is the most suitable place (no obstacles etc.) secure it to the ground with 4 raw-plugs through the holes on the base of the support frames. Photo 3 2. -
Page 6: Maintenance
4. ELECTRIC HEATING ELEMENT CONNECTION (OPTIONAL) If desired, the electric heating element of the solar water heater can be connected as an auxiliary source for cloudy days or days that the quantity of hot water is not sufficient. The connector is located near the hot water pipe at point R (photo 3). - Page 7 6. USER’S INSTRUCTIONS Do not use the hot water the first day of installation even if it is a sunny day. Allow the product to heat the metal masses of the boiler which have a large thermocapacity. The second day, use the hot water after 14:30 hours.
- Page 8 SOLE S.A. SOLAR DOMESTIC APPLIANCES MANUFACTURER Lefktron & Laikon Agonon, 136 71 Acharnai – Athens – Greece Tel.: (+30210) 2389500 • Fax: (30210) 2389502 Email: export@sole.gr •www.sole.gr •www.eurostar-solar.com...
