Summary of Contents for Toolots LP Series

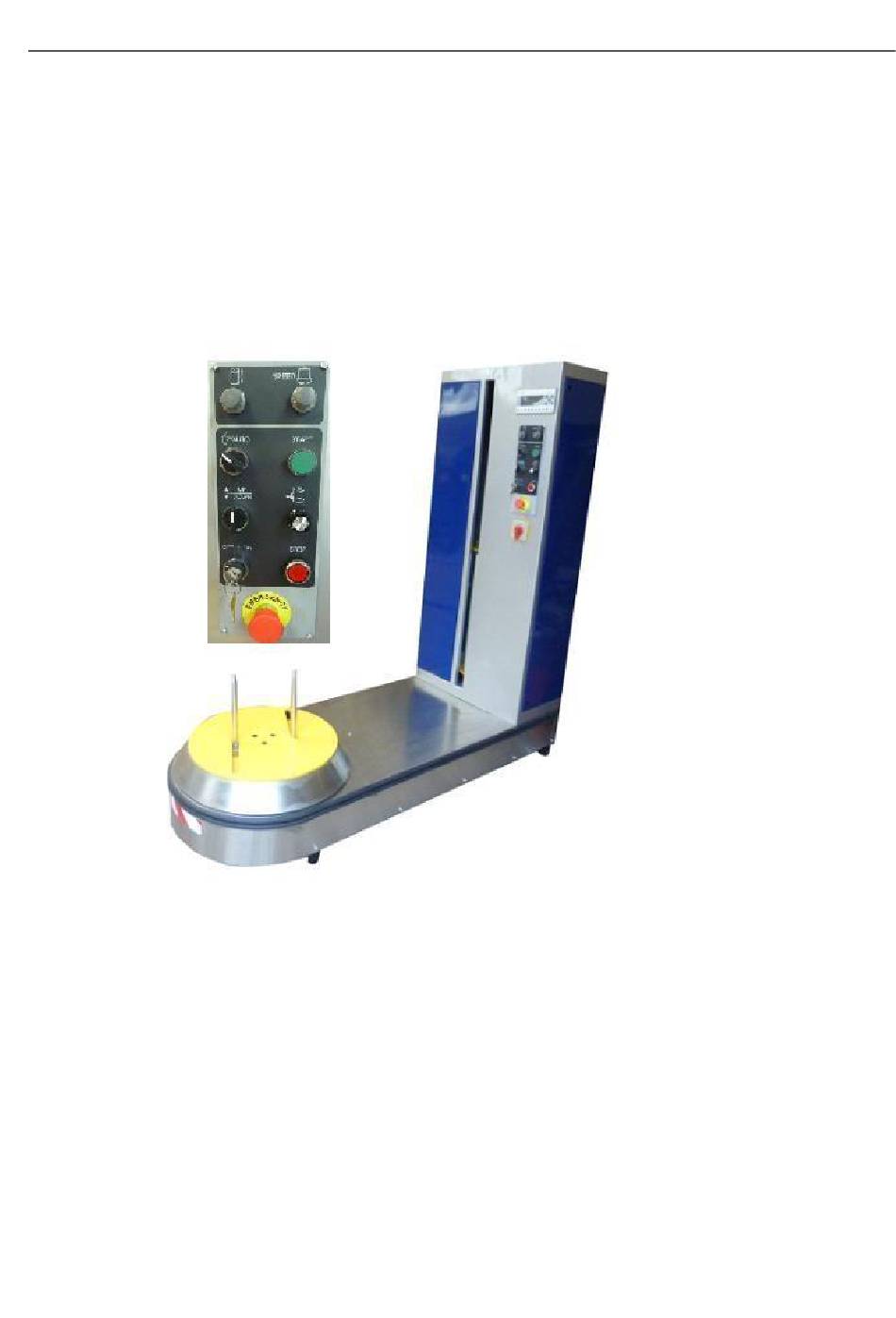

- Page 1 １ Instructions To The LP Series Luggage Wrapping Machines ORIGINAL INSTRUCTION...
-
Page 2: Table Of Contents
２ Contents §1 Information on the Luggage Wrapping Machines ..３ §2 Main Technical Index of the LP Series ......３ §3 Repair Guarantee to the Product ........４ §4 Before the Installation ............ ５ §5 Operating Instructions to the Controlling Panel ... 6 §6 Operating Instructions to the textscr ........ -
Page 3: Information On The Luggage Wrapping Machines
2. The packing cost will be reduced, a more convenient storage and transportation will be achieved and an easier recycle of the packing materials will be conducted with the application of the LP series luggage wrapping machines, thus ensuring a less polluted environment. This is currently one of the popular environmental-friendly packing methods. -
Page 4: Repair Guarantee To The Product
４ 2．Turntable loading：≤100 kg(special type exclusive) 3． Materials： Materials Width Thickness Inner Core of the Film Scroll Outer-Dia. ≤187 mm 500 mm 17-35μm 76mm(3 inch) LLDPE Stretching Film 4．Power Supply：AC220V/50HZ,0.75kw 20A -1p（(Conversion to AC 110V/60HZ)） 。 The power must be separated and fixed, any temporary wire or co-wire with other devices is prohibited. -
Page 5: Before The Installation
５ 7. The manufacturer bears no free requirements or improvements towards the packager that are excluded in this guarantee or the purchasing contract, except that the manufacturer is willing to do so to upgrade its products. §4 Before the Installation 1. -
Page 6: Operating Instructions To The Controlling Panel
６ the manufacture, please confirm before operation. 10. Switch on the power and turn on the air switch, power-controlling switch of the operating panel in the electric cabinet consecutively. The device will be ready for operation test and adjustment after it is powered and self-examined. §5 Operating Instructions to the Controlling Panel 1. - Page 7 ７ out, the machine should be reset to its initiative. 3. Start : a green instantaneous button with a light (as for machines with top-plate , the same button is a common one and there is no indicator light, other functions are normal.) This button functions in three aspects: 1).
-
Page 8: Operating Instructions To The Textscr
８ continues. §6 Operating Instructions to the textscr The introduction of the main menu Press “work load”, the menu go to the below interface Input the password: 8888,then you can check how many luggage wrapped. Note:1) when you want to check the work load,you must input the password everytime.2) when... - Page 9 ９ there is no luggage on the turntablw, the machine will not calculate the work load. Input the password, the menu go to the below interface: “work load”: how many luggage you wrapped “clear”: Clear the work load to 0 Press “manual”,the menu go to the below interface: “Turntable run”: press the button,the turntable will run...
- Page 10 １０ “Turntable stop” : press the esc,the turntable will stop running. Before go to “setting” ,first select the big and small. “big” means big luggage,”small ” means small luggage(the height not more than 500mm). Press 0 go to big luggage,press 1 go to small luggage, Press”setting”,the menu go to the below interface: “big parameter”...
-
Page 11: Equipment Maintenance
１１ “ Up cycle”(the layer you want to wrap at the top of the loads):press the set.on the textscr, the cursor will glitter, then you can input the figure. “Down cycle”(the layer you want to wrap at the bottom of the loads):Press the set .on the textscr.the cursor will glitter, then you can input the figure “Up-down”(the layer of Traverse, up-down) “small parameter”setting the parameter of the small luggage:... -
Page 12: Put Into Use
１２ §8 Put into Use 1 . Manual Operation: Load goods on the turntable and put the film scroll on the scroll seat. Thread the film properly in accordance with the requirements (see film-threading methods §9-2) and then start the turntable generator to activate the turntable and the film will wrap the goods. -
Page 13: Performance Of The Functions & Others
１３ §9 Performance of the Functions & Others 9-1．Error in Counting The counting begins when the film system reaches its highest location in the auto-process, if at this time the sensor and the testing point are not at the same place, usually the roof circle amount does not appear as a integer. -
Page 14: Safety In The Use
１４ 0-40% Min. memory 40-75% Memory begins to react 75-100% Medium backpressure 100-200% Backpressure that easily attains max. percentage 200-250% It is suggested to chose proper films and stretching equipments to attain max. stretching 250%+ Affected by the stress, the film begins to intensely loose 300%+ Memory damaged , the film only equals to plastic film 9-3-2 Pre-Stretch:... -
Page 15: Noise And Vibration
１５ the film system when the roller is running! 6. The operator should stay in a safe place and keep a certain distance from the rotating-plate during the process of the machine. To avoid any hurt on the people in case of goods falling-down, the operator should not approach the machine until a process is completed and the machine stops. -
Page 16: Packing List
１６ Packing list Luggage wrapping machine Name Model Unit MARK Luggage wrapping LP600F-L machine Attachment tools SUIT Fuse 3:10A 1:2A Stretch film ROLL instruction Instantaneous Button Potentiometer...
