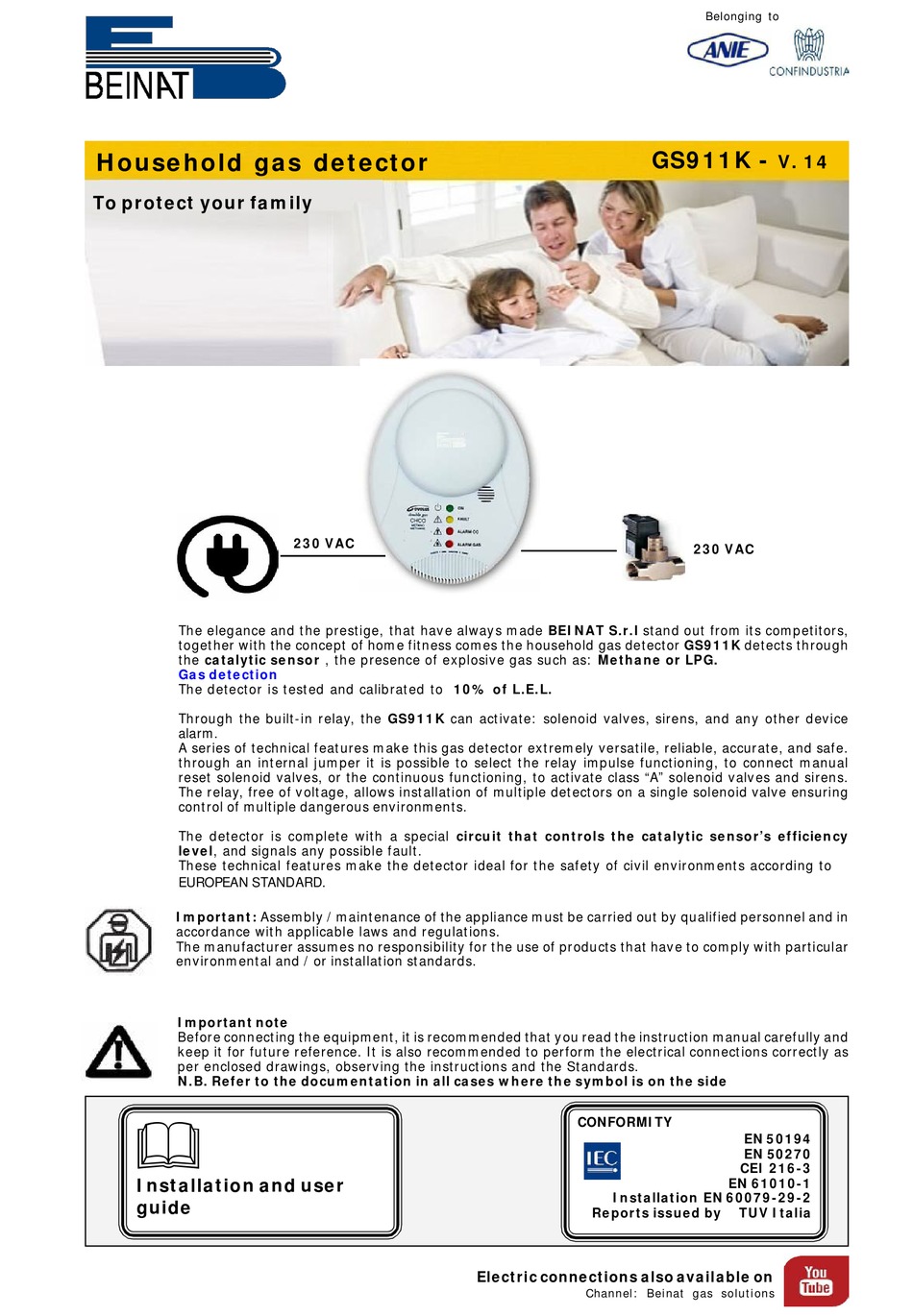

Household gas detector
To protect your family
The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors,
together with the concept of home fitness comes the household gas detector GS911K detects through
the catalytic sensor , the presence of explosive gas such as: Methane or LPG.
Gas detection
The detector is tested and calibrated to 10% of L.E.L.
Through the built-in relay, the GS911K can activate: solenoid valves, sirens, and any other device
alarm.
A series of technical features make this gas detector extremely versatile, reliable, accurate, and safe.
through an internal jumper it is possible to select the relay impulse functioning, to connect manual
reset solenoid valves, or the continuous functioning, to activate class "A" solenoid valves and sirens.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve ensuring
control of multiple dangerous environments.
The detector is complete with a special circuit that controls the catalytic sensor's efficiency
level, and signals any possible fault.
These technical features make the detector ideal for the safety of civil environments according to
EUROPEAN STANDARD.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation and user
guide
230 VAC
CONFORMITY
Installation EN 60079-29-2
Reports issued by
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
GS911K -
V. 14
230 VAC
EN 50194
EN 50270
CEI 216-3
EN 61010-1
TUV Italia
Advertisement
Table of Contents
Summary of Contents for Anie Beinat GS911K
- Page 1 Belonging to GS911K - Household gas detector V. 14 To protect your family 230 VAC 230 VAC The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors, together with the concept of home fitness comes the household gas detector GS911K detects through the catalytic sensor , the presence of explosive gas such as: Methane or LPG.
- Page 2 Precautions CHECK the integrity of the probe after having removed it from the box. Check that the data written on the box correspond to the type of gas used. When doing the electrical connections, follow the drawing closely. Any use of the detector for purposes other than the intended one is considered improper, and as a result of which BEINAT S.r.l.
- Page 3 Components and commands 1) MAINS connected indication LED (ON). 2) FAULT LED and decadence of the functioning period If this LED turns on, it means that the gas detection catalytic sensor is not working efficiently and must be replaced by an authorized service center. 3) ALARM LED.
- Page 4 Electrical connections WARNING Before connecting to the mains power, ensure the voltage is correct. Carefully follow the instructions and the connections according to Regulations in force. An automatic disconnetting switch (appropriately identified as the detector sectioning device) must be incorporated in the electrical system, suitably located and easily accessible. Connection scheme of GS911K detector 1) Closed the relay works in...
- Page 5 One or more detectors with a valve normally open 230VAC Buzzer Buzzer Wiring Wiring 1 2 3 4 5 1 2 3 4 5 Power supply 230/240 VAC Diagram of connection with a valve normally close 230VAC Buzzer Wiring 1 2 3 4 5 Power supply Elettrovalvola NC 230/240 VAC...
- Page 6 Installation measures and positioning Currently national standards enforceable in the installation country covering the installation and use of gas powered equipment are to be respected, as are standards covering smoke dispersion and ventilation of enclosed areas, even though gas detection equipment is installed. Essential element for the correct functioning of the detector is its correct installation.
- Page 7 Turn on and testing 1)By providing the proper voltage with an external switch, which must be provided with safety fuses, you will see that the POWER LED, wait 60 seconds, after this time the GS911K is ready to detect. 2)Pressing the TEST button, you get the simulation of a gas leak and the detector performs the following actions: The LED ALARM will turn on and the relay will change its working state after 5 seconds.
- Page 8 INSURANCE. This device is insured by the SOCIETÀ REALE MUTUA for the PRODUCT'S GENERAL LIABILITY up to a maximum of 1,500,000.00 EURO against damages caused by the device in case of failures in functioning. WARRANTY. The warranty term is 3 years from manufacturing date, in agreement with the following conditions.
