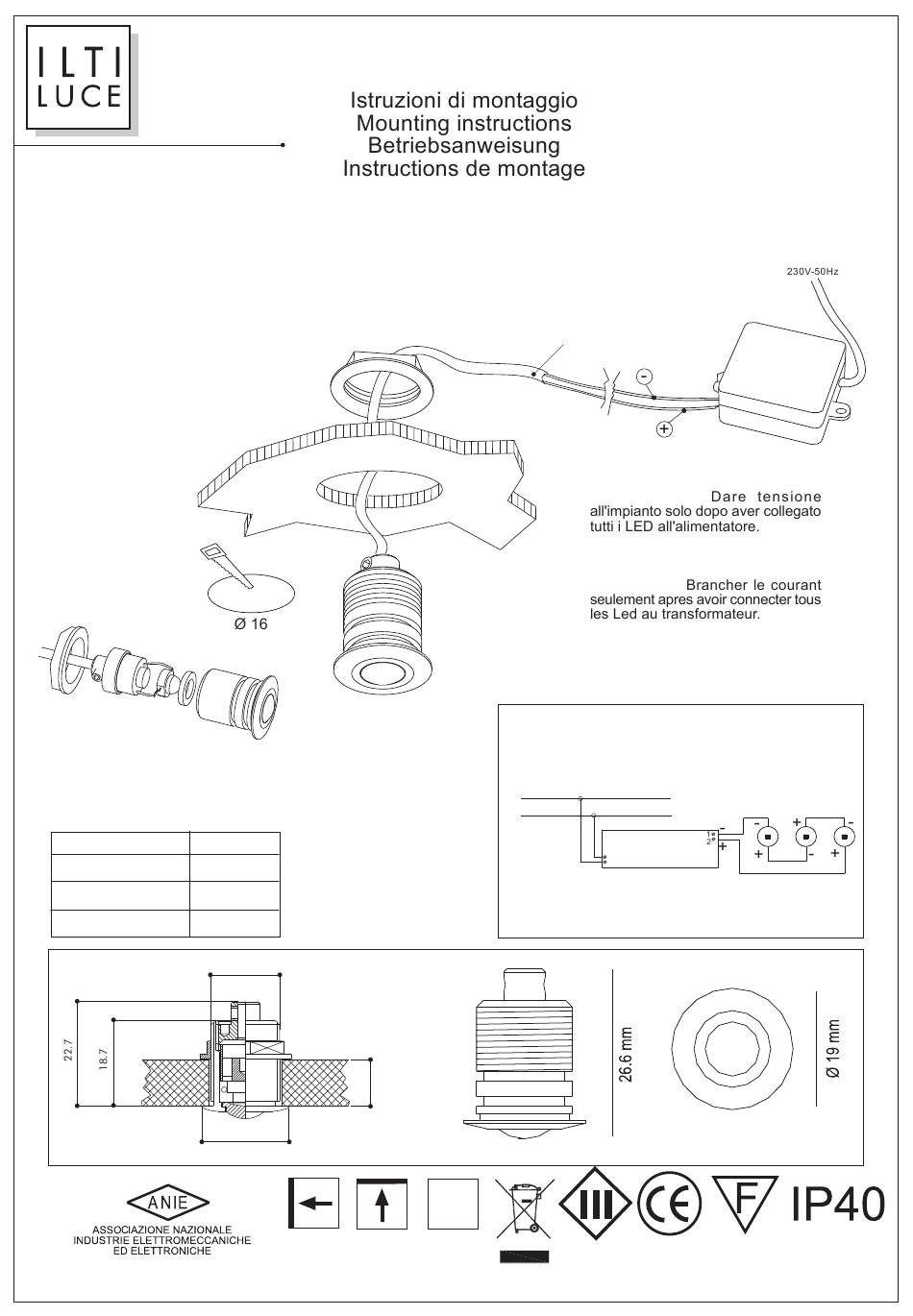

Ilti Luce BLUX06016250AA Mounting Instructions

DOCUMENTO CONFIDENZIALE
CONFIDENTIAL DOCUMENT
STRENG VERTRAULICH
DOCUMENT CONFIDENTIEL
BLUX06016250AA - bianco/white/weiss/blanc 5500° K
BLUX0601625WAA - bianco/white/weiss/blanc 3200° K
BLUX06016251AA - blu/blue/blau/bleu
BLUX06016252AA - verde/green/vert/gruen
BLUX06016253AA - giallo/yellow/gelb/jaune
BLUX06016254AA - rosso/red/rot/rouge
ALIMENTATORI IN SERIE
FEEDER IN SERIAL CONNECTION
SPEISER IN SERIAL VERBINDUNG
ALIMENTATION EN SERIE
WALIMLED 01350
n° 1 Lux 06
WALIMLED 03350
n° 3 Lux 06
WALIMLED 08350
n° 8 Lux 06
WALIMLED 12350
n° 12 Lux 06
LUX 06
M15X1
min 1mm
max 15mm
Ø 19
L=0,2 mt (2x0,35 mm )
ATTENZIONE:
CAUTION: Connect the fitting to the
power supply only after connecting
all Led to the driver.
ATTENTION:
ACHTUNG: Verbinden Sie die
Anlage nur nach alle Leds an der
speiser verbindet sind.
ITA - ESEMPIO DI COLLEGAMENTO (connessione in serie)
ENG-EXAMPLE OF CONNECTION (serial connection)
DEU-VERBINDUNGSBEISPIELE (serial verbindung)
FRA- EXEMPLE DE CONNECTION (connection en serie)
LINEA 110 V 50/60 Hz
LINEA 230 V 50/60 Hz
L
N
WALIMLED03350
350mA
1W
si consiglia la conservazione delle seguenti istruzioni
we suggest you to keep this copy for your files
wichtige auskunfte fuer ihre benutzung
merci de garder ces instructions pour reference
2
WALIMLED03350
max n°3 led
