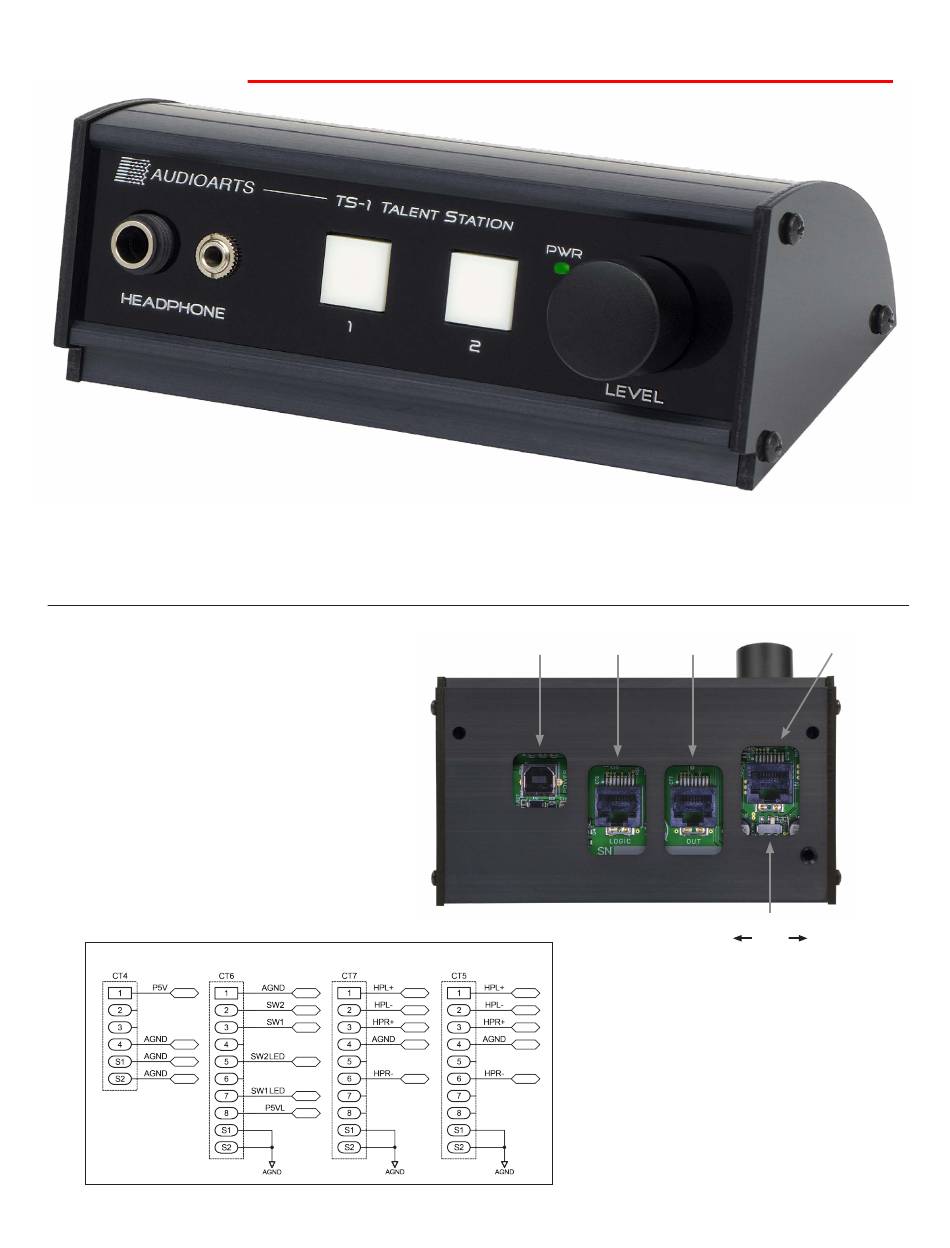

Wheatstone Corporation Audioarts Talent Station TS-1 Quick Start Manual

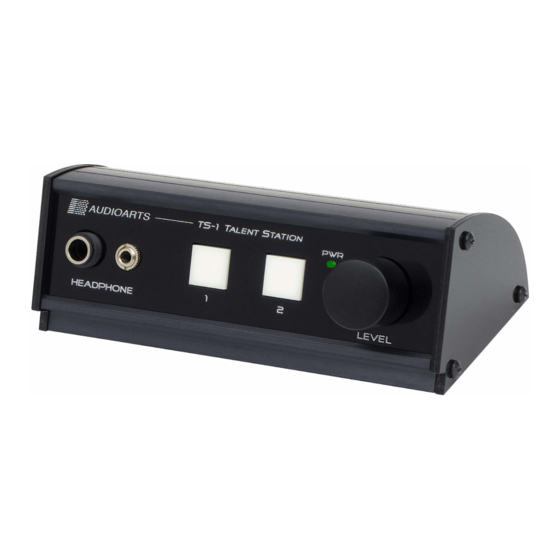

The Audioarts TS-1 is a compact countertop unit housing a USB powered
headphone amplifier, 1/4" and mini stereo output jacks, two panel switches with
internal LEDs, a power light and a level control.
WIRING is through cutouts in the bottom
of the unit: input, output and logic RJ45
connectors, plus USB power. A HI/LO gain set
switch is located below the input connector.
USB LOGIC
CONNECTOR
PINOUTS
v070220
Audioarts TS-1 Talent Station
OUTPUT
POWER LOGIC
INPUT
CONNECTIONS: The USB port provides
+5VDC power to the amp. The LOGIC
RJ45 lets you to use the two front
panel switches for TB, COUGH and
other functions. INPUT and OUTPUT
connectors follow standard Studio Hub
RJ45 analog audio pinouts. The OUTPUT
feed allows you to daisychain the unit's
source audio to other devices.
1
OUTPUT INPUT
GAIN SWITCH
LO/HI
© 2020 by Wheatstone Corporation
