Booma RC
Crimping tool
How to crimp servo terminals
Using the crimping tool is very simple. What I do is this:

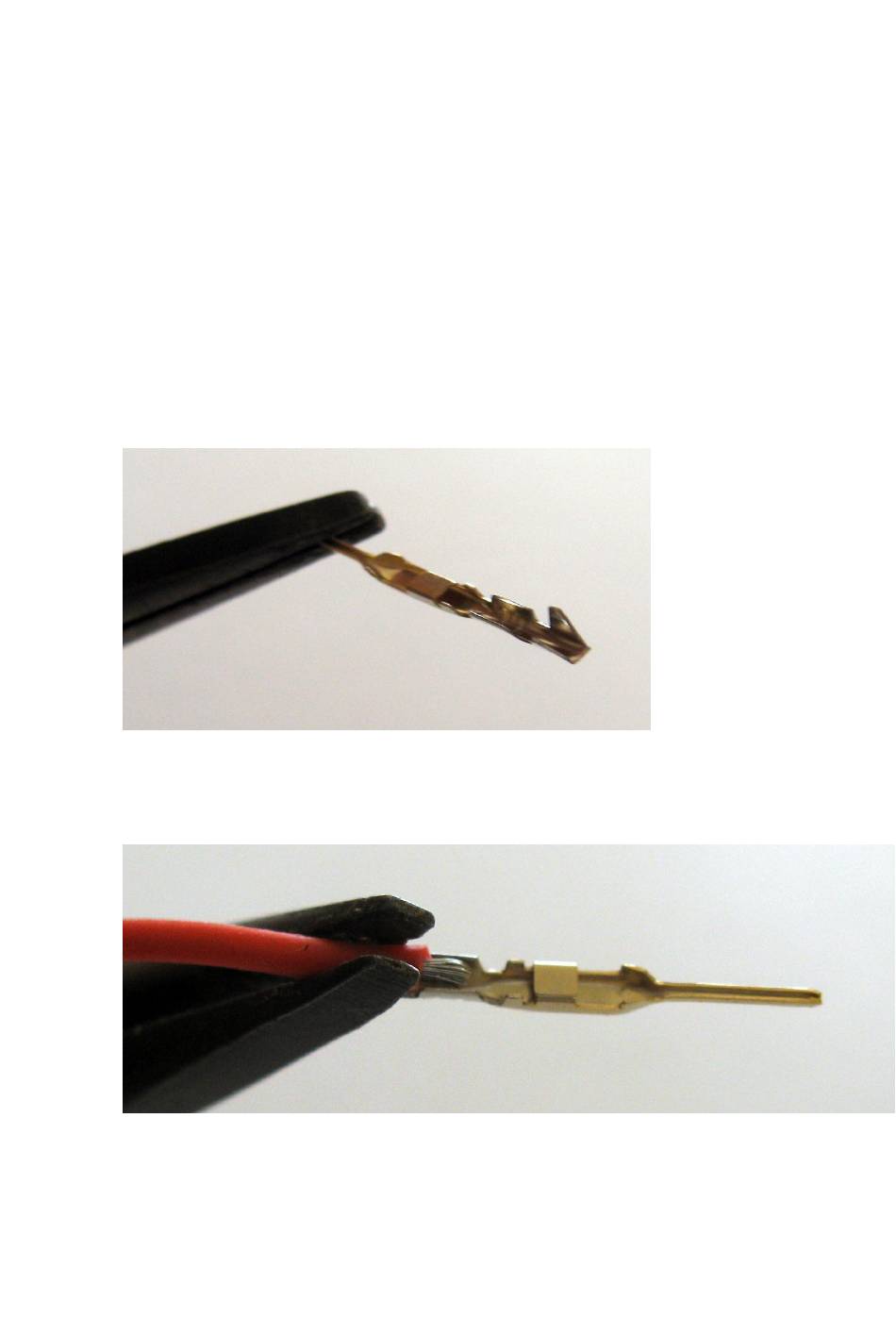

1) Observe the crimp terminal and you will see a crimping area in the middle of the terminal
and a slightly larger crimp area at the end of the crimp terminal.
2) Strip the wire just enough so that the bare wire will sit in the middle crimp area of the
terminal.
3) The back part of a crimp terminal (when crimped) will grab the insulation.
4) Before crimping, place the crimp terminal on the wire and gently squeeze the part of the
terminal that connects to the insulation of the wire with pliers. This will stop the terminal
from falling off the wire during the crimping process.
Advertisement
Table of Contents
Summary of Contents for Booma-RC BRC126
- Page 1 Booma RC Crimping tool How to crimp servo terminals Using the crimping tool is very simple. What I do is this: 1) Observe the crimp terminal and you will see a crimping area in the middle of the terminal and a slightly larger crimp area at the end of the crimp terminal. 2) Strip the wire just enough so that the bare wire will sit in the middle crimp area of the terminal.
- Page 2 5) Place the crimp terminal with wire into the larger of the crimping teeth and press the crimp tool closed. 6) After crimping you can (if necessary) place the crimped terminal into the smaller of the crimping teeth and crimp again. You may find the crimped terminal gets a little stuck. This is OK, just use a hobby knife to push the terminal out of the crimping tool.
- Page 3 7) Here is the final result after crimping the wire. 8) I do not recommend soldering wire to terminals as the solder can wick up the wire and cause a vibration break in the wire where the solder wicking ends. 9) Slide the crimped terminal into the plastic servo connector housing and ensure that the terminal locks in place in the housing.
