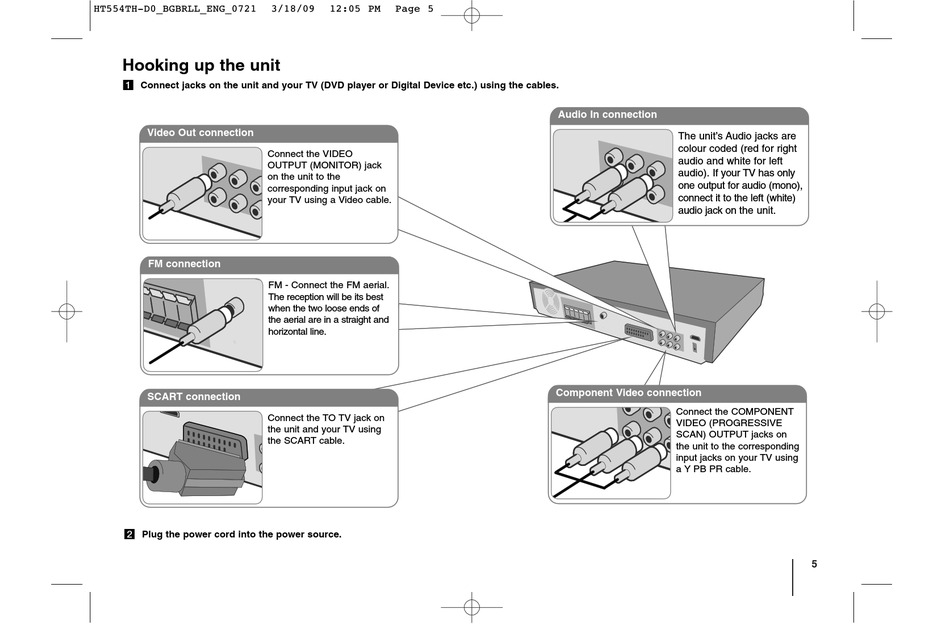

Hooking up the unit

a Connect jacks on the unit and your TV (DVD player or Digital Device etc.) using the cables.
Video Out connection
Connect the VIDEO
OUTPUT (MONITOR) jack
on the unit to the
corresponding input jack on
your TV using a Video cable.
FM connection
FM - Connect the FM aerial.
The reception will be its best
when the two loose ends of
the aerial are in a straight and
horizontal line.
SCART connection
Connect the TO TV jack on
the unit and your TV using
the SCART cable.
b Plug the power cord into the power source.
12:05 PM Page 5
Audio In connection
The unit's Audio jacks are
colour coded (red for right
audio and white for left
audio). If your TV has only
one output for audio (mono),
connect it to the left (white)
audio jack on the unit.
Component Video connection
Connect the COMPONENT
VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on
the unit to the corresponding
input jacks on your TV using
a Y PB PR cable.
