- Page 1 DVD PLAYER Model: 100008761OA PRODUCT GUIDE October 27, 2020_v1...
- Page 2 WARNING: CAUTION T O R E D U C E T H E R I S K O F F I R E O R RISK OF ELECTRIC SHOCK ELECTRIC SHOCK, DO NOT EXPOSE THIS DO NOT OPEN PRODUCT TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF WARNING: ELECTRIC SHOCK, DO NOT REMOVE...
- Page 3 5 ) Do not use this apparatus near water. 12 ) Use only with the cart, stand, tripod, Do not use this product near water and bracket, or table specified by the manufacturer, moisture, for example: near a bathtub, or sold with the apparatus. When a cart is washbowl, kitchen sink or laundry tub;...
- Page 4 16 ) Power lines 20 ) Service An outside antenna system should not be Do not attempt to service this product yourself located in the vicinity of overhead power lines as opening or removing covers may expose or other electric light or power circuits, or where you to dangerous voltage or other hazards.
-
Page 5: Notes On Handling
Wa r n i n g : C l e a n i n g a n d a d j u s t m e n t o f 25 ) Note to CATV system installer lenses and /or other components of playback This reminder is provided to call the CATV mechanism should be performed by a qualified system installer's attention to Article 820-40... -
Page 6: About Discs
ABOUT DISCS The region number for this DVD Player is: 2 See the following page for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: DISC TYPES: Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. -
Page 7: Location Of Controls
LOCATION OF CONTROLS FRONT VIEW REAR VIEW 1. Disc Door 8. Power Cord 9. Y,Pb/Cb,Pr/Cr Output Jacks 2. Display 3. Remote Sensor 10. COAXIAL Jack 11. HDMI Output Port 4. TTS (Text to Speech) Button 5. Open/Close Button 12. Audio L (Left) Jack 6. -
Page 8: Remote Control
REMOTE CONTROL PROG ANGLE SUBTITLE VIDEO 0/10 GOTO PREV NEXT PLAY/PAUSE STOP TITLE SETUP ENTER RETURN MENU MUTE AUDIO REPEAT RESET ZOOM SLOW Client code: 00FF ***When using a universal remote with this product, Please enter: 00FF Power Button Open/Close Button 2. -
Page 9: Battery Installation (Remote Control)
BATTERY INSTALLATION (REMOTE CONTROL) Battery installation: 1. Press the tab on the battery door and lift it off. 2. Install two (2) x AAA size batteries ( included) into the battery compartment as the figure on right and the polarity markings inside battery compartment. - Page 10 CONNECTIONS 1.Connecting through Video, L&R Jacks. White Yellow Audio/Video Cable (not included) Video input jack (Yellow) Audio left channel input jack (White) Audio right channel input jack (Red) Video Yellow White 2.Connecting through COAXIAL Jack. White Yellow Coaxial Cable (Not included) Audio/Video Cable (not included) Video input jack (Yellow) Audio left channel input jack (White) (Do not plug)
- Page 11 CONNECTIONS 3.Connecting through Y, Pb/Cb, Pr/Cr (YUV) Jacks. (Cable not included) White White (Cable not included) 4.Connecting through HDMI output port. (HDMI Cable not included)
- Page 12 OPERATIONS 1. Connect the Adapter to the wall outlet. 2. Press the button on the unit or remote control to power on the unit. 3. Press the button on the unit or remote control to open the disc door, place the disc on the center spindle with the press the button again to close the disc door.
- Page 13 OPERATIONS Press to power on the unit from standby mode, press again to turn to standby mode. ANGLE During playback a DVD disc with multi-angle recording, press repeatedly to select the viewing angle. disc). (Function depends on the recording of SUBTITLE During DVD playback, press repeatedly to select the desired subtitle (Function depends on the recording of disc).
- Page 14 OPERATIONS RESET Press to reset to default settings. VOL +/– Press to adjust volume level. (On Screen Display) During playback, press repeatedly to display playing status or turn it off. (PAL/NTSC) Press repeatedly to select and set the color system to NTSC, PAL or AUTO to match the color system of the connected TV.
- Page 15 SETUP Setting Menus: Press the SETUP button, the setting menu will appear on the screen as below. Using the Direction buttons to select and hightlight the function you need to set or reset. Press the ENTER button to enter or confirm the selection. After setting, press SETUP button to save the settings and exit. System Se TV SYSTEM SCREEN SAVER...
- Page 16 ~ Rate levels: 1. KID SAFE: Kid safe 2. G: All ages 3. PG: Parental Guidance 4. PG 13: Parental Guidance less than 13 years old 5. PG-R: Under 17 years old, Parental Guidance suggested 6. R: Under 17 years old, Parental Guidance strongly 7.
-
Page 17: Audio Setup
Audio AUDIO OUT DOWNMIX VOICE GUIDE 1. If AUDIO OUT is selected, using the Direction and ENTER buttons to set it to SPDIF/OFF, SPDIF/RAW or SPDIF/PCM. SPDIF/OFF: Digital audio output off. SPDIF/RAW: When the player is connected to an amplifier through the coaxial cable. SPDIF/PCM: When the player is connected to a 2 channel digital stereo amplifier. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE Caring for Discs Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to contact with the shiny, unprinted side of the disc. ● Do not attach adhesive tape, stickers, etc. to the disc label. ●... -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the following before requesting service: POSSIBLE SOLUTION SYMPTOM POSSIBLE CAUSE No power. Adapter plug unplugged. Plug the power plug in the outlet. Unplug the unit and wait it about one to Condensation has formed. two hours until the player is dry. Disc can not be play. -
Page 20: Specifications Are Subject To Change Without Notice
SPECIFICATIONS Power Source: AC Power Input: AC100-240V~ 50/60Hz, 0.5A Max DC Power Output: DC 5.0V 1.2A Disc Compatibility: DVD/CD/CD-R/CD-RW/DVD±R/DVD±RW Connection: Composite, Coaxial, HDMI, Component Maximum operating temperature of the product:40℃ SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Power adapter informations: Manufacturer: Shenzhen Shi GuangKaiYuan Technology Ltd Model:GKYPS0120050EU/GKYPS0120050UK Technical data: AC Input: 100~240V, 50/60Hz, 0.5A max，DC Output: 5V 1.2A... - Page 21 ACCESSIBILITY How to Enable and Disable Text-to Speech (TTS) on my DVD player? Your DVD Player has a built-in Audio Guide, which includes Text-to-Speech and Video Description, which assist users to navigate the on-screen menus. Text-to-Speech, or TTS, is a form of speech synthesis that converts written text into a spoken voice output.
-
Page 22: Declaration Of Conformity
DECLARATION OF CONFORMITY Hereby, declares that the radio equipment type Onn DAB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.asda.com DISPOSAL The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE).
Need help?
Do you have a question about the 100008761OA and is the answer not in the manual?
Questions and answers

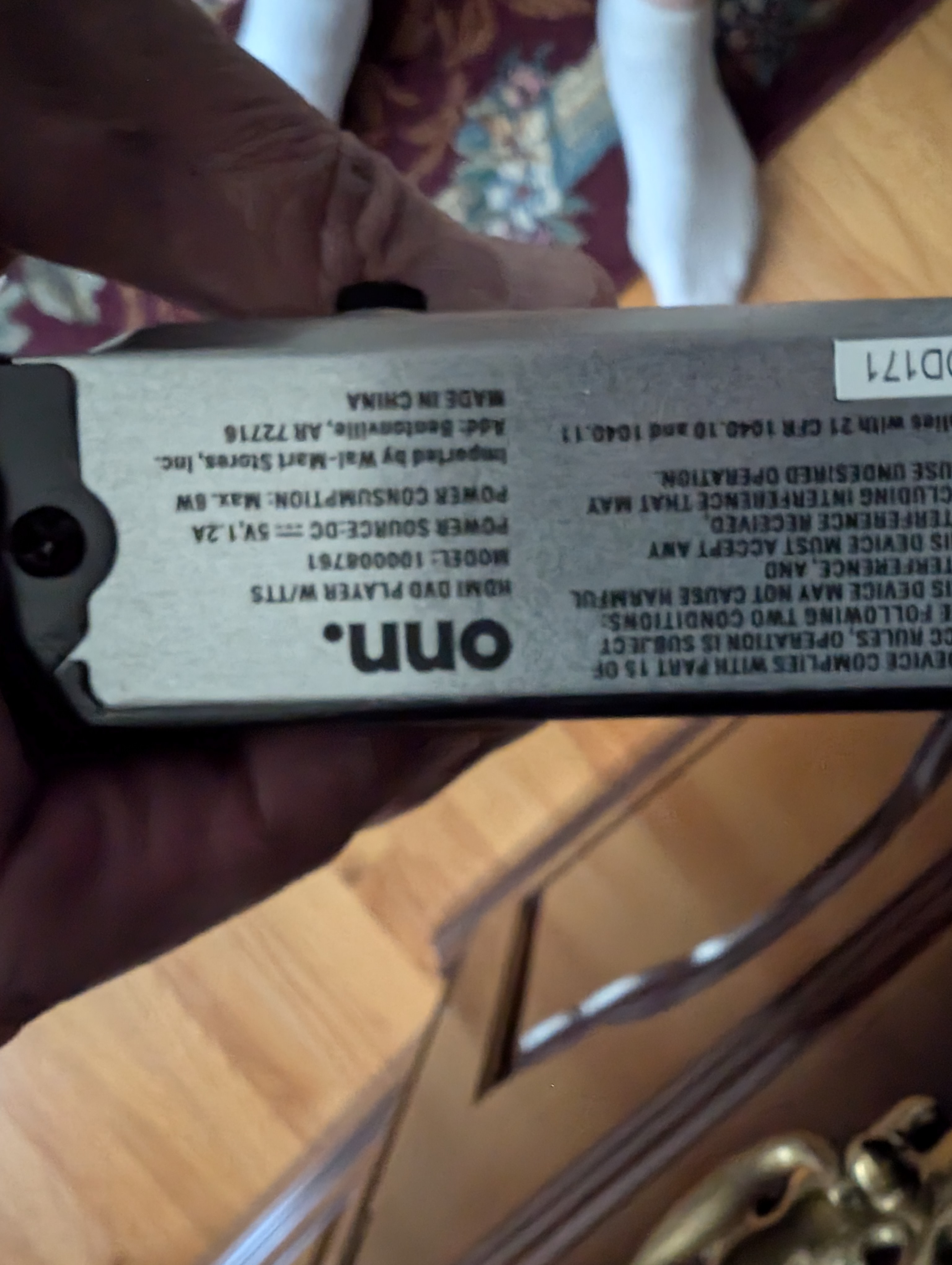

I need to program a remote to work with my ONN DVD player 1000000-8761. What code do I use. Thank you
