Summary of Contents for EchoMaster Pro PMON-7022-AHD

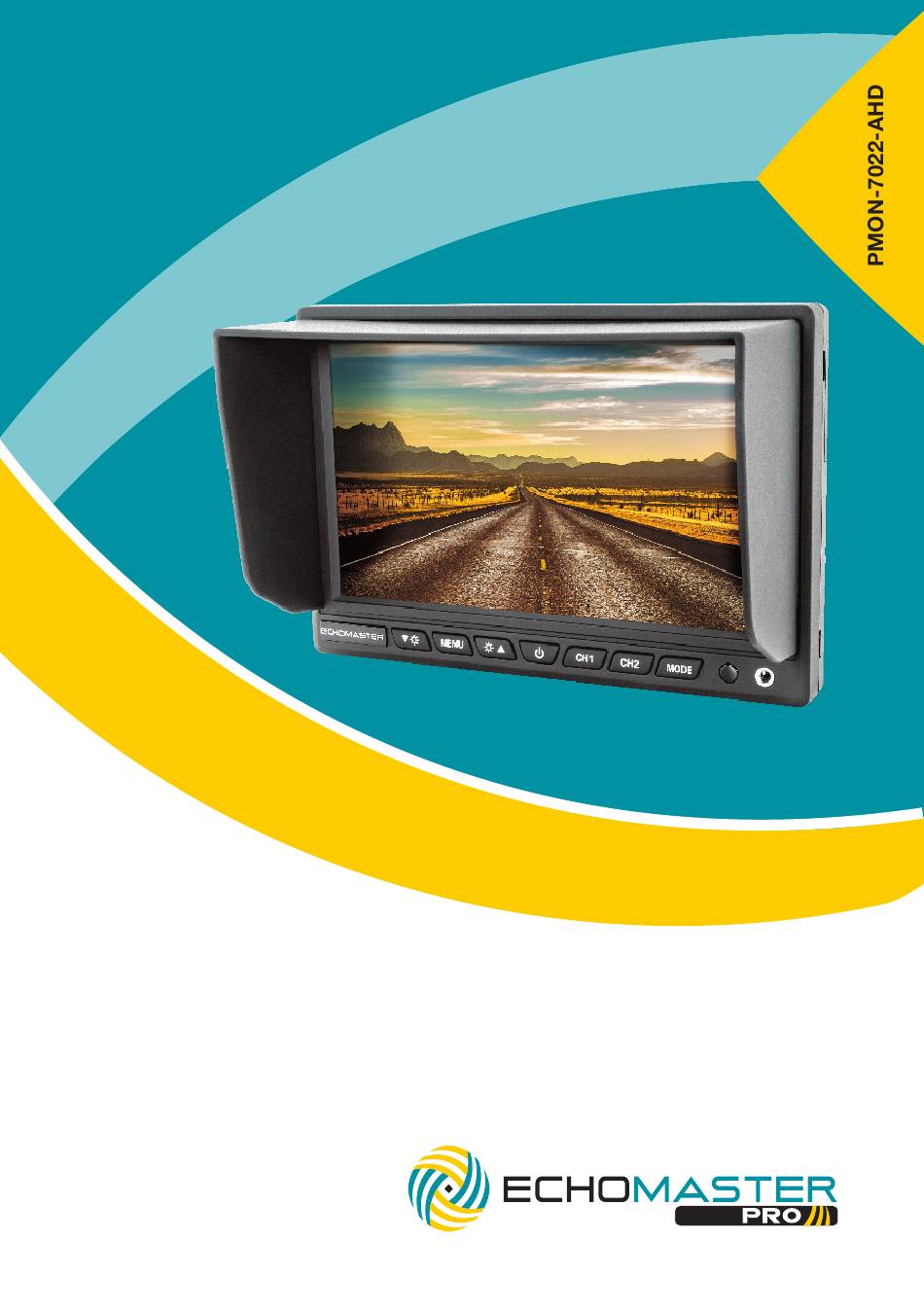

- Page 1 7” Dash Mount 2 Input AHD Monitor User Manual...
-
Page 2: Box Contents
Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Introduction Thank you for purchasing your EchoMaster automotive monitor. Your monitor displays clear, Analog High Definition (AHD) camera images of the area surrounding your vehicle, meaning your maneuvering and vehicle awareness will be greatly improved. -
Page 3: Fitting Instructions
Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Fitting Instructions Choose a suitable mounting location dependent on the application. This location should not interfere with the driver’s normal vision of the road. Ensure that there are no wiring harnesses or hoses/pipes located behind this panel before drilling any holes. - Page 4 Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Button Reference (Monitor) 1. Sunshade 7. CH2 2. Down Arrow 8. MODE Button 3. MENU Button 9. IR for Remote 4. Up Arrow 5. POWER Button 6. CH1 Button Reference (Remote) 1.
- Page 5 Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Wiring Diagram & Pin Out Dimensions (mm/in) email - support@aampglobal.com tel - 866-931-8021...
-
Page 6: Menu Instructions
Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Operating Instructions Power To turn the monitor ON and OFF use the POWER button. The monitor has a last state memory function. If the monitor was in standby mode when the Ignition... -
Page 7: Menu Options
Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Menu Options Image Brightness [0-100 / Default: 50] Contrast [0-100 / Default: 50] Saturation [0-100 / Default: 50] Reset [Press DOWN q to reset values when highlighted ] System Language [English, Spanish, French, Italian, German / Default: English]... -
Page 8: Specifications
Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor Specifications PMON-7022-AHD Screen Size 7” Aspect Ratio 16:9 Power Supply 12V-24V Resolution 1024xRGBx600 Luminance 300 cd/m2 Contrast 500:1 TV Format PAL/NTSC OSD Languages Video Inputs Audio Inputs Triggers Current Draw... - Page 9 Installation Guide PMON-7022-AHD 7” Dash Mount 2 Input AHD Monitor email - support@aampglobal.com tel - 866-931-8021...
- Page 10 Installation Guide...
- Page 11 Installation Guide email - support@aampglobal.com tel - 866-931-8021...
- Page 12 email - support@aampglobal.com tel - 866-931-8021 EchoMaster is a Power Brand of AAMP Global REV 110619 EchoMaster.com...
