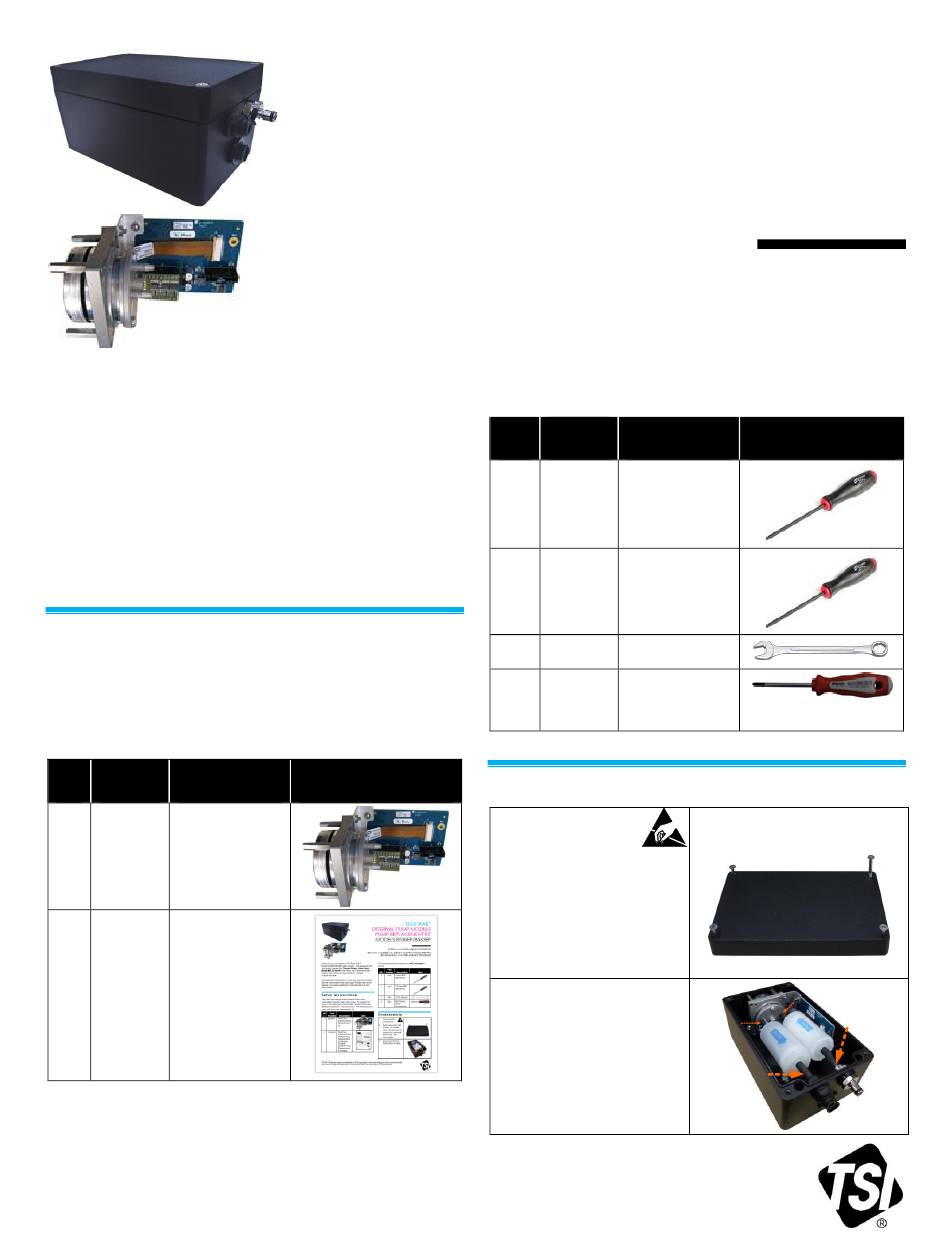

TSI Instruments DUSTTRAK 8530EP Quick Start Manual

Thank you for purchasing a TSI
Model 8530EP/8533EP dust monitor. This guide will help
you quickly replace the Thomas Rotary Vane Pump
Model #BL-G 085 M in the DustTrak™ External Pump
Module that comes with the DustTrak™ Model
8530EP/8533EP.
More detailed information is in the user manual provided
with the instrument in the carry case. Please refer to the
manual if you have questions on the operation of your
dust monitor.
S e t u p I n s t r u c t i o n s

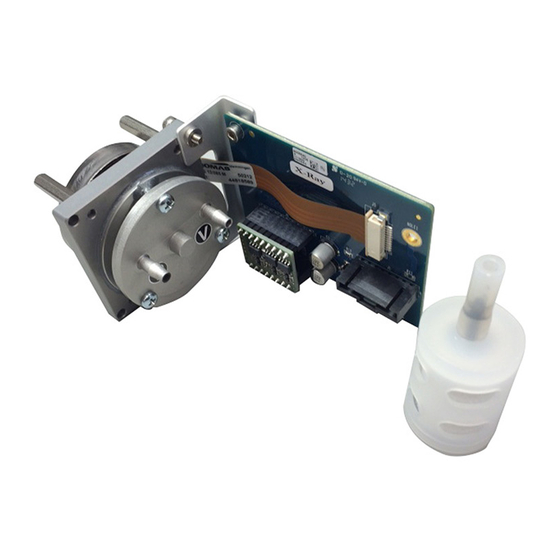

The DustTrak External Pump Module has a user-
replaceable long-life rotary vane pump. To replace the
pump in the External Pump Module, carefully follow the
detailed procedures in this document. The following parts
come with the pump replacement kit:
Qt Part
y. Number Description
1 854043 DustTrak
External Pump
Replacement
Kit
1 6006603 DustTrak
External Pump
Module Pump
Replacement
Kit Models
8530EP /
8533EP Pump
Replacement
Procedure
________________
TSI and TSI logo are registered trademarks of TSI Incorporated in the United States and may be protected under
other country's trademark registrations. DustTrak and TrakPro are trademarks of TSI Incorporated.
EXTERNAL PUMP MODULE
SEE MANUAL 6008408 MNL 8540 ENV DUSTTRAK PHOTOMETER FOR
®
DustTrak™
Item
PUMP REPLACEMENT KIT
MODELS 8530EP/8533EP
EXTERNAL PUMP REPLACEMENT PROCEDURE
ENVIRONMENTAL PUMP REPLACEMENT PROCEDURE
The following tools are required but NOT included in
the kit:
Part
Qty. Number Description
1 N/A 2 mm HEX
Ball Driver
1 N/A 2.5 mm HEX
Ball Driver
3/16" Wrench
1 N/A
1 N/A #2 Phillips
Head
Screwdriver
D i s a s s e m b l y
1. Observe ESD
precautions.
2. Fully loosen four (4)
screws on module
cover. Screws
DO NOT need to be
removed from cover.
Set cover aside.
3. Disconnect tubing
from ports on pump.
DUSTTRAK
™
Item
