ML-1 LCD and Touchscreen Replacement Instructions
1. Turn off and unplug the game.
2. Unlock and remove the rear door.
3. Remove the eight screws securing the monitor bezel (see Figure 1), and open the bezel.
4. Place something underneath the monitor bezel to support it, and carefully remove the screw and
washer securing the strain relief cord (see Figure 2).
LCD POWER CABLE
CONNECTION
VGA CABLE
CONNECTION
TOUCHSCREEN
CONTROLLER CABLE
CONNECTION
CABLE CLAMP
CREDIT CARD
READER CABLE
CREDIT CARD
READER
PM0821-01
EIGHT SCREWS
SECURING MONITOR BEZEL

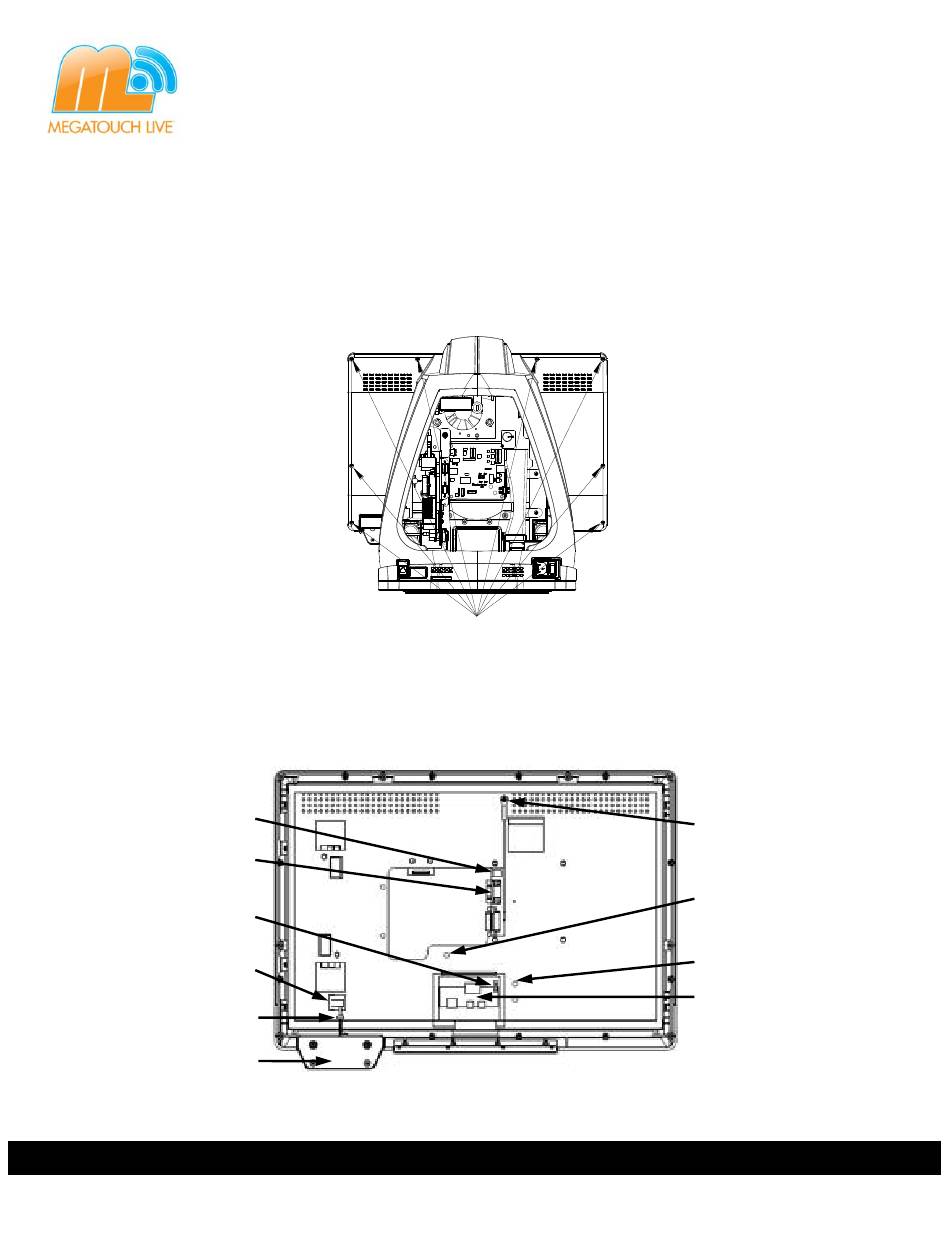

FIGURE 1 – REAR VIEW OF ML-1 WITH REAR DOOR REMOVED
FIGURE 2 – INSIDE VIEW OF LCD ASSEMBLY
Casual Games | Emerging Media
www.megatouch.com
SCREW AND
WASHER SECURING
STRAIN RELIEF CORD
TIE WRAP SECURING
TOUCHSCREEN
CONTROLLER AND
CREDIT CARD
READER CABLES
TIE WRAP SECURING
TOUCHSCREEN
CONTROLLER CABLE
TOUCHSCREEN
CONTROLLER
Page 1 of 3
Advertisement
Related Manuals for MEGATOUCH ML-1
Summary of Contents for MEGATOUCH ML-1
- Page 1 EIGHT SCREWS SECURING MONITOR BEZEL FIGURE 1 – REAR VIEW OF ML-1 WITH REAR DOOR REMOVED 4. Place something underneath the monitor bezel to support it, and carefully remove the screw and washer securing the strain relief cord (see Figure 2).
- Page 2 An easy way to tell if the touchscreen is positioned correctly is to flip the touchscreen controller over (as if it Casual Games | Emerging Media PM0821-01 Page 2 of 3 www.megatouch.com...
- Page 3 21. Replace the eight screws securing the monitor bezel (see Figure 1). 22. Replace and lock the rear door. 23. Plug in and turn on the game. Casual Games | Emerging Media PM0821-01 Page 3 of 3 www.megatouch.com...
