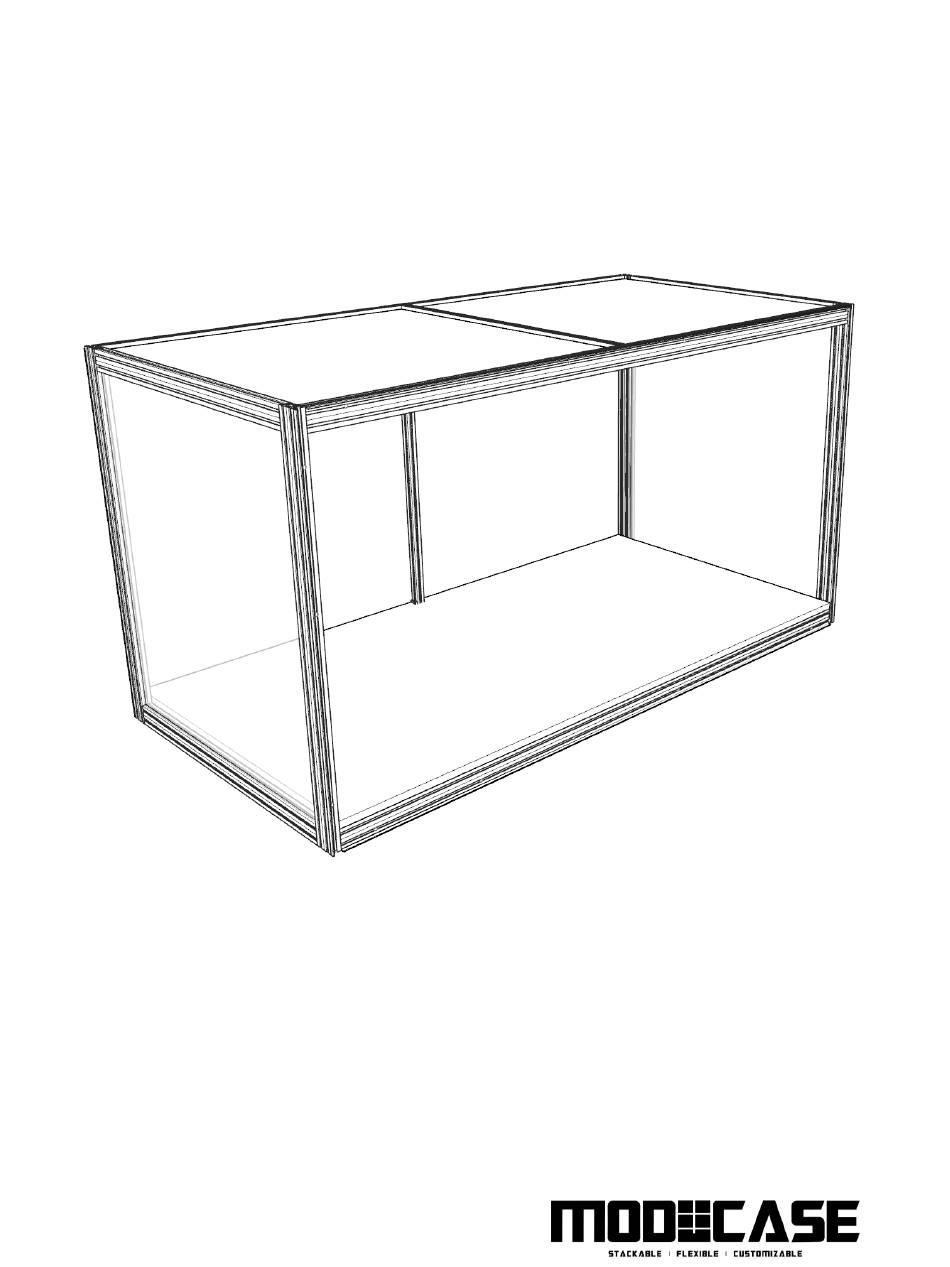

- Page 1 MAX Series MAX140/140plus...
- Page 2 MAX140 Quick overview of aluminum frame Front Frame Joints uses M5x20mm (3/4”) bolts x 29 and washers x 29...
- Page 3 MAX140PLUS Quick overview of aluminum frame *Note Bottom middle bar is longer than top middle bar Front Frame top bar is doubled piece Joints uses M5x20mm (3/4”) bolts x 29 and washers x 29...
- Page 4 *Note If you have adjoining displays, please DO NOT insert Rubber slots on the back of the front frame and Side frame bar before assembly of displays.
- Page 5 Display Frame Contents • Side frame top/bottom bar with screws (Side frame bar) x 4 units • Back frame top/bottom bar with screws at ends (Back frame top/bottom bar) x 2 units • Side frame back bar (side frame back bar) x 2 units •...
- Page 6 • Back frame middle bar (back frame middle bar) x 1unit...
- Page 7 *Orientation of bar Through hole facing sideways Slot in Top/bottom middle bar *End with screw slot in...
- Page 9 *Orientation of bar Through hole facing sideways Slot in Top/bottom middle bar *End with screw slot in...
- Page 11 *Orientation of backpanel Wire holes downwards Back panel...
- Page 13 Back panel *Rubber slot facing up...
- Page 14 Backpanel holes at top...
- Page 15 *Rubber slot facing up...
- Page 16 Top panel Top panel...
- Page 17 Side panel Side panel *Insert C-channel if you intend to have the side panel in. *Insert C-channel if you intend to have the side panel in.
- Page 19 *Insert C-channel facing the side panel, if you intend to have the side panel in. *Align screws on front frame to bars *Insert C-channel facing the side panel, if you intend to have the side panel in.
