Avea KS232DU Quick Start

www.avea.cc
RFID RS232 / RS485
DIY
Computer Based Access Control System
Computer based cost effective
solutions for access control
with Time Recorder
Quick Start:
1. For KS232D series products - connect the RS232 cable (straight through) from the
computer to the terminal block of RS232 port. (See Terminal Layout)
For KS485D series products - plug the TINY485 (buy separately) into the serial port of
the computer. Connect the TINY485 to the RS485 data bus of the reader. (See
Terminal Layout)
2. Connect a 9 to 12VDC supply to the terminal block of 9-12V 300mA.
3. Turn on the computer.
4. Download and install the Time Recorder software from
5. Save and unzip the file.
6. Execute the setup.exe program.
7. Follow the installation instruction to finish the installation.

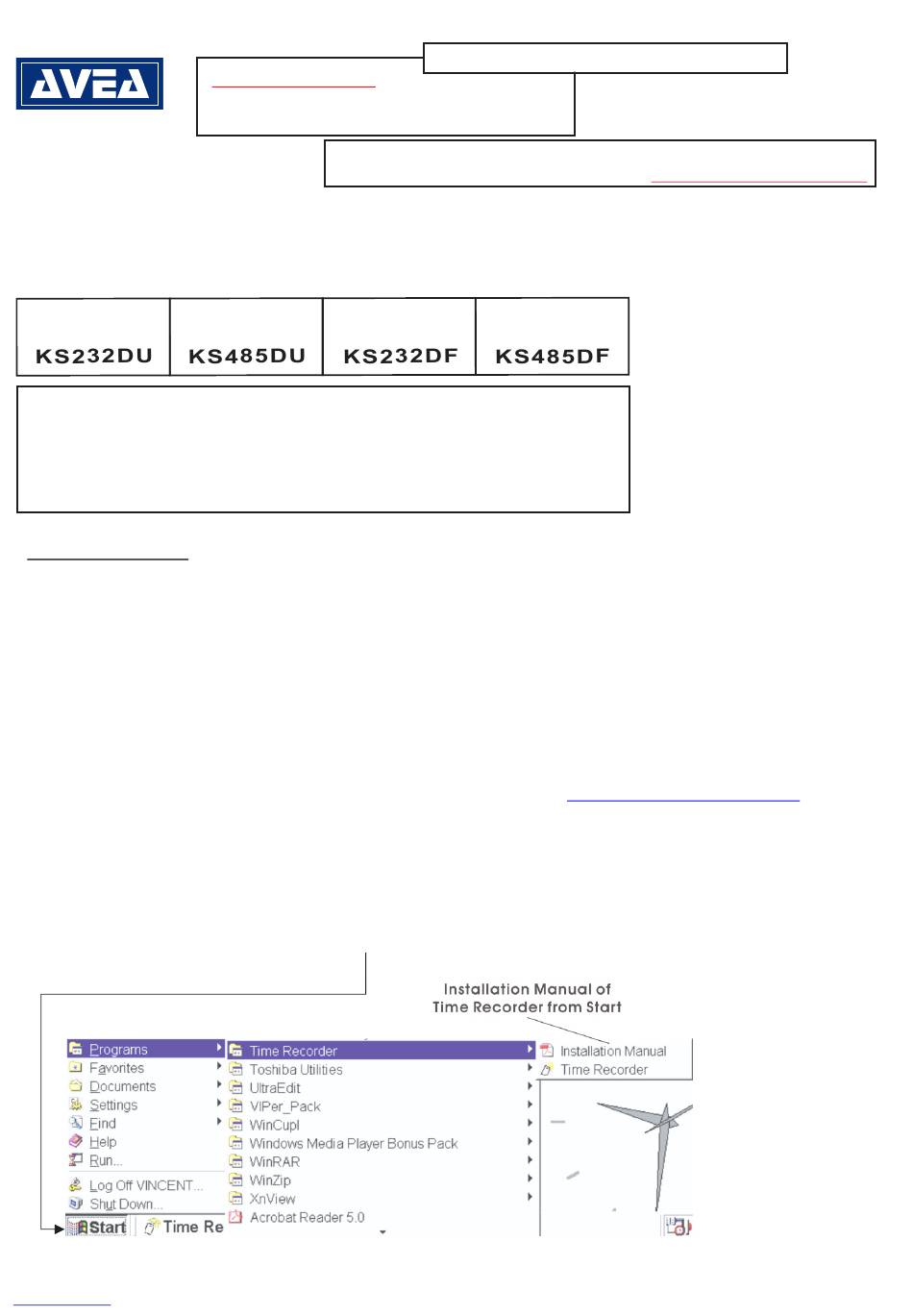

8.The detailed installation manual for the Time Recorder will be automatically installed
into your computer when you install the application software. Follow the installation
instruction to finish the installation and follow the Installation Manual of Time Recorder
Re: KS232DFU/20150930/MADE IN CHINA
www.avea.cc
Link for SETUP:
KS232DU : http://avea.cc/ks232du-setup/
KS232DF : http://avea.cc/ks232df-setup/
User manual :
Download
*** Always remember to
KS485DF : http://avea.cc/ks232df-setup/
http://avea.cc/spec/ks232dfu.pdf
Time Recorder software :
POWER OFF before plugging or unplugging wires
http://avea.cc/sw/TR.zip
http://avea.cc/sw/TR.zip
.
