Generation RF Remote Transmitters with 1
RF Motors 4285 and 4275
Pairing with RF-Motor 4285
3-inch long RF Receiver
antenna; do not
shorten the length of
this antenna!
Important:
With this RF Motor you will not be able to use a dashboard switch.
Wiring of Motor: Solid black wire goes to +12VDC and black & white stripe goes to ground (Negative on battery);
see illustration (5)
407: R-1: 02/20

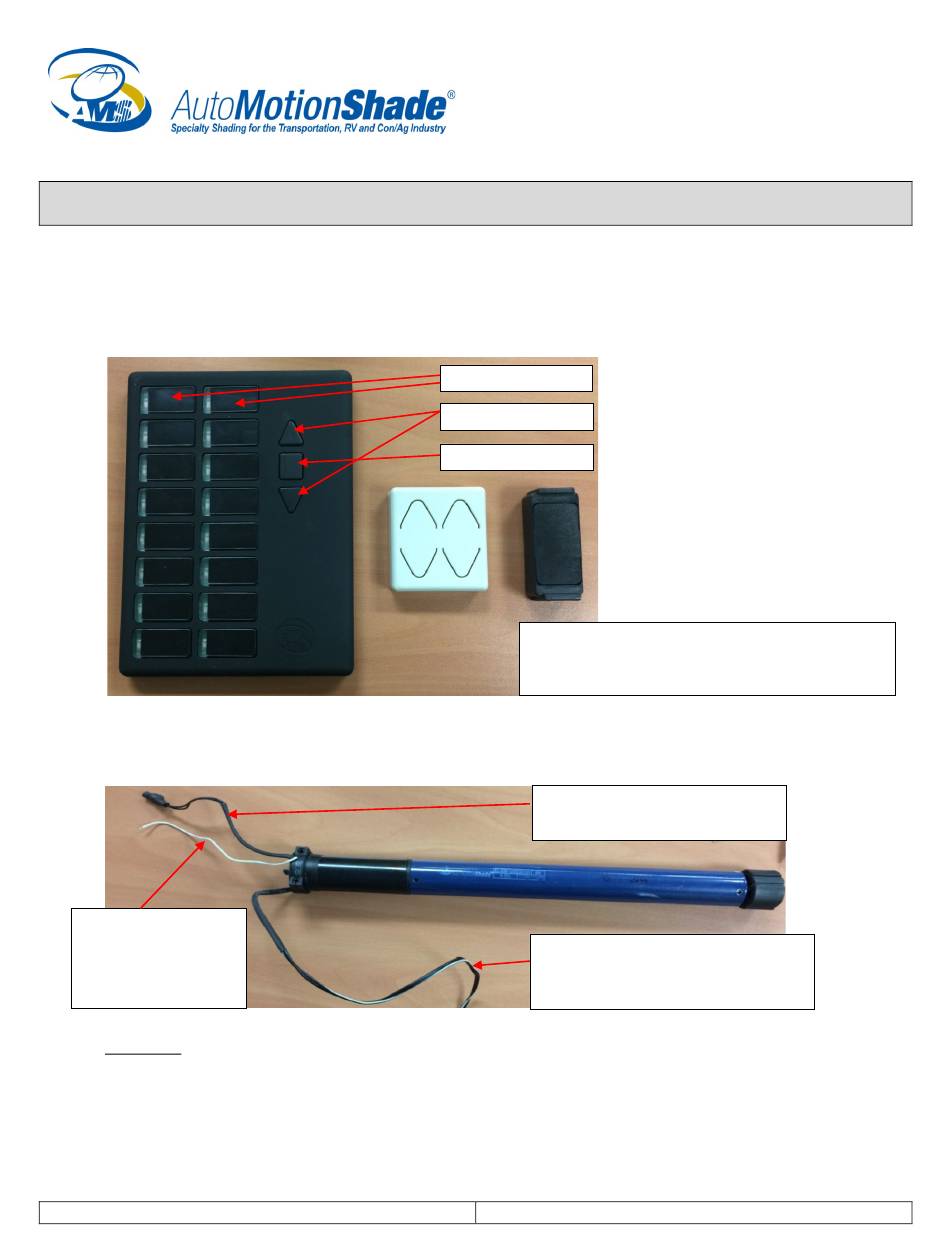

Quick Reference Guide (QRG) #8-1
Up / Down Button (2)
st
Generation
Channel Button(s) (1)
Stop Button (3)
Pictured here are the 1
as well as the 2-Channel and Single Channel RF Remote
Transmitters
Push-Button on program wire (4)
The 2 separate wires (black and black &
white) are fused together for easier
wiring (5)
Generation 16-Channel ("Wizard")
st
Effective Date: Feb 2020
Advertisement
Summary of Contents for AutoMotionShade QRG
- Page 1 Quick Reference Guide (QRG) #8-1 Pairing of 1 Generation RF Remote Transmitters with 1 Generation RF Motors 4285 and 4275 Channel Button(s) (1) Up / Down Button (2) Stop Button (3) Pictured here are the 1 Generation 16-Channel (“Wizard”) as well as the 2-Channel and Single Channel RF Remote...
- Page 2 (Pairing of 1 Generation RF Remote Transmitters with 1 Generation RF Motors 4285 and 4275) To begin, you will need to delete the old program on the motor by pressing and holding the push-button on the motor programming wire (4) until the motor jerks (back & forth); keep pressing the button until it jerks again to confirm (total two jerks).
- Page 3 Pairing with RF Ignition Lock Motor 4275 Push-Button on program wire (6) To pair 16-channel (EL-213) “Wizard” remote transmitter with Motor 4275: 1. On the Remote Transmitter, press the button of the channel that you want to pair (1). 2. Press and hold the motor push-button (6) until motor LED flashes once and then release the push-button. 3.
