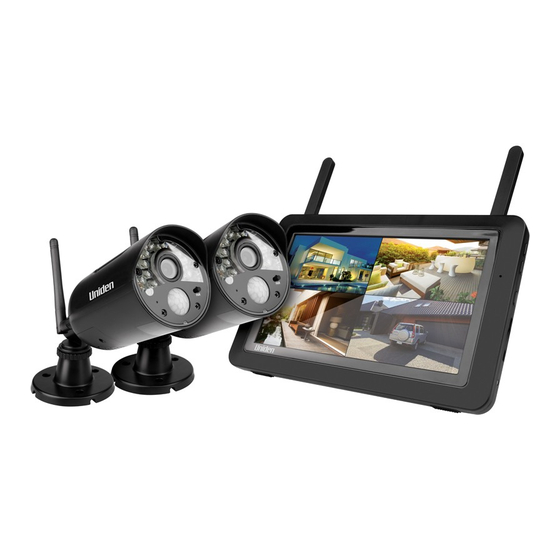

G3700/G3700L
Accessory Camera for G37xx Series
VIDEO SURVEILLANCE SYSTEMS
For more exciting new products please visit our website:
Australia: www.uniden.com.au
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G37 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uniden G37 Series

  • Page 1 G3700/G3700L Accessory Camera for G37xx Series VIDEO SURVEILLANCE SYSTEMS For more exciting new products please visit our website: Australia: www.uniden.com.au OWNER’S MANUAL...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This manual contains important information about this product’s operation. If you are installing this product for others, you must leave this manual or a copy with the end user. When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: • This equipment is NOT waterproof.
  • Page 3: Warning To Parents And Other Users

    • Clean only with a dry cloth. Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes no liability for damages to property or injury to persons caused by improper handling or failure to comply with these...
  • Page 4: What's In The Box

    • Mounting screws and anchors • Owner’s Manual If any item is missing or damaged, contact your place of purchase • immediately. Never use damaged products! Need help? Get answers at our website: • www.uniden.com.au for Australian model. BASIC OPERATION G3700 G3700L...
  • Page 5 What it is Camera Antenna: Sends and receives signals to/from the monitor. IR LEDs. Infrared LEDs provide viewing in low/ no light conditions. Camera Lens: Catches the video in front of the lens and transmits video from camera to monitor. Light Sensor: Sense brightness for changing between daytime and nighttime vision Microphone: Transmit audio to monitor.
  • Page 6 INSTALLING THE G3700 / G3700L When you are positioning the camera, bring the monitor along; it’s much easier to find the best viewing angle when you have the display handy. # The monitor’s battery will last about 1.5 hours on its own. 1. Position the camera where you want it, plug it into power, and check video on the monitor.
  • Page 7 Duration The Duration option allows you to set the length of time the light stays on after it is triggered. Options are 1, 3, or 10 minutes, or Off. Timer The Timer option lets you set a start and end time for the light camera to turn itself on and off.
  • Page 8: Specifications

    SpecificationS G3700 Camera Specifications Image Sensor 1/2.7 inch Color CMOS Image Sensor Effective Pixel Area 1920 x 1080 Image Processing Format H.264 Image Resolution / Frame 1080P up to 10fps / 720P up to 24fps Rate Lens 3.6mm F1.9 Low Light Resolution 1-8 lux Low Light Solution 16 IR LEDs, 1 low light sensor...
  • Page 9 G3700L Camera Specifications Image Sensor 1/2.7 inch Color CMOS Image Sensor Effective Pixel Area 1920 x 1080 Image Processing Format H.264 Image Resolution / Frame 1080P up to 10fps / 720P up to 24fps Rate Lens 3.6mm / F1.8 Night Vision Up to 12 meters IR cut filter Viewing Angle 92°...
  • Page 10: One-Year Limited Warranty

    (“Uniden Aust”) . terms of Warranty Uniden Aust warrants to the original retail purchaser only that the G3700 and G3700L (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.
  • Page 11 (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
  • Page 12 ©2016 Uniden Australia Pty Ltd Printed in PRC...
