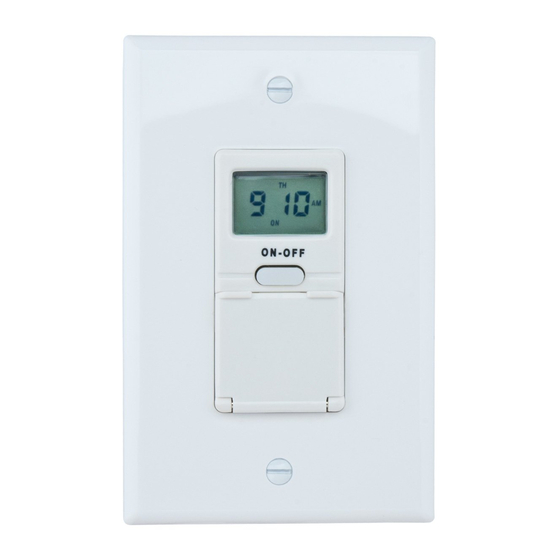

Reliance WE7000 Manual

7-day digital in-wall timer

Available languages

Download this manual

RESETTING THE TIMER

In case of an operational failure of the timer, press the RESET button to clear all settings and restart.

*Works with CFL bulbs.

*This timer has been tested to work with standard compact fluorescent (CFL) bulbs. However, it will not control a CFL bulb that specifically states

"not to be used with timer controls." If in doubt, please consult the bulb manufacturer.

SAVE THESE INSTRUCTIONS!

7-DAY DIGITAL IN-WALL TIMER

CONTENTS

ON-OFF

1 Digital In wall timer

SAFETY INFORMATION

WARNING

• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER AND TEST THAT POWER IS

OFF BEFORE WIRING.

CAUTION

Wattage of lamps or appliances controlled must NOT exceed rated capacity. FOR INDOOR USE ONLY.

General: 125 VAC, 60 Hz; 15 A, 1875W

Resistive: 125 VAC, 60 Hz; 15 A, 1875W

Tungsten (incandescent): 8 Amp, 125 VAC 1000 Watts

Ballast (fluorescent): 8 Amp, 125 VAC

Motor: 1/4 H.P., 125 VAC

Electronic Ballast: 500 VA

Cover

Mounting screws

Wire nuts

Rating:

Need help?

Do you have a question about the WE7000 and is the answer not in the manual?

Page 1 RESETTING THE TIMER In case of an operational failure of the timer, press the RESET button to clear all settings and restart. 7-DAY DIGITAL IN-WALL TIMER *Works with CFL bulbs. *This timer has been tested to work with standard compact fluorescent (CFL) bulbs. However, it will not control a CFL bulb that specifically states "not to be used with timer controls."...
Page 2 Things you should know about programming events INSTRUCTIONS You can repeat the ON and OFF programming procedures outlined above for up to 7 events, as needed. 1. Remove wall plate and disconnect existing light switch. WARNING 2. Make sure both “hot” and neutral wires are present in the While setting events, the timer may prematurely turn on the load, if you press the MODE button.
Page 3 RESTABLECER EL TEMPORIZADOR reiniciar el aparato. TEMPORIZADOR DIGITAL DE *Funciona con bombillas CFL. PARED PARA 7 DÍAS . Sin alguna duda, consulte el manual del fabricante de la bombilla.consult the bulb manufacturer. General: 125 V CA, 60 Hz; 15 A, 1875 W Carga resistiva: 125 V CA, 60 Hz;...
Page 4 INSTRUCCIONES Información importante para programar eventos Puede repetir los procedimientos de programación descritos con anterioridad para un total de 7 eventos. 1. Extraiga la placa de la pared y desconecte el interruptor de la luz. ADVERTENCIA 2. Compruebe que los cables “caliente” y neutral están en la caja de conexiones. Si estos cables no están presentes, será...
