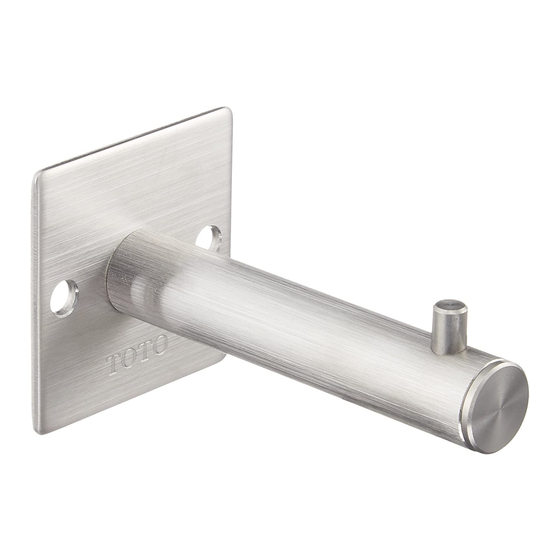

Toto YKH20R Instruction Manual

Toto YKH20R Instruction Manual

Single hook/doorstop hook/double hook

Advertisement

Single Hook/Doorstop Hook/
Double Hook
YKH20R・YKH21R・YKH21WR

Safety Precautions

Please read these "Safety Precautions" carefully before use, and use the product correctly.
● After reading, keep this instruction manual in a place where users can
read it anytime.
● This instruction manual shows various symbols to correctly and safely
use the product in order to prevent harm to you and other people, and
damage to property. The meanings of those symbols are as follows:
Symbol
When this appears next a topic, this indicates that
ignoring this symbol and mishandling the product
CAUTION
could result in injury or property damage alone.
CAUTION
Required
Prohibit
CAUTION
Do not
disassemble
Required
(Be sure to observe these instructions.)
Meaning
Caution about installation
Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30 mm or
more in thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When installing the product on a partition wall, place a reinforcing wooden block of 30 mm or
more in thickness in the tapping-screw- xing position.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When the mounting surface is a tile or concrete wall, use a commercially available plugs for
concrete, etc.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
Use the supplied wall-mounting screws (truss head tapping screw φ4 x 35) for installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
Make sure that the product has no backlash after the installation is complete.
If the product has backlash, it could come off or the wall could collapse, which could result in user's fall and
injury.
Caution about use
Do not hang from or lean on the parts of the product.
Doing so could cause the installed product to be unstable and drop, which could result in injury.
Do not hook heavy things other than luggage on it.
Doing so could cause the installed product to be unstable and drop, which could result in injury.
Do not disassemble or modify items other than those described in this manual.
Doing so could damage the product and may result in injury.
If the product has backlash during use, stop using it immediately and contact the
installation service shop, sales shop to receive inspection.
Failure to do so could cause the product to drop and a user to fall, which could lead to injury or serious
accident.
■ Request to the contractor
Please install the product correctly in accordance with the
instructions in this instruction manual.
After installation, enter your shop name and the date of
installation in the warranty, and then be sure to hand over this
instruction manual to the customer.
■ Request to the customer
Please read this instruction manual carefully and use the
product correctly.
As this instruction manual contains a warranty, please keep it
carefully.
● The following symbols are used to classify and
explain instruction that must be followed.
The
that is "Prohibited."
The symbol on the left indicates "Do
not disassemble."
The
that "Must be implemented."
The symbol on the left indicates
"Required."
1
Instruction manual
symbol indicates something
symbol indicates something
