  • Page 1 AED Trainer -PAD NF1200-T Operator’s Manual...

  • Page 2: Table Of Contents

    3. Setting up the i-PAD ······································································································ 8 Package Contents ············································································································· 8 Infrared Remote Controller (Remocon) ················································································ 9 Rescue Scenarios ············································································································ 11 Setting up the i-PAD NF1200-T ························································································· 14 4. Using the i-PAD NF1200-T ··························································································· 15 Simulated Rescue Preparation··························································································· 15 Simulated Main Rescue Sequence ····················································································· 18 5.

  • Page 3: Introduction

    The i-PAD NF1200-T is intended for use during Advanced Cardiac Life Support training, Basic Life Support training, or any other physician approved trainings that deal with the operation of an automated external defibrillator. The i-PAD NF1200-T is not intended for use during actual rescue operations as it can not deliver a defibrillating shock.

  • Page 4: Device Orientation

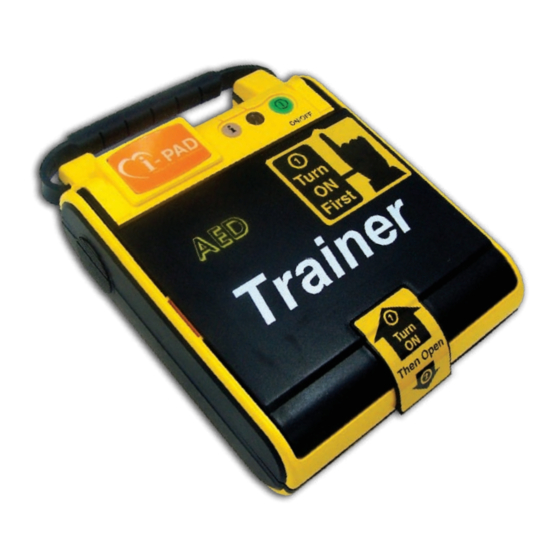

    NF1200-T 2. Device Orientation Handle i-Button State LED Remote Power control ON/OFF sensor button ON/OFF Turn Cover First Turn Then Open • Top View of the i-PAD NF1200-T with its cover closed CU Medical Systems, Inc.
  • Page 5 When no pads are attached, entering administration mode by pressing this button is disabled in this version of the i-PAD NF1200-T. Indicates the status of the i-PAD NF1200-T • blinking green: the i-PAD NF1200-T is in standby mode and ready for a rescue operation State LED •...
  • Page 6 NF1200-T An easy-grip carrying handle for increased portability of the i-PAD Handle NF1200-T. Covers the front panel of the i-PAD NF1200-T and retains the Cover defibrillator electrode pads package. Press this button when the i-PAD NF1200-T prompts you to “Press the flashing orange button now”.
  • Page 7 Operator’ s Manual Ver 1.30 For product installation and storage, be sure to refer to the following instructions and avoid damage to the product. Do not store the device in Do not store the device areas with highly fluctuating in areas that are directly temperatures.

  • Page 8: Setting Up The I-Pad

    NF1200-T 3. Setting up the i-PAD NF1200-T Package Contents The i-PAD packaging box contains the following items. i-PAD NF1200-T Operator’s Manual ON/OFF Turn First Turn Then Open Disposable, non-rechargeable Trainer Pads battery pack Rechargeable battery pack (option) Battery Charger (option) Infrared Remote Controller CU Medical Systems, Inc.

  • Page 9: Infrared Remote Controller (Remocon)

    Operator’ s Manual Ver 1.30 Infrared Remote Controller (Remocon) This enables an instructor to control the i-PAD NF1200-T from a maximum distance of 3 meters. The Remote Controller should be pointed at the remote controller sensor of the i-PAD NF1200-T when controlling its operation.
  • Page 10 NF1200-T Infrared Remote Controller Functions Function Turns the power of the i-PAD NF1200-T OFF when pressed while the POWER OFF i-PAD NF1200-T is ON. Simulates pads ON and pads OFF conditions. Toggles between the said two conditions when pressed (i.e. if the pads are ON, turns OFF the pads when pressed;...

  • Page 11: Rescue Scenarios

    Operator’ s Manual Ver 1.30 Rescue Scenarios Scenario Number Scenario a. Shockable rhythm b. Shock delivery c. CPR administration (30 chest compressions, 2 artificial breaths) d. Normal Sinus Rhythm e. CPR administration (30 chest compressions, 2 artificial breaths) a. Normal Sinus Rhythm b.
  • Page 12 NF1200-T Rescue Scenarios, continued Scenario Number Scenario a. Shockable rhythm b. Shock delivery c. CPR administration (30 chest compressions, 2 artificial breaths) d. Steps a to c looped continuously a. Shockable rhythm b. First Shock delivery c. CPR administration (30 chest compressions, 2 artificial breaths) d.
  • Page 13 Operator’ s Manual Ver 1.30 Rescue Scenarios, continued Scenario Number Scenario a. Shockable rhythm b. First Shock delivery c. CPR administration (30 chest compressions, 2 artificial breaths) d. Shockable rhythm e. Second shock delivery f. CPR administration (30 chest compressions, 2 artificial breaths) g.

  • Page 14: Setting Up The I-Pad Nf1200-T

    ① Upon opening the packaging box, verify that it contains all the items listed in the packing list. ② Familiarize yourself with the controls and features of the i-PAD NF1200-T. Study the functions of the buttons, switches, indicators, and connection ports.

  • Page 15: Using The I-Pad Nf1200-T

    1. Open the cover of the i-PAD NF1200-T 2. Press the ON/OFF button to turn the i-PAD NF1200-T ON The i-PAD NF1200-T activates the following Indicators and Voice Prompt, in sequence: • State LED: turns solid blue • Beeper: emits a short continuous beep •...
  • Page 16 NF1200-T 3. Remove the clothing of the patient simulator (manikin) CAUTION To the training instructor: Emphasize the following caution to the trainee. Do not waste time in removing the patient simulator’s clothing. If necessary, rip off or cut off the patient simulator’s clothing.
  • Page 17 Operator’ s Manual Ver 1.30 6. Plug the connector of the pads into the AED electrode pads connector port of the i-PAD NF1200-T 7. Look at the graphics on the back of the pads. The graphics indicate the positions of the pads on the patient’s body.

  • Page 18: Simulated Main Rescue Sequence

    ON/OFF button runs scenario 1 by default. STEP 2: Press the SHOCK button if instructed The i-PAD NF1200-T begins rhythm analysis simulation as soon as the training instructor presses the PAD ON/OFF button or any scenario button from S1 to S8.
  • Page 19 • If you press the SHOCK button, the i-PAD NF1200-T delivers a simulated defibrillating shock. It informs you of the shock delivery with the voice prompt: “Shock delivered” • If you do not press the SHOCK button within 15 seconds, the i-PAD NF1200-T disarms itself and proceeds to CPR Guidance.
  • Page 20 NF1200-T STEP 3: Perform CPR The i-PAD NF1200-T directs you to do CPR after delivering one shock or if the ECG rhythm is not shockable, after rhythm analysis. Indicators and Voice Prompts • Graphical Rescue Guide: lights up the third step of the rescue operation.
  • Page 21 Provider Mode • Voice Prompt: “Check pulse” • Beeper: 1 second continuous beep • i-PAD NF1200-T pauses for 10 seconds to allow the trainee to check the pulse of the simulated patient. • Voice Prompt: “Begin CPR, now” (ECG Rhythm is Asystole) “If no pulse, begin CPR”...
  • Page 22 NF1200-T CPR Guidance The i-PAD NF1200-T gives guidance in the form of prompts and beat rhythm during CPR. Following is the description of the guidance sequence. Step Description Your Action(s) Voice Prompt: • Place your hands, one on top of another on the...

  • Page 23: Servicing The I-Pad Nf1200-T

    Operator’ s Manual Ver 1.30 5. Servicing the i-PAD NF1200-T Warranty • This device is warranted by CU Medical Systems, Inc. against defects in materials and workmanship for two full years from the date of original purchase. During the warranty period, we will repair or, at our option, replace at no charge a product that proves to be defective, provided you return the product, shipping prepaid, to CU Medical Systems, Inc.

  • Page 24: Service

    • The i-PAD NF1200-T must be serviced only by authorized personnel. Unauthorized servicing during the warranty period renders the warranty null and void. • The i-PAD NF1200-T will be serviced free of charge during the warranty period. After the warranty period, the cost of material and service shall be shouldered by the user.

  • Page 25: How To Contact Us

    Operator’ s Manual Ver 1.30 How to Contact Us CU Medical Systems, Inc. Product and Order Inquiries: Overseas Sales Department CU Medical Systems, Inc. 5F, Cheonggye Plaza, 991-4, Cheonggye, Uiwang, Gyeonggi, Republic of Korea Tel: +82 31 421 9700 Fax: +82 31 421 9911 Service Request and Technical Support Customer Service Team CU Medical Systems, Inc.
  • Page 26 AED Trainer NF1200-T -PAD Dongwha Medical Instrument Complex 1647-1 Dongwha, Munmak, Wonju, Gangwon, Republic of Korea Tel : +82-33-747-7657 Fax : +82-33-747-7659 Homepage : www.cu911.com...
