Page 1

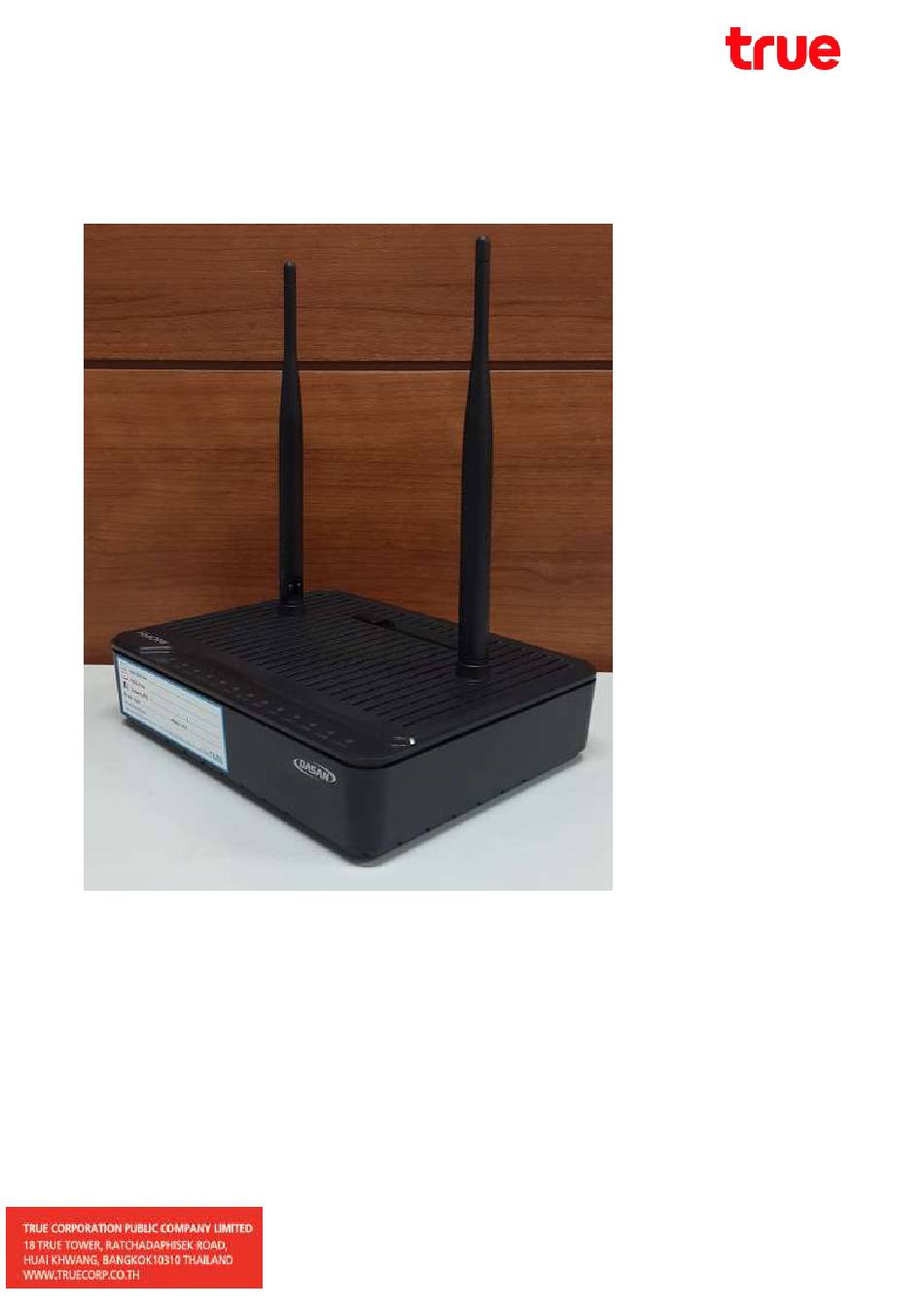

Pictures and details of DASAN H660RW DASAN H660RW...
Page 2
Front Back 1) CATV: port for RG6 cable to CATV receiver 2) TEL: port for telephone line for those with Fixed Line Plus service 3) LAN 1-4: port for LAN cable to RJ45 4) 12V=1.5A: port for electricity to Router...
Page 4
At the bottom: Optical cable Port On the left: no button...
Page 5
On the right RESET: if press and hold it for 10 seconds, it will Reset device to factory settings WPS: a button for connecting WPS WLAN: a button to turn on-off Wi-Fi DASAN H660RW LED status...
Page 6
Contents in a box Router DASAN Adapter 1 LAN cable User manual...
Page 7
Connect DASAN H660RW to AP Humax Quantum T3A True has disabled Wireless function of DASAN H660RW, so it needs to use AP Humax Quantum T3A to connect Wi-Fi by connecting LAN cable from DASAN H660RW to Internet port on AP Humax Quantum T3A...
