ACT 433RX Quick Start Manual

The ACT 433RX Receiver Reader is a 433.92MHz radio device reader. The ACT 433RX readers can be used
with the ACT433 family of transmitters. The receiver will operate from a few metres up to 50 metres
depending on environmental conditions. It is rated for IP67 and can be surface or flush mounted.
It supports Clock and Data and Wiegand formats. Two ACT 433RX Readers can be controlled by a single
transmitter. Set the dipswitch on one receiver to enable the LEFT button only. Set the dipswitch on the
second receiver for the RIGHT buttton only.

Technical Specifications

Operating frequency
Modulation
Supply
Current consumption
Operating temperature
Overall dimension
Weight
ON
1 2 3 4
All Dipswitches normally ON (Up).
DIP ON
1 Clock and Data
2 Left Button Enabled
3 Right Button Enabled
4 Not Used
Phone: +353 1 466 2570. Fax: +353 1 452 0427. UK LoCall 0845 300 5204 E-mail: sales@accesscontrol.ie Web: www.accesscontrol.ie
All manuals and user guides at all-guides.com
ACT 433RX Receiver Reader
433.92MHz
FSK
5V - 12 V DC
60mA
-20°C to +70°C
109 x 100 x 24 mm
106 gr.
Maximum Distance from Reader to Controller is
30metres at +5V and 100metres at +12V.
OFF
Wiegand
Left Button Disabled
Right Button Disabled
Not Used
Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland.
Once power is applied to the ACTpro 433 Receiver
the front LED illuminates RED. When a button is
pressed on the transmitter the LED illuminates GREEN.
The unique tranmitter number is sent to the controller
whereupon access is granted or denied.

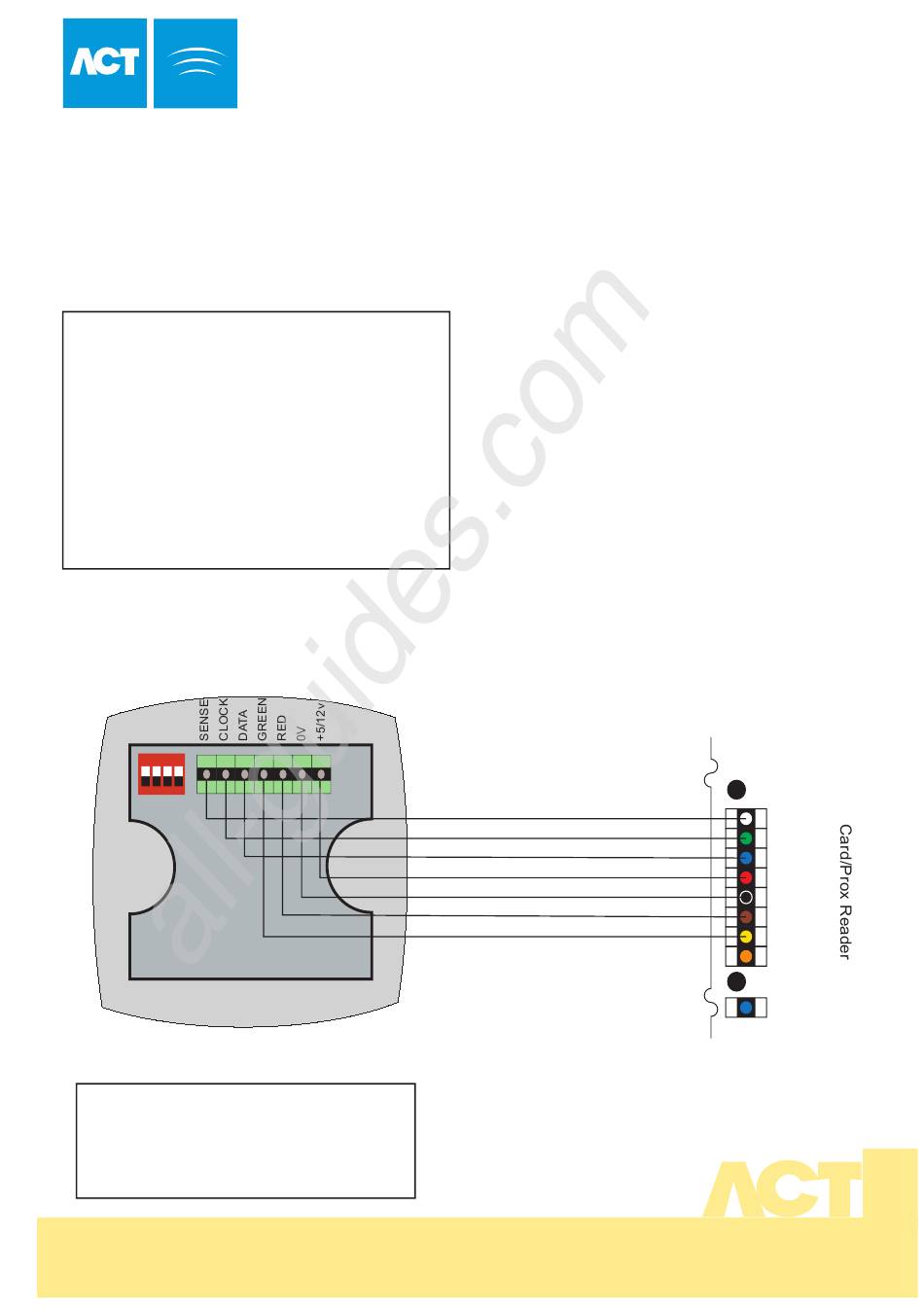

The ACT 433RX Receiver may be connected to any of
the ACTpro range of controllers as well as ACTSmart2
1080 and ACTSmart2 1090.
ACTpro Controller
SENSE
CLOCK
DATA
+5V
0V
RED
GREEN
18-00053 Issue 2
