Summary of Contents for Westward 4UZY9

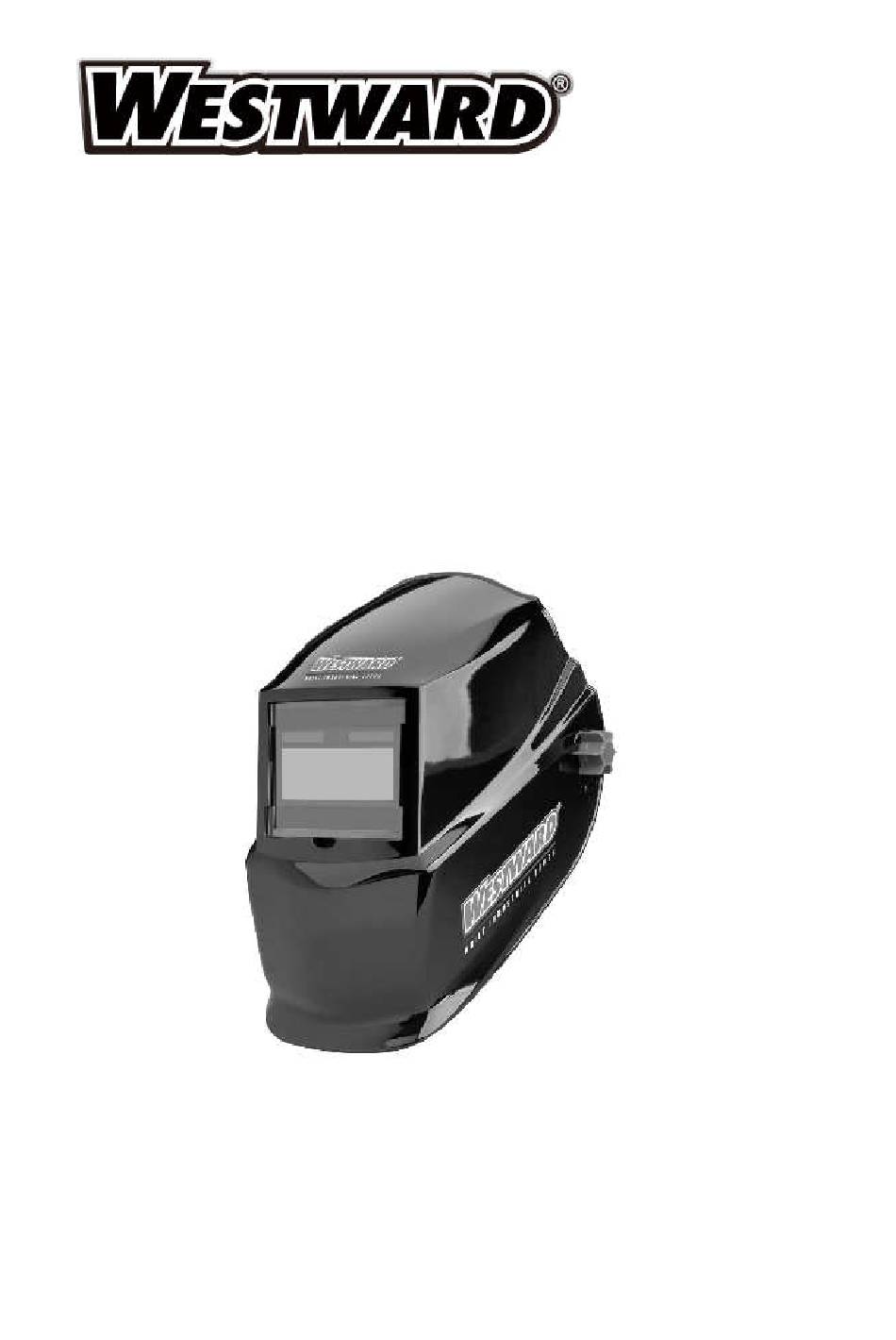

- Page 1 Auto Darkening Welding Helmet Model: 4UZY9 TEC497 Printed in China 09/09...
- Page 2 Auto-Darkening welding helmets are designed to protect the eyes and face from sparks, spatter and harmful radiation under normal welding conditions. Auto-Darkening filter models automatically change from a light state to a dark state when an arc is struck, and it returns to the light state when welding stops.
- Page 3 INSTRUCTIONS FOR USE WARNING! Before using the helmet for welding, ensure that you have read and understood the safety instructions. Before First Use 1) The Auto-Darkening Welding Helmet needs to be charged prior to use and after extended storage. Leave the solar panel on the helmet facing the sun or bulb light for at least 1 hours before first use.
- Page 4 ADJUSTING VIEW ANGLE There are 5 holes on both side of the helmet (see Fig.2). You can change view angle position by moving the adjustable limitation washer into different holes. MAINTENANCE NOTE: SMAW – Shielded Metal Arc Welding MIG (Heavy) – MIG on Heavy Metals SAW –...
- Page 5 Poor vision Front/inside cover lens and/or the filter are dirty. (Clean or change lens). There is insufficient ambient light. Welding helmet slips Headband is not properly adjusted. (Readjust the headband). WARNING The user must stop using the auto-darkening welding helmet immediately if the above-mentioned problems cannot be corrected.
- Page 6 24 hours a day – 365 days a year Please provide the following: - Model Number - Serial Number (if any) - Part description and number as shown on parts list Figure – Repair Parts Illustration for Model(s) 4UZY9 Repair Parts List Reference Number Description Part Number Qty.
- Page 7 TECHNICAL SPECIFICATIONS...
- Page 8 Manufactured for Grainger International, Inc. 100 Grainger Pkwy., Lake Forest IL 60045 U.S.A.
